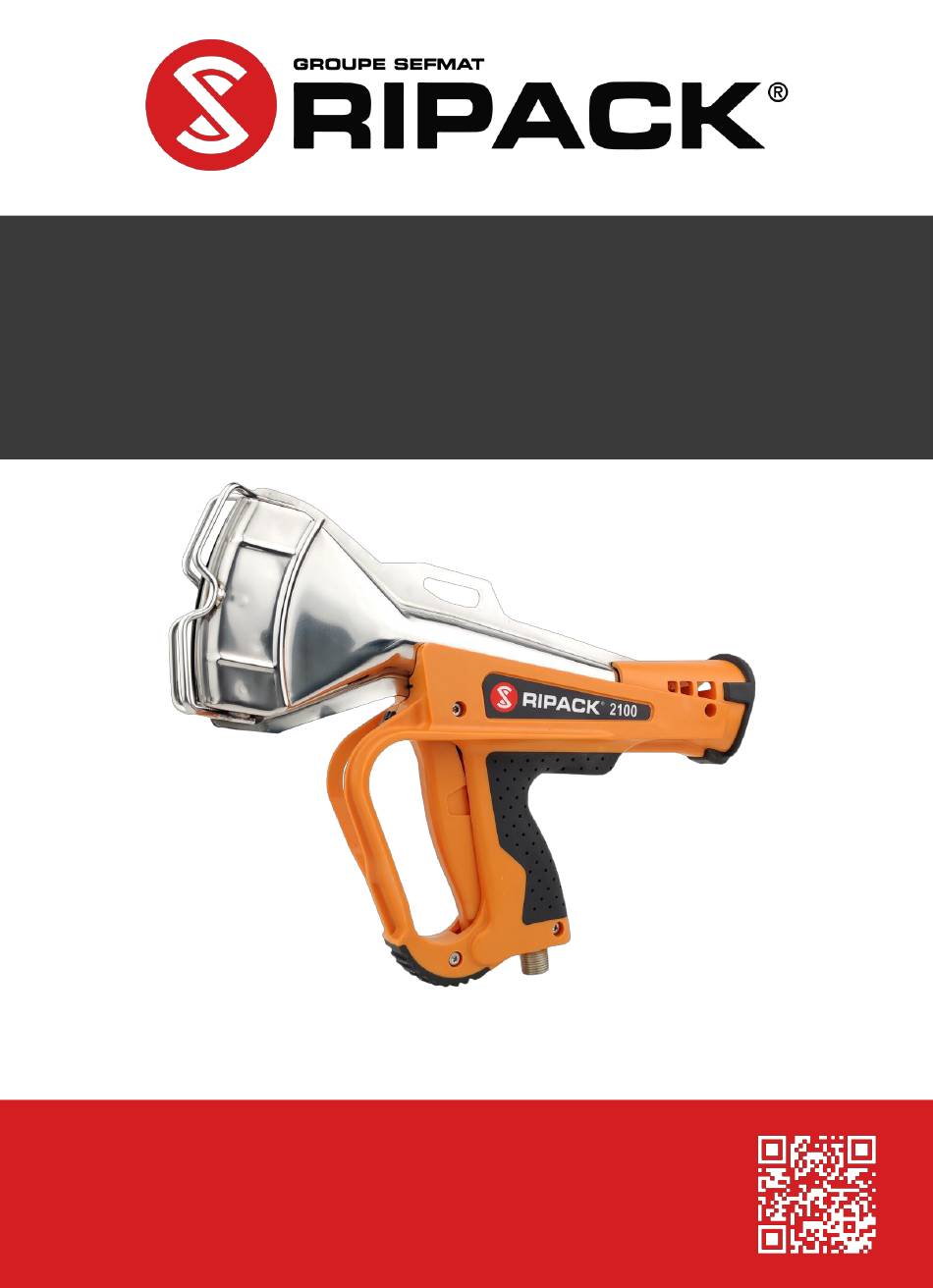

- Page 1 USER’S GUIDE RIPACK 2100 YOUR PROTECTION BY EXCELLENCE REGISTER YOUR PRODUCT ONLINE WARRANTY CONTRACT RIPACK.COM/EN/REGISTER-A-PRODUCT...
- Page 2 RIPACK® ACCESSORIES GAS CYLINDER CART Very practical transport your bottle effortlessly, the cart also improves safety in the workplace. The mobility of gas cylinders in your warehouse is recommended by your insurer. The gas hose of your Ripack shrink gun is also protected against possible damage with its exit flexible guide...
- Page 3 RIPACK ACCESSORIES MULTICOVER FILM SEALERS The Multicover sealers allow to make pallet covers and bags from rolls of shrink-film when required and in any size. Make savings by avoiding useless stock of various heights and sizes. MULTICOVER 955 Ripack Heat Gun Sealing MULTICOVER 960 Electrical impulse sealing 2nd reel in option...
- Page 4 TOOL BAG CONTENT User’s guide Securipack memo pressure regulator Wrench Swivel 8 m gas connector hose...
- Page 5 Ripack 2100 HAND-HELD PROPANE-FIRED SHRINK GUN FOR SHRINK-WRAPPING PLASTIC FILMS USER’S GUIDE...
-
Page 6: Table Of Contents
CONTENTS WARNINGS............7 OPERATIONS.............12 CONNECTIONS..........13 SPARE PARTS.............15 EXAMPLE OF USE..........16 MAINTENANCE..........18 WARRANTY............23 EXPLODED VIEW..........24 SPARE PARTS LIST..........26 DECLARATION OF CONFORMITY ………………...27... -
Page 7: Warnings
WARNINGS TO BE READ BEFORE STARTING FOR THE FIRST TIME Do not use this device in regulated areas with specific fire or explosion hazards. Do not use the device to shrink the plastic lm on a oor made of combustible material (wood, plastic, etc...). Delineate a working area such that the tip of the thermal lance is always at least more than 1,5 m inside this area and prohibit access to unauthorised individuals. - Page 8 This appliance is meant exclusively for professional use and for shrinking plastic films. Users of the Ripack 2100 shrink gun must read this user ’s guide completely and must be trained for the applications that require the use of this appliance.
- Page 9 In operation, the appliance creates a danger zone up to 0,9 metres (3 feet) in front of the fire nozzle. We draw the attention of operators to the fact that within the danger zone, there is a possible risk of burning for persons and animals, and goods can be damaged or catch fire.
- Page 10 The RIPACK 2100 propane works with propane according to the principle of atmospheric air burners induced at high speed (diagram B). Ignition is performed using a piezoelectric lighter that is activated simultaneously with the release of gas activated by the trigger, which is the sole operating mechanism.
- Page 11 PROPANE GAS APPLIANCE TECHNICAL CHARACTERISTICS : SI SYSTEM Pressure (bar) 2,5 bar Power (kW) 40 kW Consumption (kg/h) 2,6 kg/h Air intake (m3/h) 36 m3/h CO emission vol % 0,001% CO2 emission vol % Noise level < 85 dbA Length 36 cm Weight 955 g...
-
Page 12: Operations
LIQUID PROPANE GAS BOTTLE ON ITS SIDE (E.g Fuel forklift truck) The Ripack 2100 works with PROPANE gas in gas phase, contained in bottles of different capacities. Use the largest possible bottles available. Always connect and disconnect the bottles a long way from any flames and ignition points. -
Page 13: Connections
CONNECTIONS Before connecting the SECURIPACK to the gas bottle, make sure the sealing gasket is positioned correctly for systems using this type of joint. In other cases, make sure the fitting is clean. - Page 14 TIGHTNESS Use a bubble spray or some soapy water to check that there are no leaks in the parts that have been screwed together (bottle, hose and gun connections). IGNITING THE RIPACK 2100...
-
Page 15: Spare Parts
HOSE BY PRESSING THE TRIGGER. SPARE PARTS THE COMPANY RIPACK SHALL NOT BE HELD LIABLE IN THE EVENT THAT THE GUN IS DISMANTLED. Contact your dealer if the RIPACK 2100 needs to be dismantled. Only the procedures described in the maintenance chapter are authorised. -
Page 16: Example Of Use
EXAMPLES OF USE SHRINK-WRAPPING A LOADED PALLET Ask your film supplier for the operating instructions. The pallet must be lifted so that the four corners are accessible: the purpose of this is to allow the film to be shrunk under the pallet and so ensure very strong cohesion between the pallet and the load it supports. - Page 17 When you have stopped applying heat with the gun, the plastic film, because of its make-up, will continue to shrink for some time. This time will vary depending on the quality, the thickness and the type of load that has been wrapped. It is recommended therefore that you wait until the cover has cooled off and everything is tight before moving the pallet.
-
Page 18: Maintenance
MAINTENANCE MALFUNCTION DIAGNOSIS : NO GAS COMING OUT OF YOUR RIPACK 2100 Open the faucet by 90° CYLINDER VALVE CLOSED Open the faucet by 90°. TOO HIGH FLOW RATE (The internal CLOSE THE VALVE safety of the gas cylinder can shut... - Page 19 MALFUNCTION DIAGNOSIS : DIFFICULTIES IN IGNITION OF YOUR RIPACK 2100 PIEZO USED PIEZO LOSES ELECTRICAL PROPERTIES WITH EACH SOLICITATION. SPARE PIEZO REFERENCE: 131003...
- Page 20 MALFUNCTION DIAGNOSIS : DIFFICULTIES IN IGNITION OF YOUR RIPACK 2100 THE GAS FLOW RA TE IS ABNORMALLY REDUCED (short and weak flame) The ignition is not easy to do. The swivel is equipped with a grid filter . This can be blocked by the...
- Page 21 MALFUNCTION DIAGNOSIS : NO GAS CUT-OFF AFTER RELEASING THE TRIGGER When the trigger is released, the combustion nozzle should shut off instantly. Otherwise : Open the trigger. Lubricate the piston of the dust-contaminated valve. In case of repeated blockage, have the valve changed by your authorized Ripack dealer .
- Page 22 CHECKING THE RIPACK EVERY DAY before starting work: 1. Check the good condition hose along its entire length and at the connections. We recommend replacing it in the following cases: When the visual inspection has detected injuries (cuts), even superficial ones Every 3 years for intensive use At least every 5 years after commissioning Note: The date on the hose is the date of manufacture.
-
Page 23: Warranty
The purpose of this warranty is to ensure the proper functioning of the Ripack 2100 gun that has suffered an internal breakdown. In order to assert his rights, the user of the Ripack 2100 gun must inform RIPACK®, in writing to the following address info@sefmat.com, of t he existence of the defects within a... - Page 25 CHECK YOUR PRESSURE REGULATOR NUMBER 131196 131199 131197 USBS 131198...
-
Page 26: Spare Parts List
Screw CHc M4x35 152153 Bumpers set 231173 Complete set combustion nozzle (spark plug+contact+spacers) 231224 Aluminium tube and jet / Ripack 2100 231230 Pawl & Spring - Trigger lock 233419 Gas tap 248113 Rubber Hose, 8 m with connections 3/8L (int Ø 6) -
Page 27: Declaration Of Conformity
CE - KONFORMITÄTSERKLÄRUNG Le fabricant soussigné : The manufacturer undersigned : Der unterzeichnete Hersteller: SEFMAT S.A.S, 7 RUE DE BETNOMS, 33185 LE HAILLAN, FRANCE Déclare que l’appareil : Hereby declares that the appliance : Erklärt hiermit, dass das Gerät : RIPACK 2100 destiné...
