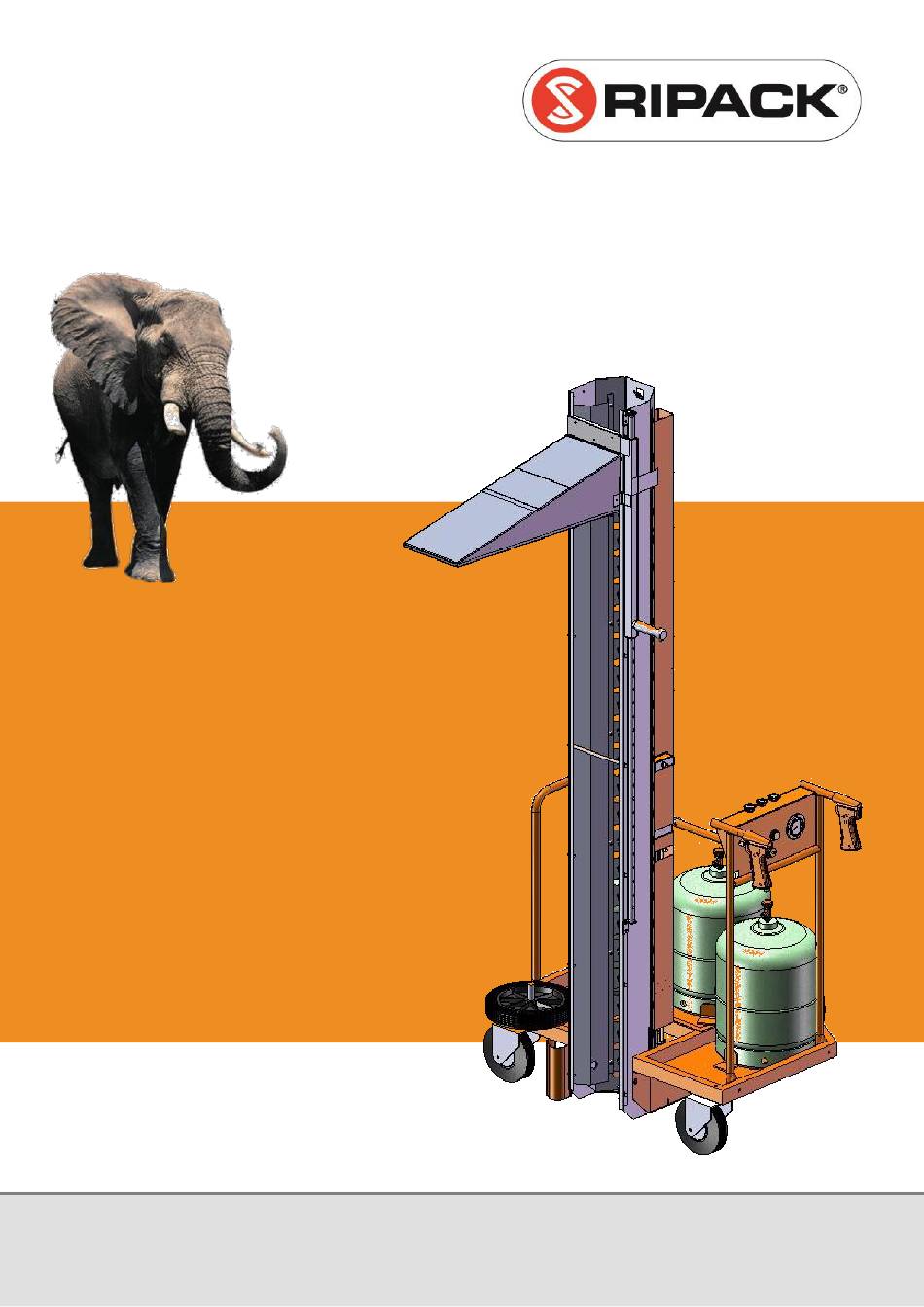

- Page 1 ® TURBOPACK Instructions Manual www.ripack.com...
-
Page 3: Table Of Contents
- 1 - ® TURBOPACK Mobile Shrink Column Instructions Manual Warranty ............2 Warnings ............3 Technical characteristics ........6 Assembly and preliminary tests ......7 Operating instructions ........10 Maintenance ............ 13 Spare parts list..........18 ® TURBOPACK is a product of SEFMAT Group – 33185 France... -
Page 4: Warranty
Ignition wire Hoses ® Any replacement part must be an original TURBOPACK part. The manufacturer declines any and all liability and any claim in recourse in the event of non-compliance with the preceding instructions and provisions. The Sefmat Company cannot be held liable for accidents caused to people or property. -
Page 5: Warnings
® e. When working in these locations, keep TURBOPACK moving in a back-and-forth motion. Lingering or pausing in one spot could ignite the panel or the material behind it.”... - Page 6 CAUTION: After burning of the flame, a burning risk exists until cooling of the head column. ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 7 ® The TURBOPACK works with propane. Ignition is performed using a piezoelectric igniter. The TURBOPACK is incorporating several safety mechanisms: A safety valve system cuts off the gas supply in the event that the hose breaks or tears. An automatic safety device (so-called dead man's switch) cuts the sup- ...
-
Page 8: Technical Characteristics
100 x 110 cm (39 x 43") Width of passage around the pallet 140 cm (55") GAS USED PROPANE in 30 lbs cylinders OPERATING PRESSURE 2 to 3 bar ® TURBOPACK is a product of SEFMAT Group – 33185 France... -
Page 9: Assembly And Preliminary Tests
D. Engage the screw E in the housing F of the rigidity tube. Fit the fan washer and a nut, without tightening, so that the screw E can move freely. ® TURBOPACK is a product of SEFMAT Group – 33185 France... - Page 10 Check that the seals are in place before assembly. Position the cylinder taps to prevent unnecessary kinking of the hoses. Connect the 2 (or 3) safety valves to the control panel distributor using the flexible hoses supplied with the machine. ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 11 19. Release the trigger. As soon as the trigger is released, the safety catch is repositioned. To re-ignite the column, proceed as indicated in # 17. 20. Refit the housing C on the lower part of the column. ® Your TURBOPACK is now ready to operate. ® TURBOPACK...
-
Page 12: Operating Instructions
The pallet should be raised so that the four corner blocks are free, to enable the film to be shrunk under the pallet and its load. An accessory is available in the RIPACK range to hold the raised pallet: the CALPACK (Consult your dealer). - Page 13 The same movement is to be repeated at each corner. One single round is enough to complete the total shrinking. ® It is recommended to operate TURBOPACK around the pallet once or twice without lighting the column in order to get used to the handling of the appliance (especially for 90 °...
- Page 14 Do not touch the film recently heated. Keep a strict supervision during 2 hours after the shrink- wrapping operation. ® TURBOPACK is a product of SEFMAT Group – 33185 France...
-
Page 15: Maintenance
- 13 - MAINTENANCE ® To get the best out of your TURBOPACK Trouble Cause Remedies Re-prime the safety valves No gas input Check that the loads in the cylinders are The burners fail to more or less equal... - Page 16 2. Remove the half-handle, taking due note of the arrangement of the parts inside. 3. Remove and replace the gas tap set. 4. Remount the half-handle and tighten all screws. Gas Tap Set (art. code 248194) screws Trigger pin ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 17 3. Dip them in petrol; brush the inside to remove all possible residues. Dry them with compressed air. 4. Remount the burners. 5. Check the right alignment of the wave tube 12 for the axial burners. ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 18 2. Disconnect the spark plug wire by pulling the lug on the back of the piezo. 3. Unscrew the metal sheet nut on the rear and remove the piezo. ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 19 5. Connect the spark plug wire. 6. Reassemble the rear casing plate with its original screws and check ® the ignition of the TURBOPACK by lighting the column according to the instructions for use. REPAIRS AND SUPPLY OF SPARE PARTS SHALL BE MADE ONLY BY THE MANUFACTURER OR ONE OF ITS REPRESENTATIVE.
-
Page 20: Spare Parts List
Mesh filter Ø 7 mm (Stainless steel for gas tap and 136004 burner) 139027 Propane gas jet Ø 48/100 140006 Valve obturation seal 143001 Manometer 143003 Jet bearer connector ® TURBOPACK is a product of SEFMAT Group – 33185 France... - Page 21 233209 Bottom Lateral Burner Ø 25 mm 233212 Ignition Bottom Burner Ø 25mm 233214 Top End Burner Ø 25mm 233394 Special wrench for Jet screwing/unscrewing 234016 Adjustable pressure regulator ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 22 Flexible pipe Ø 6 mm 0.65 M - Column Supply 246030 Complete Handle Set for optional heat deflector 248106 Connection of pressure regulator-control handle 248194 Gas tap set with tube and connection ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 23 - 21 - ® TURBOPACK is a product of SEFMAT Group – 33185 France...
- Page 24 The manufacturer undersigned: SEFMAT S.A.S., 7 rue de Betnoms, 33185 LE HAILLAN, France Hereby declares that the product: ® TURBOPACK designed to produce a flame produced by the combustion of gas Is in accordance with the directive 2006/42/EC of the European parliament and of the council of 17 May 2006 on machinery.
