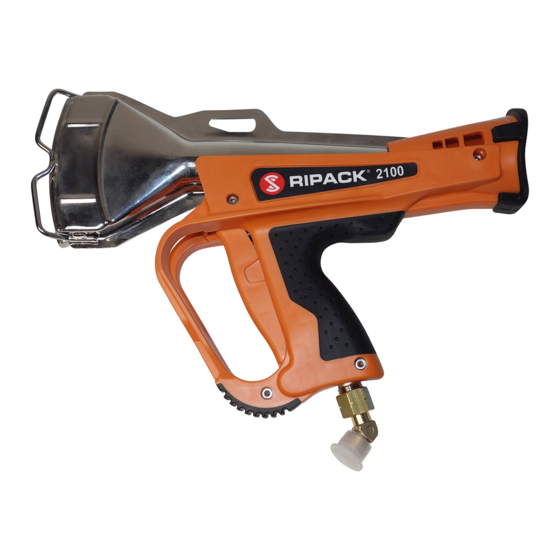

  • Page 6 RIPACK 2100 HAND-HELD PROPANE-FIRED SHRINK GUN FOR SHRINK-WRAPPING PLASTIC FILMS USER’S GUIDE RIPACK 2100 IS A PRODUCT OF RIPACK FRANCE.
  • Page 7: Table Of Contents

    CONTENTS WARNINGS......8 OPERATIONS......13 CONNECTIONS.....14 SPARE PARTS.......17 EXAMPLES OF USE....20 MAINTENANCE....23 WARRANTY......25 EXPLODED VIEW....27 SPARE PARTS LIST .....29...
  • Page 8: Warnings

    WARNINGS TO BE READ BEFORE STARTING FOR THE FIRST TIME Do not use this device in regulated areas with specific fire or explosion hazards. Do not use the device to shrink the plastic lm on a oor made of combustible material (wood, plastic, etc...). Delineate a working area such that the tip of the thermal lance is always at least more than 1,5 m inside this area and prohibit access to unauthorised individuals.
  • Page 9 Users of the Ripack 2100 shrink gun must read this user ’s guide com- pletely and must be trained for the applications that require the use of this appliance. This user’s guide must be kept for future reference. Do not use this appliance for shrinking plastic film on materials, subs-...
  • Page 10 This appliance, like all other gas appliances, consumes air and produces combustion fumes that contain CO2 and CO. Exposure to high concentrations of the latter gas is lethal. Make sure there is sufficient ventilation in accordance with the amount of time the appliance is used (see «Technical Characteristics»). We recommend that the appliance be used in a room without specific pollution which has a minimum volume of 16 m³...
  • Page 11 The safety distance, the duration of exposure and the adjustment of the appliance for the different materials being handled, depend on the instructions provided by the manufacturer of the materials in question. Always contact your RIPACK distributor for all maintenance work and spare parts.
  • Page 12 The RIPACK 2100 propane works with propane according to the prin- ciple of atmospheric air burners induced at high speed (diagram B). Ignition is performed using a piezoelectric lighter that is activated simul- taneously with the release of gas activated by the trigger, which is the sole operating mechanism.
  • Page 13 PROPANE GAS APPLIANCE TECHNICAL CHARACTERISTICS: SI SYSTEM Pressure (bar) 40 kW Power (kW) Consumption (kg/h) Air intake (m3/h) CO emission vol % 0,001 CO2 emission vol % Noise level < 85 dbA Length 36 cm 37,5 cm 955 g Weight Energy source Propane gas ANGLO-SAXON SYSTEM...
  • Page 14: Operations

    FORBIDDEN WITH ALL USES LIQUID PROPANE GAS BOTTLE ON ITS SIDE (E.g Fuel forklift truck) The Ripack 2100 works with PROPANE gas in gas phase, contained in bottles of different ca- pacities. Use the largest possible bottles available. Always connect and disconnect the bottles a long way from any flames and ignition points.
  • Page 15: Connections

    CONNECTIONS Before connecting the SECURI- PACK to the gas bottle, make sure the sealing gasket is positioned cor- rectly for systems using this type of joint. In other cases, make sure the fitting is clean.
  • Page 16 TIGHTNESS Use a bubble spray or some soapy water to check that there are no leaks in the parts that have been screwed together (bottle, hose and gun connections). IGNITING THE RIPACK 2100...
  • Page 17 NEVER WORK WHILE HOLDING THE RED BUTTON. The SECURIPACK automati- cally cuts off the supply of gas if the pressure drops below the minimum level necessary for the normal ef ficiency of the work. This is the case when: • The bottle is nearly empty (the gun can only be used for a few more minutes at reduced power: change the bottle);...
  • Page 18: Spare Parts

    SPARE PARTS THE COMPANY RIPACK SHALL NOT BE HELD LIABLE IN THE EVENT THAT THE GUN IS DISMANTLED. Contact your dealer if the RIPACK 2100 needs to be dismantled. Only the procedures described in the maintenance chapter are authorised. EXAMPLES OF USE SHRINK-WRAPPING A LOADED PALLET Ask your film supplier for the operating instructions.
  • Page 19 SHRINK-WRAPPING RECOMMENDATIONS (in the absence of instructions provided by the film manufacturer): Remain at a distance of at least about 30 centimetres from the film and start shrink-wrapping the lower part of the four sides so the pallet is shrink-wrap- ped underneath.
  • Page 20 When you have stopped applying heat with the gun, the plastic film, because of its make-up, will continue to shrink for some time. This time will vary depending on the quality, the thickness and the type of load that has been wrapped. It is re- commended therefore that you wait until the cover has cooled off and everything is tight before moving the pallet.
  • Page 21 Start by heating the film in a continuous movement and then put pres- sure on this part to connect the two parts together. Once the joint has been made, continue the shrinkwrapping by holding the appliance at least 30 cm from the film. When doing this, be sure to follow the recommendations for shrink-wrapping.
  • Page 22: Maintenance

    MAINTENANCEMAINTENANCE MALFUNCTION DIAGNOSIS : NO GAS COMING OUT OF YOUR RIPACK 2100 CYLINDER Open the fau- VALVE cet by 90° Close the CLOSED valve TOO HIGH FLOW Purge RATE cir- (The internal safety cuit in the of the gas cylinder...
  • Page 23 MALFUNCTION DIAGNOSIS : DIFFICULTIES IN IGNITION OF YOUR RIPACK 2100 PIEZO USED THE PIEZO LOSES ITS ELEC- TRICAL PROPERTIES WITH EACH SOLICITATION. SPARE PIEZO REFERENCE : 131003...
  • Page 24 MALFUNCTION DIAGNOSIS : DIFFICULTIES IN IGNITION OF YOUR RIPACK 3000 THE GAS FLOW RA TE IS The swivel is equip- ABNORMALLY REDUCED ped with a grid filter . (short and weak flame) This can be blocked The ignition is not easy to do...
  • Page 25 MALFUNCTION DIAGNOSIS : NO GAS CUT-OFF AFTER RELEASING THE TRIGGER When trigger released, combustion nozzle should shut off ins- tantly. Otherwise : Open the trigger Lubricate the piston of the dust-contami- nated valve. In case of repeated blockage, have the valve changed by your authorized Ri- pack dealer .
  • Page 26: Warranty

    Ripack 2100 gun after registration of the product on the RIPACK® website at the following address https://ripack.com/enregistrer-un-pro- duit/. For the application of this warranty, the Ripack 2100 gun must be registered within three (3) months following the purchase of the product.
  • Page 27 • Abnormal use, misuse or use under conditions different from those for which the product was manufactured, in particular in the event of failure to comply with the conditions prescribed in the RIPACK® instructions for use. • Transformations of the product and in particular the modifications made or the addition of parts not coming from the manufacturer .
  • Page 28 2100 152153 233419 133531 135294 152052 133415 133532 133533 231224 231230 231173 248113 148043 144052 140010 131003 133132 250023...
  • Page 29 152052 Screw CHc M 4 x 16 152153 Screw CHc M4x35 231224 Complete set combustion nozzle (spark plug+contact+spacers) 231230 Aluminium tube and jet / Ripack 2100 231173 Ensemble amortisseurs 233419 Pawl & Spring - Trigger lock 148043 Swivel connector 248113...
