Summary of Contents for Leonton Connect MET2-0201-M
Page 1
Media Converters Connect Series Doc. Code: CE125003 Rev: A Series Description The Connect Series offers a portfolio for Industrial Data Communication (IDC) for fast Ethernet network connectivity. It is designed as an ideal solution for industrial applications. It provides effectiveness when connecting Programmable Controllers (CPs), Human Machine Interfaces (HMIs), Frequency Inverters and supervisory stations running on industrial servers or computers.
Page 2

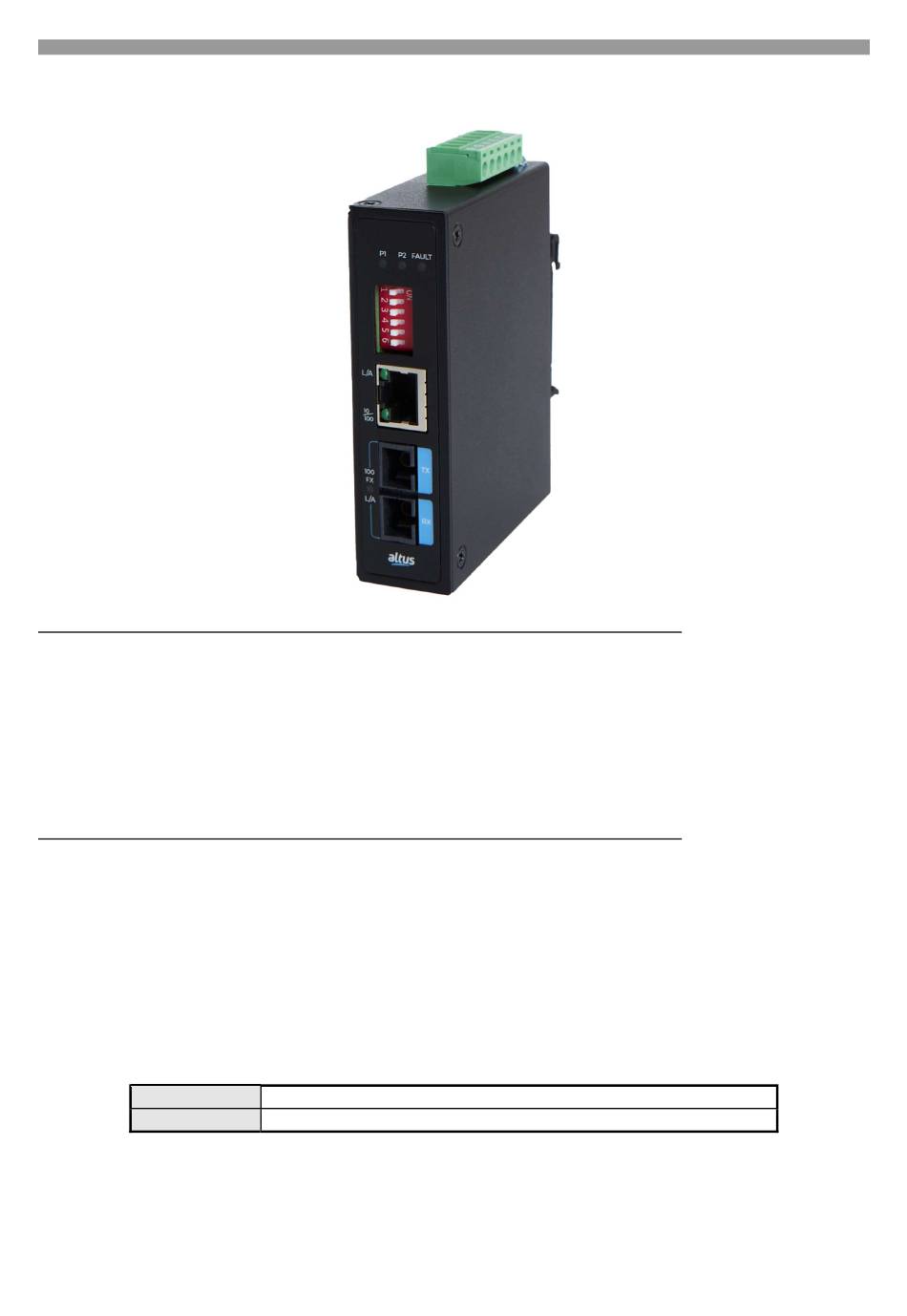

Media Converters Connect Series Doc. Code: CE125003 Rev: A MET2-0201-M Description MET2-0201-M is a 2-ports Industrial Media Converter (1*10/100T(X) + 1*100Fx) designed to be compact, which makes it ideal for limited spaced panels, such as machine control boxes and duct assembly rooms. For setups in harsh or extreme environments, MET2-0201-M can be easily mounted directly on the DIN-rail.
Page 3
Media Converters Connect Series Doc. Code: CE125003 Rev: A Specification – MET2-0201-M MET2-0201-M IEEE 802.3 10BaseT Ethernet Standards IEEE 802.3u 100BaseTX Fast Ethernet Processing Type Store and Forward Technology Protocol CSMA/CD Flow Control IEEE 802.3x flow control, back pressure flow control Properties Memory Buffer 128Kbits...
Media Converters Connect Series Doc. Code: CE125003 Rev: A Hardware Details – MET2-0201-M Dimension MET2-0201-M physical dimensions (W x H x D): 26 x 95 x 75 mm Figure 1: MET2-0201-M Physical Dimensions Front Panel The front panel of the MET2-0201-M is shown in the image below: Figure 2: MET2-0201-M Front Panel...
Media Converters Connect Series Doc. Code: CE125003 Rev: A Top View The image below demonstrates the top panel of the MET2-0201-M, which is equipped with one 6-pin removable terminal block connector for dual DC power inputs (12-48VDC). Figure 3: MET2-0201-M Top Panel View LED Indicators There are LED indicators located on the front panel of the Media Converter that show the power input and network status.
Media Converters Connect Series Doc. Code: CE125003 Rev: A DIP-Switch Setting Figure 4: DIP Switch There are 6 pins on DIP-switch on the front panel for setting LFP (Link Fault Pass) function and Transmission control setup. The default setting for all DIP switches is “OFF”. The image below presents a detailed description. Fiber Port Copper Port Config.
Media Converters Connect Series Doc. Code: CE125003 Rev: A Ports Ethernet ports RJ45 ports automatically identify connections from 10Base-T and 100Base-TX devices. Automatic MDI/MDIX means that the Media Converter can connect to another Media Converter or workstation without changing direct or crossover cabling. The squematic of crossover and direct are shown in the table below: Crossover Cable Direct...
Page 8
Media Converters Connect Series Doc. Code: CE125003 Rev: A Connecting Power Inputs The steps below demonstrate the electrical installation process of the equipment. Step 1: Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below: Figure 6: Power Terminal Block Step 2: Tighten the wire-clamp screws to prevent the wires from loosening, as shown below:...
Media Converters Connect Series Doc. Code: CE125003 Rev: A Mechanical Assembly DIN Rail Mouting The DIN-Rail is pre-installed on the industrial Media Converter from the factory. If the DIN-Rail isn’t on the Media Converter, follow the tutorial below to learn how to install it. Figure 10: Media Converter back and DIN rail holder Follow the steps below to learn how to fix the Media Converter: Step 1: Use the screws to mount the DIN rail holder on the back of the Media Converter.
Media Converters Connect Series Doc. Code: CE125003 Rev: A Step 4: Pull the bracket slightly down the rail, as shown in the image below: Figure 12: Stabilize the Media Converter on the DIN rail Step 5: Check if the bracket is mounted tightly on the rail. Step 6: To remove the rail Media Converter, do the opposite of the steps above.
Media Converters Connect Series Doc. Code: CE125003 Rev: A The image below demonstrates the dimensions of the wall mounting holder: Figure 14: Wall Mounting Holder Dimensions Hardware Installation Installation Steps This section explains how to install the Media Converter: Installation Steps: Step 1: Unpack the Media Converter from the original box Step 2: Make sure the bracket screwed onto the Media Converter.
Page 12
Media Converters Connect Series Doc. Code: CE125003 Rev: A Select the appropriate UTP/STP cable to establish the network. Use an unshielded twisted pair cable (UTP, or Unshielded Twisted Pair) or a shielded twisted pair cable (STP, or Shielded Twisted Pair) for RJ45:100Ω CAT5e connections for 10M/100Mbps.
