- Page 1 Leonton MPT2-0201-M Series (MPT2-0201-M / MPT2-0201-M-T) User Manual Version 1.0...
- Page 2 Disclaimer Leonton Technologies Co., Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Key Features ......................1 Package Contents ..................... 2 Safety Precaution ..................... 2 Hardware Description ....................3 Physical Dimensions ....................3 Front Panel ....................... 4 Top View ........................4 LED Indicators ......................5 DIP-Switch Setting ....................6 Ethernet Ports ...................... -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial Media Converter series have 1*10/100Tx Fast Ethernet port with IEEE 802.3at compliant ports (30W/port) converts to 1*100FX fixed fiber port, suitable for Ethernet and fiber conversion applications. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. -
Page 6: Package Contents
Package Contents • 1 x MPT2-0201-M(-T) • 2 x Wall mounting brackets and screws • 1 x Quick installation Guide Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1 below, shows the physical dimensions of MPT2-0201-M series. (W x H x D) is 26mm x 95mm x 75mm Figure 2.1: MPT2-0201-M Series Physical Dimensions... -
Page 8: Front Panel

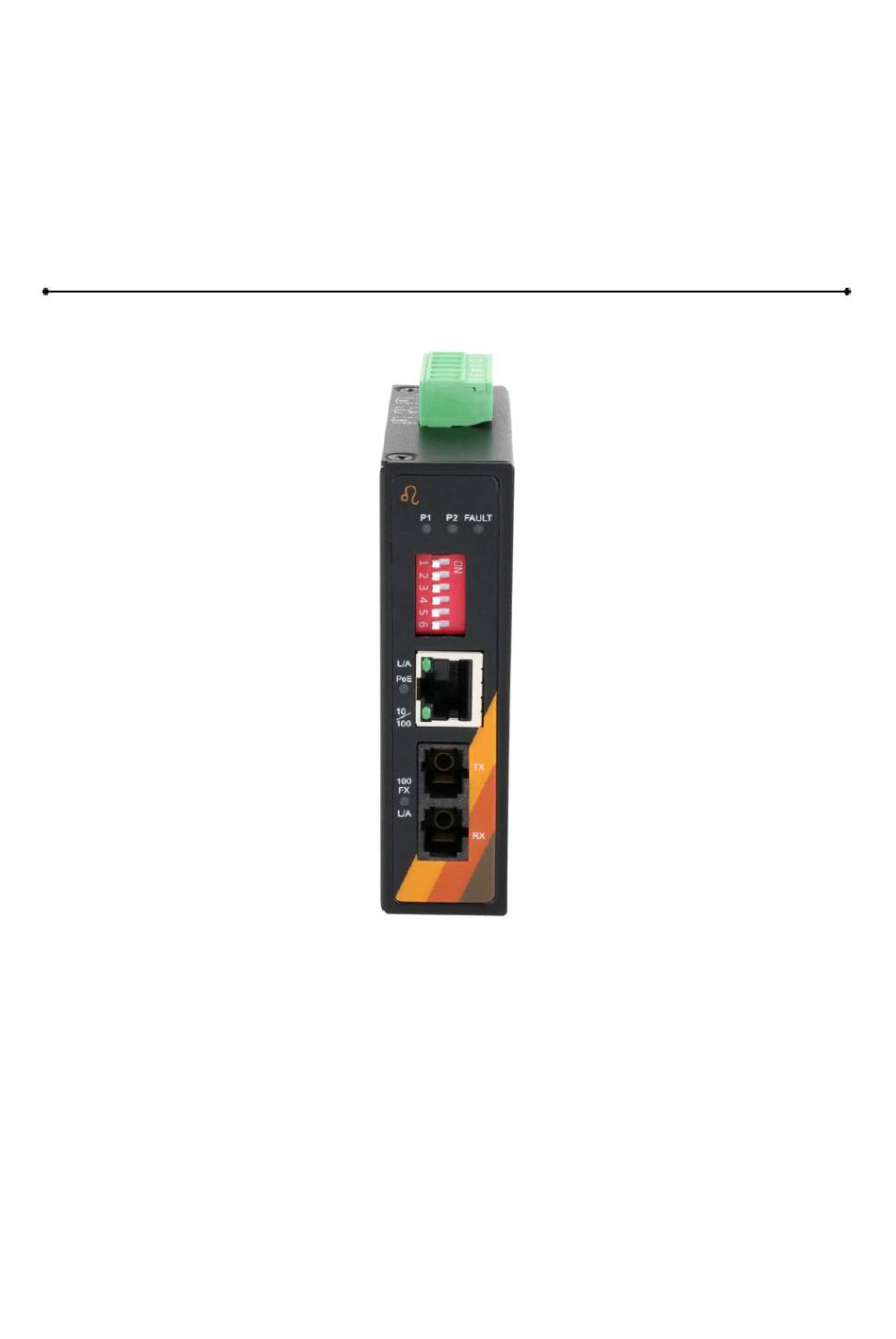

Front Panel The front panel of the MPT2-0201-M series industrial gigabit Media Converter is shown below in Figure 2.2. Figure 2.2: The Front Panel of MPT2-0201-M Series Top View Figure 2.3, below, shows the top panel of the MPT2-0201-M series Media Converter that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48-55VDC). -
Page 9: Led Indicators
Not connected to network The port is supplying power to the powered-device Green No powered-device attached or power supplying fails Table 2.4: LED Indictors for MPT2-0201-M Series NOTE: "P1/P2" is the abbreviation for "Power1/Power2", "ACT" is for "Activity", and "L/A" is for "Link/Activity". -
Page 10: Dip-Switch Setting
Switch Mode 100Mbps Mode Enable Mode Table 2.5: DIP-switch setting for MPT2-0201-M Series DIP Switch 1 ON: Enable Link Fault Pass Through OFF: Disable Link Fault Pass Through (default) DIP Switch 2 ON: Enable “Converter mode” is to forward a frame immediately without storing in memory. -
Page 11: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 12: Fiber Port
Fiber Port The fiber port of SC type connector can work in multi-mode or single-mode. When connecting the fiber port to another one, please follow the figure below to connect accordingly. Wrong connection will cause the port works abnormally. Figure 2.8: SC Connector Caution: This is a Class 1 Laser/LED product that complies with IEC 60825-1. -
Page 13: Wiring The Power Inputs
Wiring the Power Inputs Please follow the below steps to insert the power wire. Step 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.9. Figure 2.9: Power Terminal Block Step 2. -
Page 14: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.1. By inserting the wires, it will detect the fault status including power failure or port link failure and form a normally open circuit. -
Page 15: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Media Converter from the factory. If the DIN-Rail is not on the industrial Media Converter, please see Figure 3.1 to learn how to install the DIN-Rail on the Media Converter. Figure 3.1: The Rear Side of the Media Converter and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Media Converter. - Page 16 Figure 3.2: Insert the Media Converter on the DIN-Rail Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Media Converter on DIN-Rail Step 5. Check if the bracket is mounted tightly on the rail. Step 6.
-
Page 17: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Media Converter using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall. Step 1. Remove the DIN-Rail bracket from the industrial Media Converter by loosening the screws. - Page 18 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 19: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install MPT2-0201-M series. Caution: 1. This device is intended for use indoor and at altitudes up to 2000 meters. 2. This device is intended to be installed in an industrial control enclosure and panel. -
Page 20: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 21: Trouble Shooting
● have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be ◆ resolved. If the industrial Media Converter LED indicators are normal and the connected cables are ●...
