carole PowerView Gen 3 Installation And Operation Instruction Manual

Automation drapery hardware
Hide thumbs Also See for PowerView Gen 3:

Advertisement

Quick Links

Download this manual
Installation — Operation — Care
PowerView
Gen 3 Automation
®
Drapery Hardware

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerView Gen 3 and is the answer not in the manual?

Questions and answers

Related Manuals for carole PowerView Gen 3

Summary of Contents for carole PowerView Gen 3

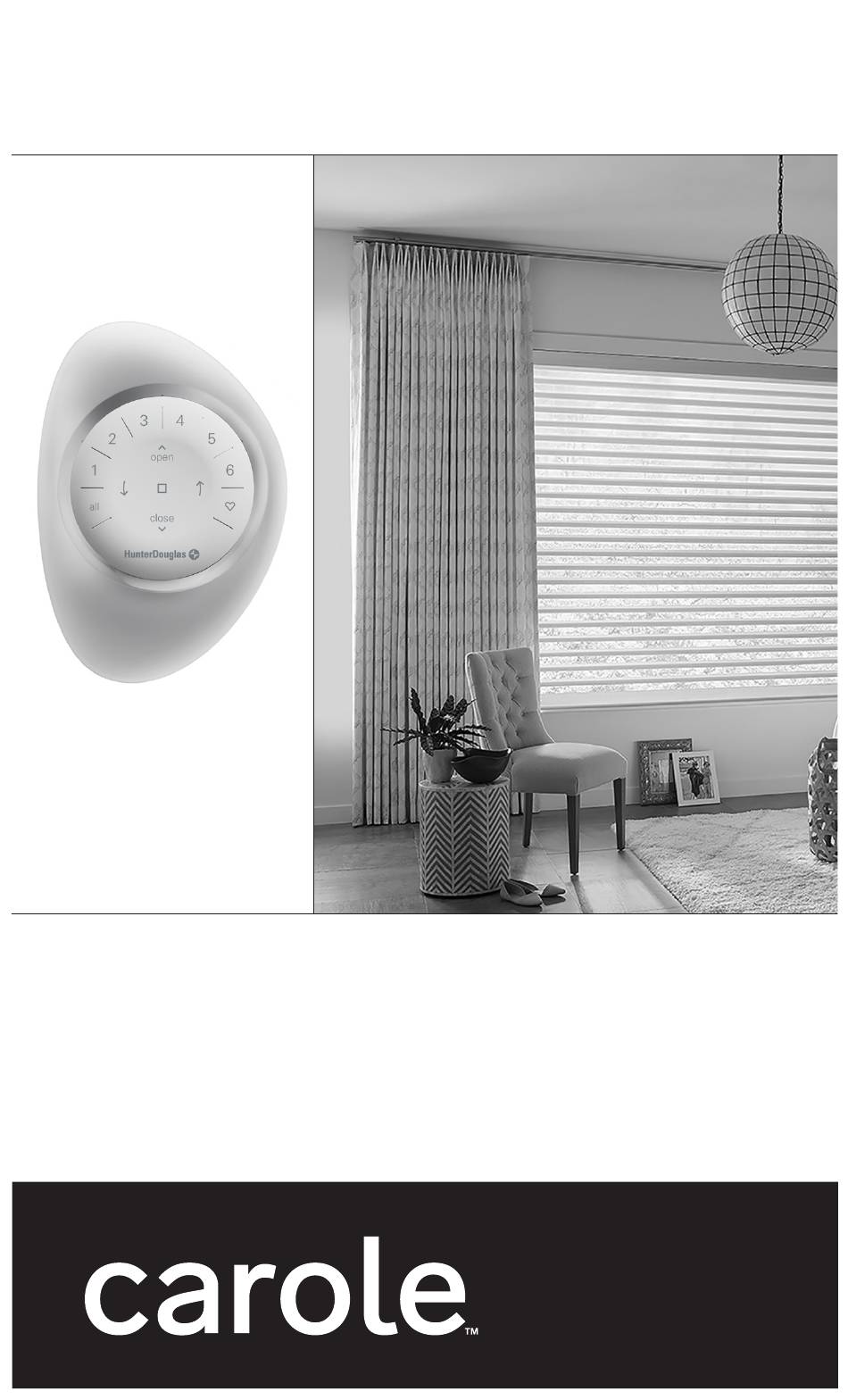

  • Page 1 Installation — Operation — Care PowerView Gen 3 Automation ® Drapery Hardware...

  • Page 2: Installation

    INSTALLATION Install the Motor and Transceiver Slide the lead carrier(s) into a half open position. ■ Align the the transceiver with the groove at the top of the ■ motor then slide it down to the bottom until it is tight. Transceiver Disconnect power cable from the motor and then connect Programming...
  • Page 3 INSTALLATION Attach the motor to the track. ■ Angle the motor and align the motor drive head into the track ➤ gear gaps. Fix the motor in the track with a small turn. The motor locking pin ■ should be aligned as shown. Push the motor locking pin up to secure the motor.
  • Page 4 INSTALLATION Setting Close and Open Limits Apply AC power, and the motor will turn on an amber LED for a few seconds. The transceiver will turn on a red LED for a few seconds. The motor direction needs to be set. Set the close limit first before setting open limit.

  • Page 5: Operation

    ® Open the PowerView App and follow the steps to set up your new shades and remote. ■ Use the PowerView App to program and manage your PowerView Gen 3 remote(s) ■ as accessories. For more details, refer to the digital PowerView Gen 3 Automation Remote Control Guide.
  • Page 6 PowerView Gen 3 Gateways, refer to the digital PowerView Gen 3 Automation Gateway Guide. PowerView Gen 3 Remote For more information regarding operation and programming of the PowerView Gen 3 Remote, refer to the digital PowerView Gen 3 Automation Remote Control Guide.
  • Page 7 Resetting the Drapery Resetting Drapery Programming The PowerView App may be used to modify or reset any programming to PowerView Gen 3 Remotes and Gateways. Draperies may be added to or removed from Rooms in the app at any time. If necessary, draperies may also be deleted from the PowerView App in the Advanced Options section of the Shade Settings menu.

  • Page 8: Troubleshooting

    ■ If questions remain, please contact Hunter Douglas Consumer Support at (800) 789-0331. Problem PowerView Gen 3 only: The drapery does not respond to the remote. Solution IMPORTANT: Will not operate until it is joined to a group. Check that the correct group number is selected. The LED on that group number will light up.
  • Page 9 TROUBLESHOOTING Problem The unit does not traverse at all, does not traverse fully, or does not traverse correctly. Solution Check that the mounting brackets are level, that their front edges are aligned, and that there are no obstructions to the movement of the panels. Check the shade’s status in the PowerView App.
  • Page 10 DECLARATIONS FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 12 June 2023...
