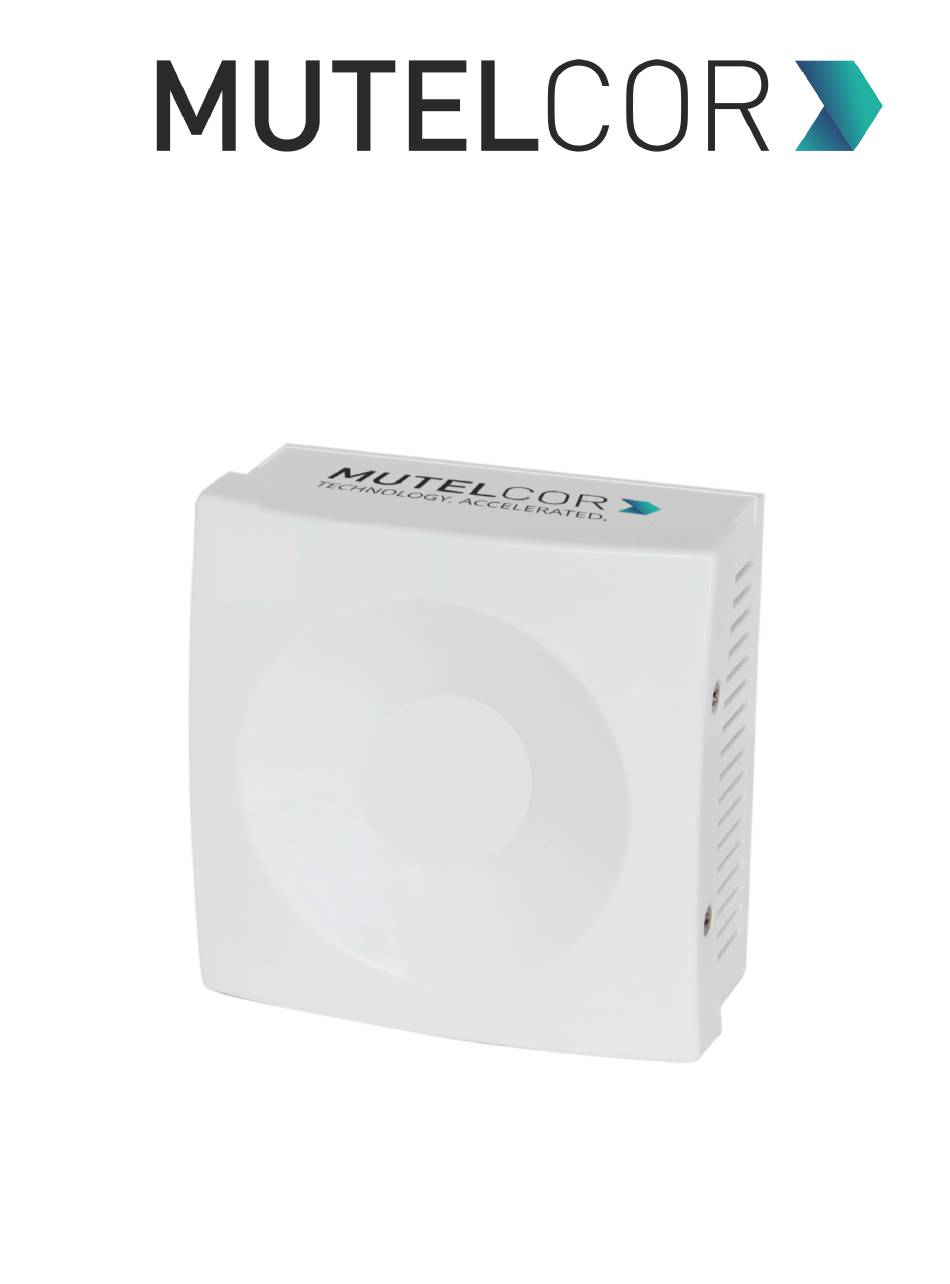

- Page 1 LoRa Wireless CO2 Sensor MTC-XX-CO2-05 / MTC-XX-CO2-06 Quick Start Guide Thank you for choosing Mutelcor GmbH. We are proud to be part of your project.
-
Page 2: Need Help
1. Need Help? For any other query related to our product, please contact the local distributor or Mutelcor at support@mutelcor.com. 2. Manufacturer Mutelcor GmbH: An der Bastei 42a, 47259 Duisburg, Germany Office: +49 203 72996070, Fax: +49 203 72996071, Web: www.mutelcor.com 3. Safety Read the instructions carefully before device installation, operation and maintenance. -
Page 3: Product Description
4. Product Description At a Glance Description Description LoRa Wireless CO2 Sensor Voltage Holes for Wall Mount Ingress Protection Model Name DevEUI with QR code Module ID Optional QR Sticker to Access last CO2 reading ©Mutelcor GmbH. All rights reserved... -
Page 4: Opening And Closing The Device
Unscrew the four screws on the two sides of the device Gently separate the top from the bottom case, as shown in Fig 5.1 above. Close the Top and Bottom of the enclosure and tighten all the four screws ©Mutelcor GmbH. All rights reserved... - Page 5 4 and 5 of section 6 “Insertion and Replacement of Batteries”. Fig. 6.1 The insertion and replacement of the batteries will trigger the device to register to the LoRaWAN network. Upon successful registration the device will trigger 3 short beeps (chirps) in rapid ©Mutelcor GmbH. All rights reserved...
-
Page 6: Activating The Device
Note: If the buzzer in the device continuously beeps in every 8-second interval, then there is a software error. When this happens please immediately contact your reseller or Mutelcor GmbH at support@mutelcor.com QR code sticker: All devices are QR-Ready. If requested, we can activate this feature to allow reading the current battery status by simply scanning a QR code. - Page 7 Areas that are susceptible to vibration ● Areas near the high-voltage cables ● The device may be mounted on the wall. Four screws (not included) are needed. Mounting information is depicted in the following Fig 8.1. Fig 8.1 ©Mutelcor GmbH. All rights reserved...
-
Page 8: Resetting The Device
The reset will trigger the device to re-register to a LoRaWAN network. Upon successful registration, the device will trigger 3 short beeps (chirps) in rapid succession. This implies that the device is activated in a LoRa network and will send heartbeats and alarms via LoRa. Fig 9.1 ©Mutelcor GmbH. All rights reserved... -
Page 9: Technical Specifications
IL: AS923-4 OTAA and ADR supported Battery Life 2 Years Voltage 3V (2 x AA-Lithium Battery) LoRaWAN MAC V1.0.3 Operating -18°C to +55°C Version Temperature Transmission Max 25mW (14 dBm) Ingress Protection IP30 / IP54 Power ©Mutelcor GmbH. All rights reserved... -
Page 10: Declaration Of Conformity
3.2 effective use of the spectrum of 2014/53/EU The CE mark appears due to the issued declaration of conformity under responsibility of Mutelcor GmbH as manufacturer, who declares that the used radio equipment is in compliance with relevant EC Directives. -
Page 11: Warranty
The foregoing is buyer's sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Mutelcor GmbH be liable for any consequential, special or incidental damages 15.
