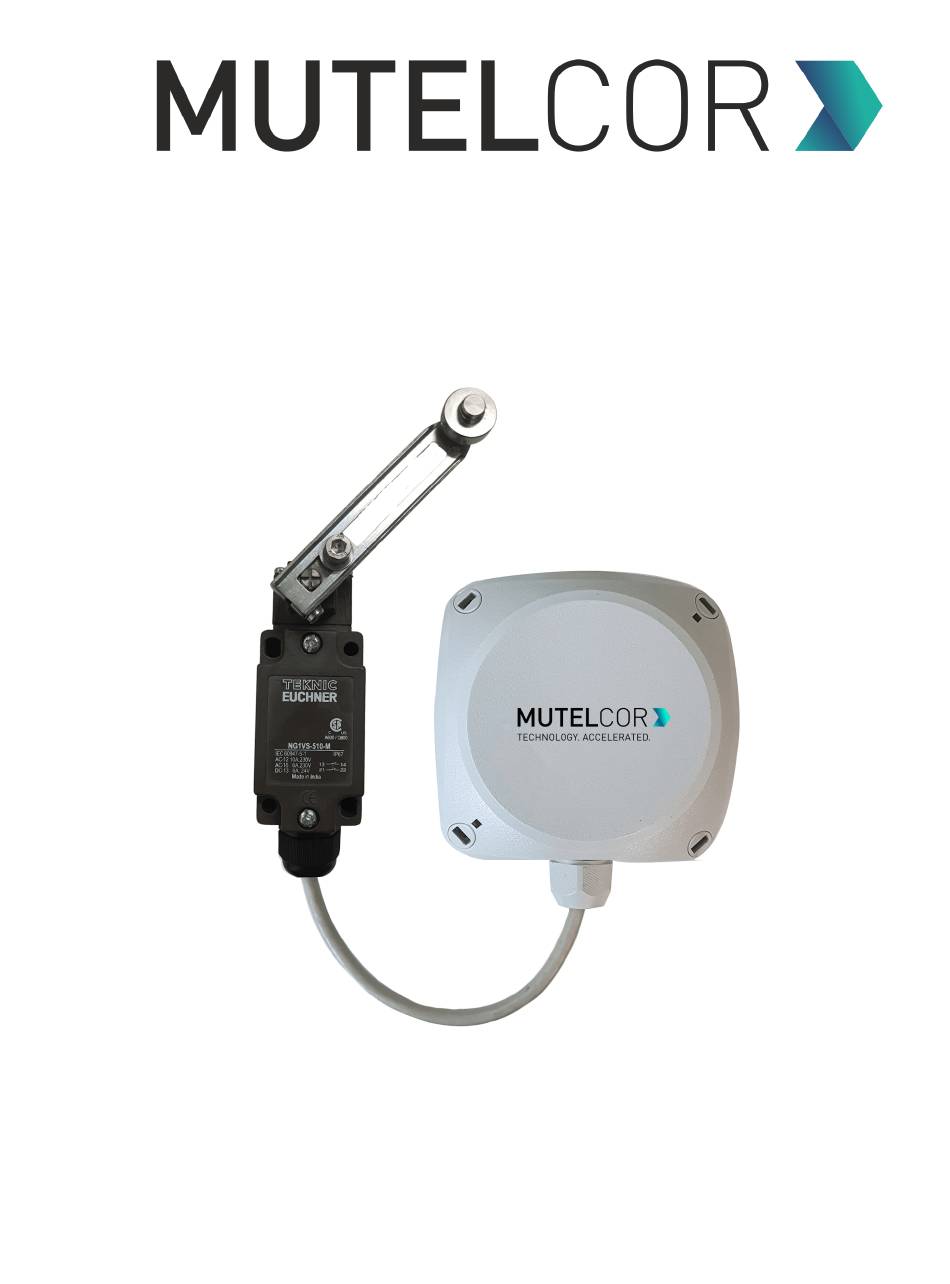

- Page 1 LoRa Manhole Sensor MTC-XX-MH01 Quick Start Guide Thank you for choosing Mutelcor GmbH. We are proud to be part of your project.
-
Page 2: Need Help
1. Need Help? For any other query related to our product, please contact the local distributor or Mutelcor at support@mutelcor.com 2. Manufacturer Mutelcor GmbH: An der Bastei 42a, 47259 Duisburg, Germany Office: +49 203 72996070, Fax: +49 203 72996071, Web: www.mutelcor.com 3. Safety Read the instructions carefully before device installation, operation and maintenance. -
Page 3: Product Description
4. Product Description At a Glance Description Description Lever operating head Model Name Limit switch Module ID Cable gland Voltage Connecting cable Ingress Protection PCB Enclosure Device info Access Sticker (optional) DevEUI with QR code ©Mutelcor GmbH. All rights reserved... -
Page 4: Opening And Closing The Device
Unscrew the four screws (by a quarter of turn) on the top front sides of the PCB Enclosure. Gently separate the top and bottom cases. After insertion, replacement or reset, close the top and bottom of the enclosure together and tighten all the four screws by quarter of turn. ©Mutelcor GmbH. All rights reserved... - Page 5 This implies that the device is activated in a LoRa network successfully and will send heartbeats and alarms via LoRa. Note: If rejoining of the device fails, one can manually reset the device as described in section 9 “Resetting the Device” ©Mutelcor GmbH. All rights reserved...
-
Page 6: Activation Of The Device
When Manhole is opened the buzzer will give 3 short beeps. The sound toggles every 0.25 ● seconds. Alarm message sent via LoRa is repeated two extra times. Each repeat is sent after 10 ● seconds on a different frequency and with an increased frame counter. ©Mutelcor GmbH. All rights reserved... - Page 7 For all details on the payload sent on LoRa, changing values via OTAA, provisioning of the device in a LoRa network, please contact the local distributor or Mutelcor GmbH at support@mutelcor.com Note: If the buzzer in the device continuously beeps in every 8-second interval, then there is a software error.
- Page 8 PCB Enclosure (A) and Limit Switch (C) are provided with prefixed mounting clips (B) ● The height of the Lever of Limit switch can be adjusted from 35 mm to 83 mm ● The hole size on the mounting clip is 6mm ● ©Mutelcor GmbH. All rights reserved...
- Page 9 The reset will trigger the device to re-register to a LoRaWAN network. Upon successful registration the device will trigger 3 short beeps (chirps) in rapid succession. This implies that the device is activated in a LoRa network and will send heartbeats and alarms via LoRa. Fig 9.1 ©Mutelcor GmbH. All rights reserved...
-
Page 10: Technical Specifications
3.2 effective use of the spectrum of 2014/53/EU The CE mark appears due to the issued declaration of conformity under responsibility of Mutelcor GmbH as manufacturer, who declares that the used radio equipment is in compliance with relevant EC Directives. -
Page 11: Warranty
The forgoing is buyer's sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Mutelcor GmbH be liable for any consequential, special or incidental damages. - Page 12 15. Find us on social media We would like to hear from you: any tips, any news to share ? www.facebook.com/mutelcor Mutelcor GmbH We stay at your disposal for any help on your project requirements Mutelcor GmbH Team ©Mutelcor GmbH. All rights reserved...
