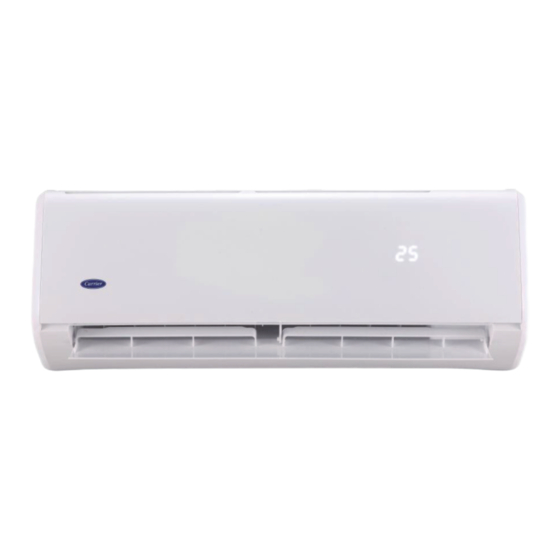

- Page 1 WALL MOUNTED AIR CONDITIONER OWNER’S MANUAL Read this manual carefully CA007U-15CR32(N) before installing or operating your new 16122000007895 air conditioning unit.Make sure to save 2018.11.05 this manual for future reference.
-
Page 2: Table Of Contents
READ BEFORE OPERATING This product has been det ermined t o be in compliance wit h t he Low Volt age Direct ive ( 2014/35/EU), and t he Elect romagnet ic Compat ibilit y Direct ive ( 2014/30/EU) of t he European Union. -
Page 3: Read Before Operating
1. READ BEFORE OPERATING 1.1 Safety Precautions Do not use flammable gas or Do not use a heating appliance in the ● Follow these instructions carefully to ombustibles such as gasoline, conditioned space. - avoid incorrect operation. benzene, thinner, etc. in the - prevent personal injury or consequential damage. -
Page 4: Part Names
1. READ BEFORE OPERATING 1.2 Part Names CAUTION ■ Indoor Unplug the unit when unused for long The product is intended for human periods comfort ONLY Do not climb or place objects on the Do not block air inlets or outlets. Poor unit. -
Page 5: Operation
2. OPERATION 2.1 Operating Condition 2.3 How It Works! Basic Operation Modes：AUTO / COOL / DRY / HEAT* / FAN Indoor Outdoor [*]Model dependent 43°C DB (Fixed speed models) 32°C DB Upper limit 46°C DB (Inverter models) AUTO Mode 52°C DB (High ambient models) Cooling ●... -
Page 6: Directional Control
2. OPERATION 2.4 Directional Control 2.5 Special Functions Adjusting vertical air flow ■ Compressor Delay ■ WLAN Control* ● Press “AIR DIRECTION” on remote controller to adjust vertical At start-up, a time delay of 3 ~ 5 With WLAN function, the unit can be air flow direction. -
Page 7: Care
3. CARE Care and Maintenance Storage Preparation [long idle periods] 1) Clean the air filters General Cleaning 2) In humid or damp climates, operate in Fan mode until the unit has dried out. DISCONNECT from power source Use a soft damp cloth when cleaning 3) Turn the air conditioner off with the remote controller and remove the batteries. -
Page 8: Trouble Shooting
4. TROUBLE SHOOTING Guides, Tips and Cautions CONCERN PLEASE FIRST CHECK! The following may occur during normal operation, • Is there a power failure? and may not indicate malfunction. • Has a switch been turned off, a circuit breaker tripped or a fuse blown? Case Explanation Unit will not operate. - Page 9 图纸要求： 材质：双胶纸80g 尺寸：A3纸大度420*297对折为单页A4 封面封底双色套印，内页黑白。 封面套印开利蓝pantone 072 (C100, M85, Y0, K0) 商标叶子颜色pantone 376 (C50, M0, Y100, K0)
