- Page 1 Video-Inspection System HD manual de usuario 1-18 Original manual translation...
-
Page 2: Training Services
introduction Dear customer: Many thanks for having placed your trust in a quality product from TEINNOVA. This product has been developed with modern manufacturing proce- dures and a range of measures to guarantee quality. We endeavour to do everything possible so that you are satisfied with this product and can work with it without any problems. - Page 3 contents symbols 4-18 get to know your machine 5-18 accesories and related equipment 6-18 operating instructions 7-18 mantenaince and care 14-18 waste management 15-18 technical specifications 16-18 conditions of the guarantee 17-18 declaration of compliance “CE” 18-18 visiopro Video-Inspection System HD 3-18...
-
Page 4: Important Note
symbols All of the graphic symbols shown in this manual as well as those indicated on the equipment itself are explained in this section. It is important to read the text relating to these symbols with special care as it concerns personal and equipment safety. -
Page 5: Get To Know Your Machine

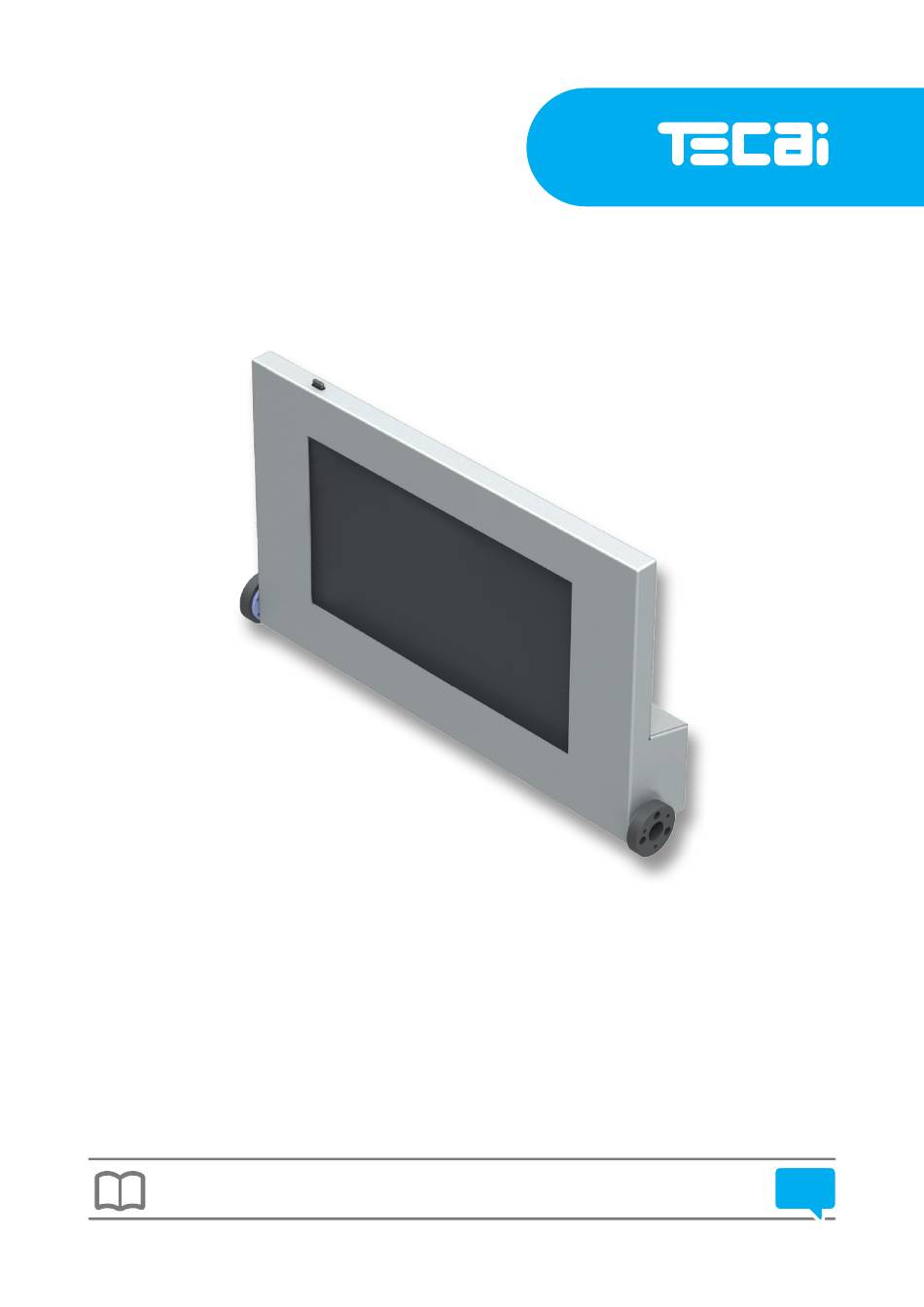

get to know your machine The VISIOPRO has been specially designed by TEINNOVA for the visualization and recording in high quality of the video-inspections that it realizes of the interior of the ducts of a simple and professional way. It is an indispensable tool for checking the finished workand to show the results to the client. - Page 6 accesories and related equipment multibot A single air duct cleaning robot with multiple applications. Cod. TG3120605 visiobot Inspection robot for ducts. Cod. TC3110102 visioair Pneumatic brushing robot for cleaning ducts. Cod. TC3120402 visiopro Video-Inspection System HD 6-18...
- Page 7 operating instructions Main menu screen. Taking and viewing Managing and Configuration videos / images. playing files. and settings Help Turn off device visiopro Video-Inspection System HD 7-18...
- Page 8 operating instructions Viewing and taking video / image - Start video recording - Recording video - Press again to end the recording Quick shot Return to main menu visiopro Video-Inspection System HD 8-18...
- Page 9 operating instructions Managing and playing files Copy selected file from hard List of files stored in drive to external USB storage List of files stored in device hard drive device external USB device Filter by Filter by View the selected video image files video files or image...
- Page 10 operating instructions Playing video and images Return to the file management and playing menu Stop playback Pause playback Progress bar (Slide to the desired position) visiopro Video-Inspection System HD 10-18...
-
Page 11: Configuration And Settings
operating instructions Configuration and settings Edit the file name (Press to reveal keyboard) Save the changes Software version installed Set the date Set the time Update software version Return to main (Use the arrows to (Use the arrows to (You must have the update file menu set the day, month set the hour, min-... - Page 12 operating instructions Help Help in Spanish Help in English Help in Italian Help in French Return to main menu visiopro Video-Inspection System HD 12-18...
-
Page 13: Help Manual
operating instructions Help manual Previous page Next page Start button Ventilation Ventilation Connection for external USB storage device Return to main menu visiopro Video-Inspection System HD 13-18... -
Page 14: Maintenance And Care
maintenance and care Keep the equipment as clean as possible.Keep the equipment somewhere that is protected from weather effects. Keep the connectors clean so as to avoid blockages in the conduits that might cause serious faults in the equipment’s main elements. Replacement parts: TEINNOVA has replacements for all parts of the machine as well as for consumables for all the maintenance tasks mentioned in this manual. -
Page 15: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collec- tion points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process. -
Page 16: Technical Specifications
technical specifications VISIOPRO Features Weight 2.7 Kg Video capturer Full HD 1080p 60Hz Screen IPS 9.7” 2048x1546 (Intel Atom X5-Z8300) 64bit Quad Core 1.44GHz 4 GB Hard disk 64 GB 378x230x58 mm Dimensions 14.88x9.06x2.28 plg 255,5 67,3 visiopro Video-Inspection System HD 16-18... -
Page 17: Conditions Of The Guarantee
1). of the product’s non-conformity and it shall not apply said TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA reserves the right to make changes to the equipment without giving prior notice. -
Page 18: Manufacturer Information
+34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
