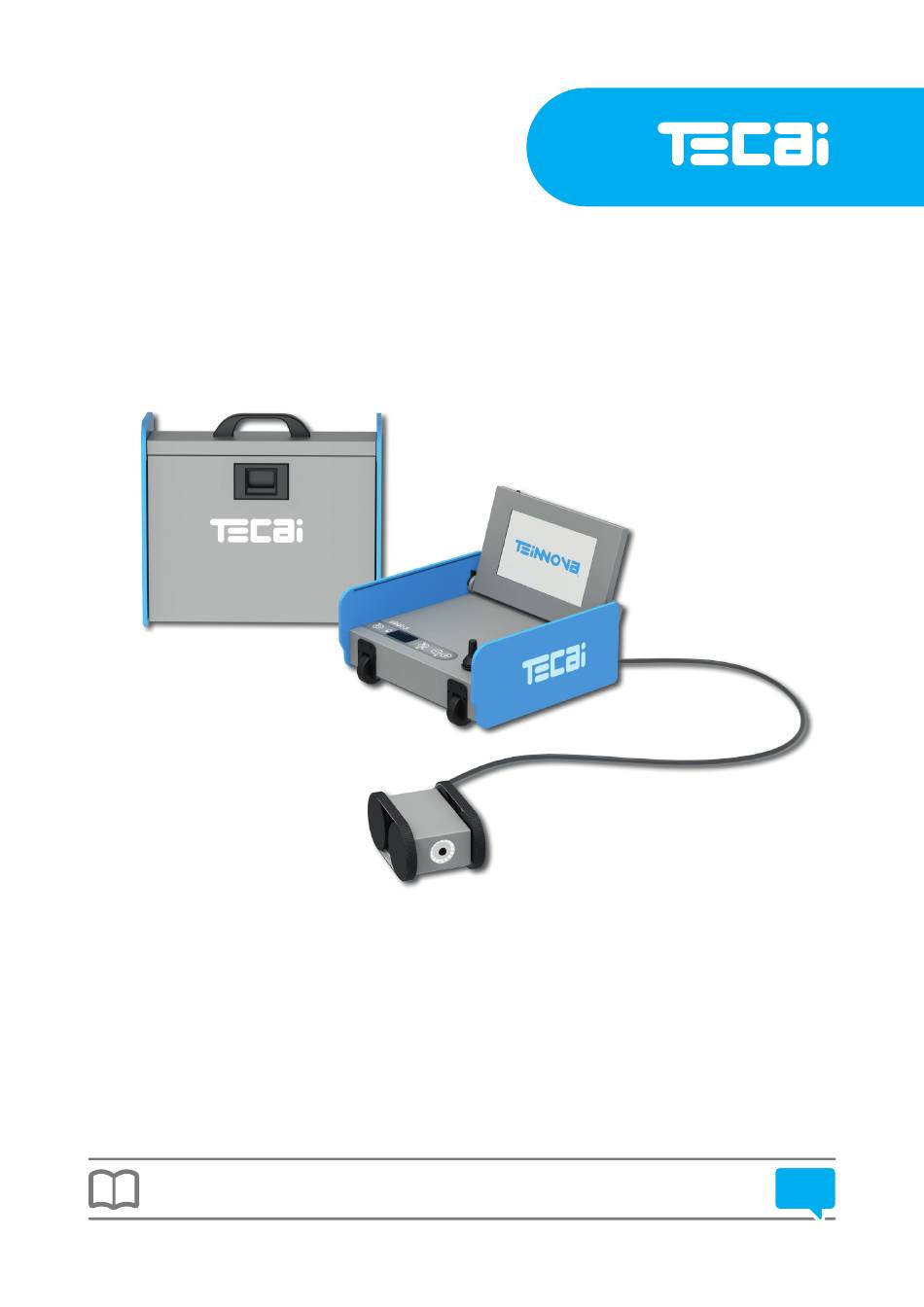

- Page 1 visiobot HD Duct inspection system user manual Original manual translation...
- Page 2 introduction Dear Client: Thank you for placing your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing techniques and thorough quality assurance measures. We strive to do everything we can to make sure you are satisfied with this product and can work with it without problems.
- Page 3 contents symbols used 5-25 safety warnings 6-25 conditions of use 7-25 know your machine 8-25 control panel 11-25 operating instructions 12-25 transport 19-25 maintenance and care 20-25 waste management 21-25 visiobot HD 3-25 Duct inspection system...
- Page 4 contents technical specifications 22-25 guarantee conditions 24-25 declaration of conformity “CE” 25-25 visiobot HD 4-25 Duct inspection system...
- Page 5 symbols used All the symbols used in this manual, as well as those on the equipment, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety. DANGER! This symbol warns you of a potentially dangerous situation which could result in serious injury or even death if the instructions given are not followed properly.
- Page 6 safety warnings The VISIOBOT HD equipment should NOT be used for anything other than the uses given in this instruction manual. Make sure all the electrical connections are correct before starting the equipment. Make sure your VISIOBOT HD is placed on a flat and stable surface. Everybody who uses the VISIOBOT HD equipment must be properly prepared.
- Page 7 conditions of use VISIOBOT HD has been designed to help the user as much as possible when carrying out technical inspections inside air conditioning or ventilation ducts. All this technology is integrated into a compact, very strong and durable, lightweight carrying case. It can be used where there is no mains electricity available, because it has a long battery life.
- Page 8 know your machine Features: Twin front and back high resolution cameras. High intensity LED lighting, with adjustable brightness. Built-in video recording with a slot for an external storage device. Tractor with robust chassis and Tractor with robust chassis and traction through high grip belts controlled by speed-adjustable joystick.
- Page 9 know your machine Tractor Components: 1- High resolution colour front camera 2- LED lighting ring 3- Independently driven wheels x4 4- High resolution colour rear camera 5- LED lighting bank x 2 6- Control case connector visiobot HD 9-25 Duct inspection system...
- Page 10 know your machine Control Panel Components: 1- 9.7” IPS Screen 2- ON/OFF switch 3- Battery charge level indicator 4- Change camera 5- Lighting brightness control 6- Control joystick 7- External storage device slot 8- Connector 9- Monitor ON/OFF switch visiobot HD 10-25 Duct inspection system...
- Page 11 control panel Main Control Membrane Panel: ON / OFF Battery level indicator Change of camera Intensity regulator of illumination visiobot HD 11-25 Duct inspection system...
- Page 12 operating instructions Main menu screen: Visualization and Reproduction and Configuration capture video / image file management and adjustments Help Turn off equipment visiobot HD 12-25 Duct inspection system...
- Page 13 operating instructions Viewing and capturing video / image: - Start video recording - Video Capturing - Press again to end the recording Instantaneous capture Back to main menu visiobot HD 13-25 Duct inspection system...
- Page 14 operating instructions Playback and file management: Copy selected file from hard List of files stored on your disk to storage device List of files stored on computer’s hard disk USB external storage external USB device Filter by Filter by Video or image display image files video files selected from the selected file...
- Page 15 operating instructions Video and image reproduction: Back to playback menu and file management Stop the reproduction Pause the reproduction Progress bar (Slide to desired position) visiobot HD 15-25 Duct inspection system...
- Page 16 operating instructions Configuration and settings: File name editing (Press to display Save the changes Installed software keyboard) made version Date settings (Use Time setting (Use Update software version (update Back to main arrows to set day, arrows to set file delivered by TEINNOVA menu month and year) time, minute and...
- Page 17 operating instructions Help: Help in Spanish Help in English Help in Italian Help in French Back to main menu visiobot HD 17-25 Duct inspection system...
- Page 18 operating instructions Help manual: Back to page Advance page Power Button Ventilation Ventilation USB storage device connection Back to main menu visiobot HD 18-25 Duct inspection system...
- Page 19 transport The machine has been designed to be transportable in a small van. During transport the machine must be firmly fixed to prevent any damage. It is not advisable to place the machine on a pallet or similar. The machine must be on a completely flat and horizontal surface.
- Page 20 maintenance and care Keep the equipment free of dust and dirt, in a place protected from the effects of weather and at a temperature of between 0 and 40oC. Keep the machine in good condition, avoid knocking it or overloading it. Keep connections clean to avoid clogged pipes that could cause serious damage to the main components of the ma- chine.
- Page 21 waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collec- tion points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process.
- Page 22 technical specifications ENTIRE SYSTEM Dimensions (mm) 745 x 415 x 175 Weight 18 kg (with monitor and tractor) Material Stainless steel and HDPE Removable elements Reel, cover and monitor Electricity grid 230V / 50Hz // 110V / 60Hz Power 75 W max. Battery 12V / 5,5Ah visiobot HD...
- Page 23 technical specifications TRACTOR Dimensions (mm) 225 x 110 x 135 Weight 2,40 kg Material Stainless Steel Drive By high grip belt. Lighting 1 LED ring in front and 2 rear LED banks with variable brightness. High resolution colour. Front camera High resolution colour.
- Page 24 1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), España.
- Page 25 +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
