Peak Performance PKC0CV Owner's Manual

4/10/20/40 amp intelligent battery charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

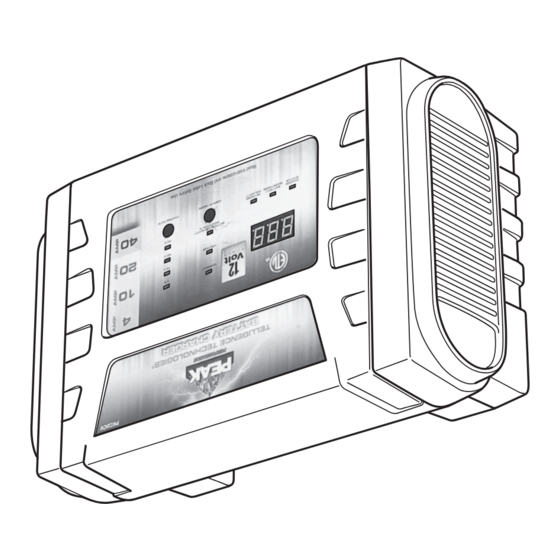

4/10/20/40 Amp
Intelligent Battery
Charger
Model No.: PKC0CV
Owner's Manual
and Warranty Information
Read these instructions completely before using this product.
Retain this Owner's Manual for future reference.
P/N XXXXX, 1/10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKC0CV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peak Performance PKC0CV

Summary of Contents for Peak Performance PKC0CV

  • Page 1 4/10/20/40 Amp Intelligent Battery Charger Model No.: PKC0CV Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 1/10...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ........................ 2 Battery Charger Safety ......................2-3 Preparing to Charge ....................... 4 Battery Charger Location ......................4 Connection Precautions ......................4 INTRODUCTION ..........................5 FEATURES ............................5 OPERATION ............................ 6 Battery Charger Controls ......................6 Control Panel ........................6 Before Charging ........................
  • Page 3 • Do not open the Battery Charger. There are no user-serviceable parts inside the unit. EXPLOSIVE GASES — Do not use this product in the presence of flammable fumes or gases. Working in the vicinity of a lead-acid battery can cause an explosion of the battery being charged.

  • Page 4: Preparing To Charge

    Preparing to Charge Determine voltage of battery by referring to car owner’s manual. If it is necessary to remove battery from vehicle to charge, or to clean terminals, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are turned off to prevent arcing.

  • Page 5: Introduction

    INTRODUCTION This Battery Charger has been carefully engineered and manufactured to give you dependable operation. Please read this manual thoroughly before operating your new Battery Charger, as it contains the information you need to become familiar with its features and obtain the performance that will bring you continued enjoyment for many years.

  • Page 6: Operation

    CURRENT 10 A VOLTAGE 20 A BATTERY CAPACITY 40 A INDICATOR % CHARGE BATTERY REVERSE STATUS RECONDITIONING POLARITY DISPLAY MODE CHARGE RATE Legend handle Display Mode Button Cord and Plug Reverse Polarity Indicator Control Panel Battery Reconditioning Indicator 4-amp Charge Indicator Charge Status Indicator 10-amp Charge Indicator Current Mode Indicator...

  • Page 7: Before Charging

    Battery Capacity Indicator – When lit it indicates that the battery capacity percentage mode has been selected and it will be shown on the LED display. The battery capacity range is “LO”, 60% to 90%, and “FUL”. When charging is complete, “FUL” will show on the LED display, no matter what display mode (current, voltage, battery capacity) was used when charging the battery.

  • Page 8: Charging If Battery Is Outside Of Vehicle

    Attach charger clamps to battery connections, as follows, ensuring a good connection (if there is a mistake, the reverse polarity indicator will light) when the Battery Charger is plugged in: Negative-Grounded Vehicle: Connect the positive (RED) charger clamp to the positive (POS, P, +) ungrounded battery terminal.

  • Page 9: Use Of Extension Cords

    Charging Times The PKC0CV is a fully automatic battery charger. It automatically adjusts the charge rate as the battery becomes charged and stops charging when the battery is fully charged. If you require some estimate of the time it takes to charge a battery, refer to the chart below for approximate charge times.

  • Page 10: Specifications

    SPECIFICATIONS Rated Input Voltage 120V AC/60hz Maximum Current Output 40±2A Continuous Output Voltage 14.8±0.2V DC Float Charge Voltage 13.6±0.2V DC Minimum Battery Voltage 4-5V DC (for Battery Charger to operate) Ambient Operating 32°~104°F (0°~40°C) Temperature Weight 7.4 lbs (3.3 kg) Dimensions (L ×...

  • Page 11: Fault Codes

    Fault Codes The Battery Charger will display fault codes on the LED display when an error occurs. This will help you to troubleshoot the problem. Refer to the chart below for a list of the fault codes. Fault Code Condition Cause Solution Replace the battery.

  • Page 12: Limited Warranty

    LIMITED WARRANTY Manufacturer warrants to the original consumer, or purchaser, that the PEAK® PKC0CV Battery Charger will be free from defects in material and workmanship for ninety (90) days from the date of sale to the original purchaser. Manufacturer hereby excludes and disclaims any and all other warranties, expressed or implied, beyond those warranties specified above.
