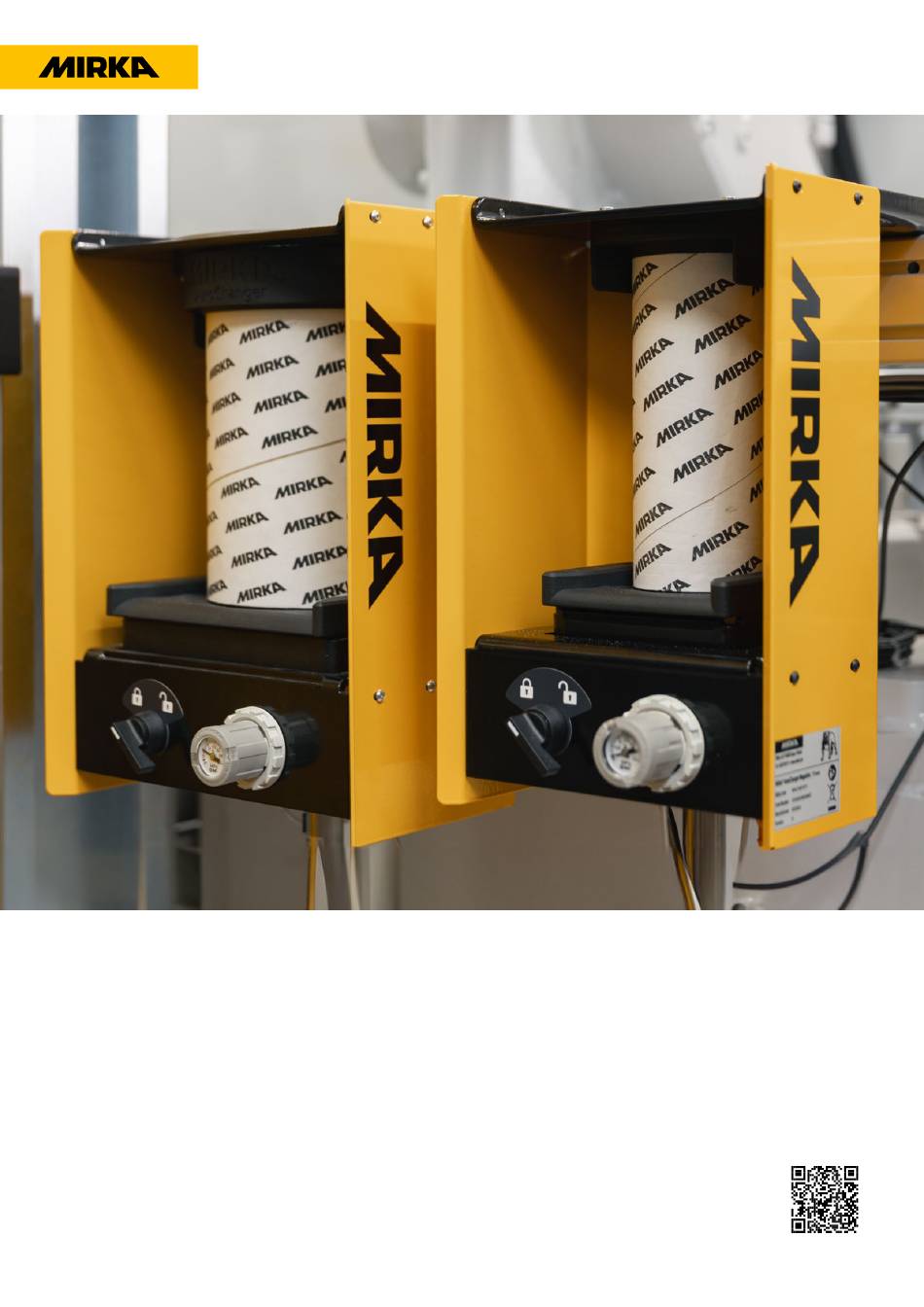

- Page 1 Mirka AutoChanger ® Quick Start Guide The Mirka AutoChanger is a revolutionary modular solution designed ® for the automated replacement of abrasive discs in various industrial sanding applications. mirka.com Please read the full manual...
-
Page 2: Technical Data
Mirka AutoChanger ® To install the AutoChanger system, the end customer should seek assistance from a qualified and experienced integrator. An understanding of automation and programming is required to setup the AutoChanger system safely and correctly. In addition to the AutoChanger modules, it is recommended that the customer implement its own camera identification system. - Page 3 NOTE! *Included in the scope of delivery for a complete order of a minimum of one of each module. If one module is left out of the order this list will not be accurate. Pneumatic settings Important! The pressure differences between the inlet pressure and the magazine pressure should not be greater than 0.1MPa. If the pressure differences are > 0.1MPa, the cylinders will not operate properly. Mirka® AutoChanger – Quick Start Guide...
-
Page 4: Programming Instructions
The AIROS now has an abrasive disc attached. To pick a new disc, start from step 1. Reduce waiting time in step 3 for faster disc changes. Mirka® AutoChanger – Quick Start Guide... - Page 5 (waypoint 5). nozzle to remove any residue, and return the knife to removing position (depending on abrasive thickness). Step 9: Re-center the orbit and follow the “Removing abrasive discs” process to pick a new disc. Mirka® AutoChanger – Quick Start Guide...
-
Page 6: Operator Instructions
OPERATOR INSTRUCTIONS It is the responsibility of the customer to train operators in the AutoChanger system and provide them with sufficiently extensive training materials before they are allowed to operate the system. Changing Cartridges: When the system gives a warning that the Magazine is almost empty it is recommended to change the cartridge. -
Page 7: Maintenance And Troubleshooting
Condition check At least once a month check the condition of all AutoChanger modules. Ensure that none of the linear bearings are seized or making excessive noise. Check bristles for wear. Ensure that none of the pneumatic hoses are damaged or loose. - Page 8 Finland & Baltics Mirka Ltd France Mirka France Sarl Germany Mirka GmbH India Mirka India Pvt Ltd Italy Mirka Italia s.r.l., Mirka Superabrasives S.p.A Mexico Mirka Mexicana S.A. de C.V. Netherlands Mirka Benelux B.V Poland Mirka Poland Sp. z o.o Singapore Mirka Asia Pacific Pte Ltd Spain KWH Mirka Ibérica S.A.U.
