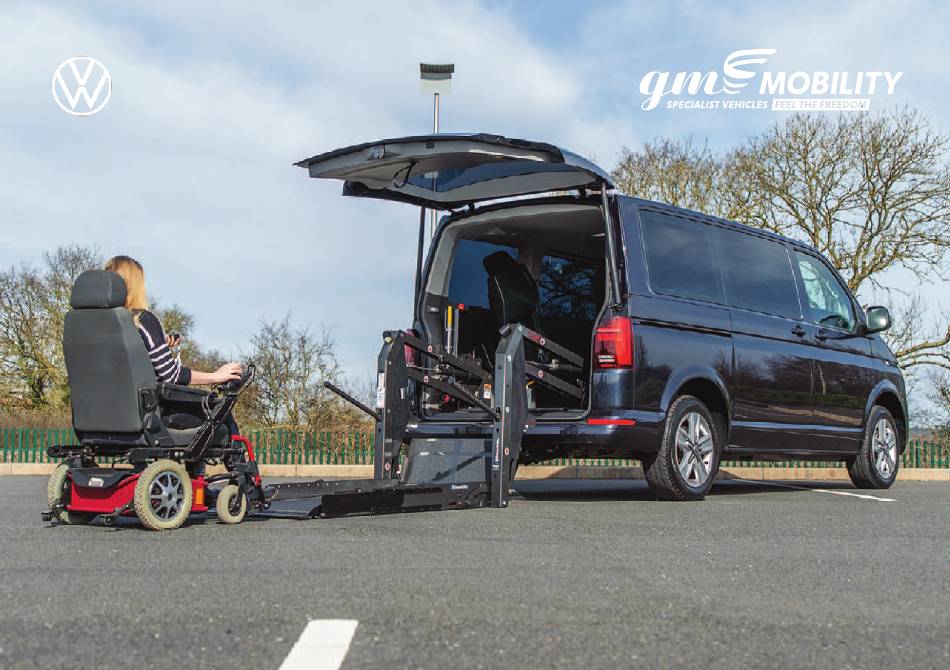

V W C A R A V E L L E
VERMONT
O W N E R S H A N D B O O K

Advertisement

loading
Need help?

Need help?

Do you have a question about the VW CARAVELLE VERMONT and is the answer not in the manual?

Questions and answers

Related Manuals for GM MOBILITY VW CARAVELLE VERMONT

Summary of Contents for GM MOBILITY VW CARAVELLE VERMONT

  • Page 1 V W C A R A V E L L E VERMONT O W N E R S H A N D B O O K...
  • Page 2 VERMONT USEFUL TIPS BATTERY CONDITION WHEELCHAIR LIFT The electrical systems of your vehicle can be adversely effected Your vehicle wheelchair lift has a safety feature to protects the by low battery voltage. All vehicles gradually lose battery charge lift and inside of the rear tail gate if the vehicle is left unused for when not used.
  • Page 3 ENTERING THE VEHICLE | VW Vermont ENTERING THE VEHICLE | VW Vermont Unlock the vehicle using the central locking system on the VW From ground level, the UP function key. Ensure there is sufficient space behind the vehicle. Stand will raise (rotate) the roll stop to the well clear of the tailgate.
  • Page 4 SECURING A MANUAL WHEELCHAIR | VW Vermont SECURING A MANUAL WHEELCHAIR | VW Vermont FRONT TIE-DOWNS 1. Position the wheelchair within the vehicle as required. 5. Press the red buckle button(s) to release the webbed tongue, extend and pass around each of the front wheelchair frame tie- 2.
  • Page 5 SECURING A MANUAL WHEELCHAIR | VW Vermont SECURING A MANUAL WHEELCHAIR | VW Vermont REAR TIE-DOWNS 1. Select rear webbing tie-down so that the karabiner gates face within the rear view zone, (Fig 6).(Some chairs will indicate this outboard from the wheelchair, (Fig 5). If using a tongue and tie-down position, Fig 7).
  • Page 6 OCCUPANT RESTRAINT SYSTEM | VW Vermont OCCUPANT RESTRAINT SYSTEM | VW Vermont 1. Where applicable, position the third point fixing into the cant 8. The lap belt anchor points should be positioned to achieve FIG 1 FIG 2 FIG 3 rail, (Fig 3), so that it is vertically above the inertia reel casing belt angles of 30°...
  • Page 7 SEAT REMOVAL | VW Vermont The removable seats in your vehicle are fitted with Unwins seat fixtures. This allows them to be positioned, removed and located within the floor tracking. Fig 2 FIXING THE SEAT INTO THE RAILS REMOVING THE SEAT FROM THE RAILS 1.
  • Page 8 SECURING THE DRIVERS WHEELCHAIR | VW Vermont HANDBRAKE | VW Vermont 1. Move driver seat to the rear of the vehicle (see page 9), or RELEASING THE WHEELCHAIR HANDBRAKE remove from the vehicle. This will uncover the Electric Simply press the release button and the lock will release, The handbrake is operated by pressing the button to the right of Wheelchair Lock.
  • Page 9 OPTIONAL EXTRAS This section features the most popular optional extras. The majority of optional extras will come supplied with a manufacturers product manual. This section is designed to be a brief summary. For full details please refer to manufacturers product manual.
  • Page 10 HEATED SEATS | VW Vermont SIX WAY POWER SEAT | VW Vermont The heated seats are operated using the VW dash fitted The six way seat enables the switches. When moving or refitting the seats remember to driver to move forwards, back- plug/unplug the power supply.
  • Page 11 SERVICE AND MAINTENANCE | VW Vermont If your WAV has been purchased VAT exempt, all subsequent Our Customer Care Department is very experienced and they repairs, maintenance and parts relating to that vehicle may be are responsible for ensuring you have the finest possible VAT free and an exemption form must be completed in each service throughout the life of your vehicle.
  • Page 12 PAS 2012 INFORMATION | VW Vermont PAS 2012 INFORMATION | VW Vermont FEATURE PARAMETER VALUE GM Coachwork Vermont VW Caravelle SE/Executive Max permitted front axle weight (kg) 1610 Drive-from-wheelchair vehicle Max permitted rear axle weight (kg) 1575 Gross vehicle weight (GVW) 3000 Kerb weight (kg) 2304...
