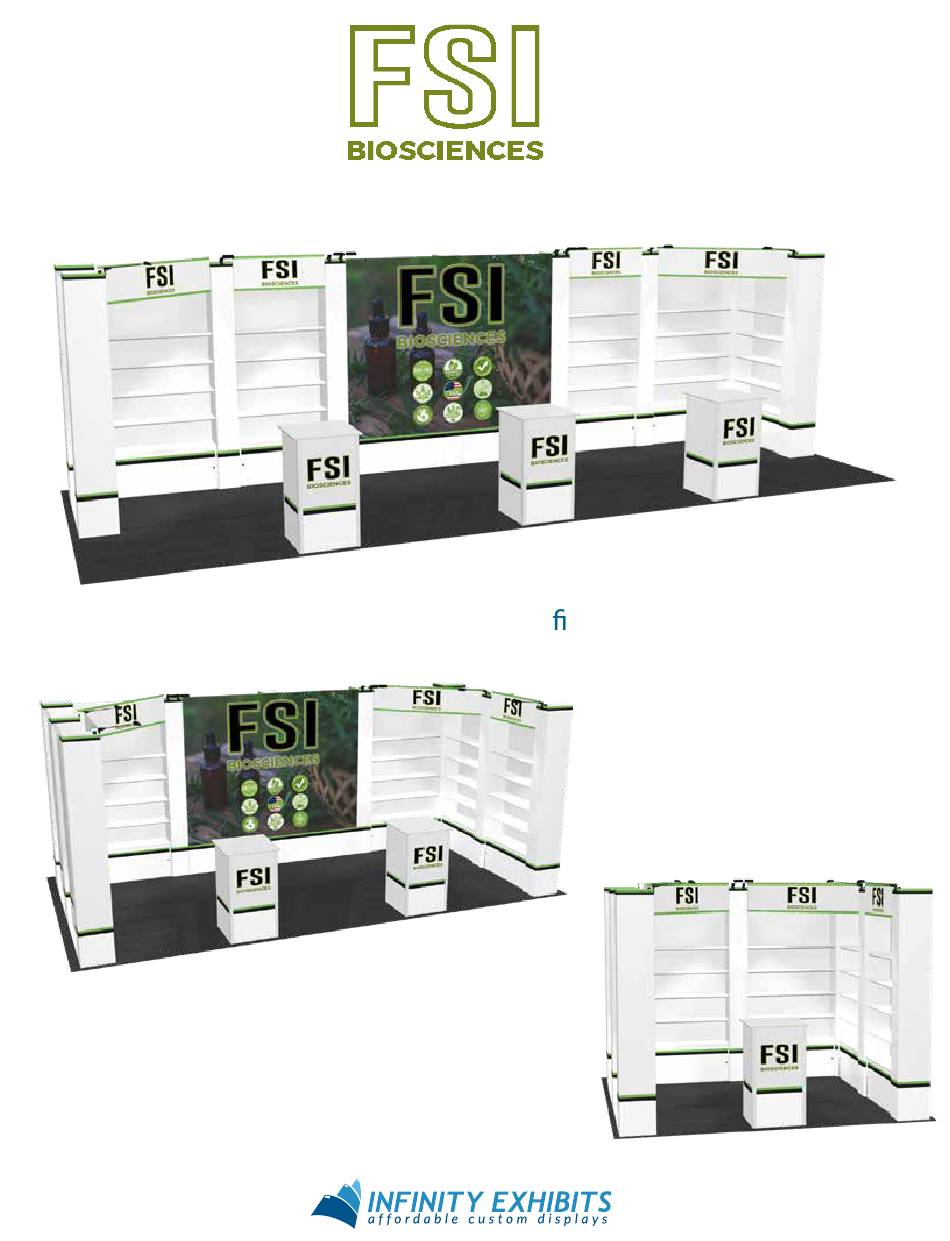

- Page 1 Display Setup Instructions 10’ x 30’ Display Booth Alternate Booth Con guration: 10’ x 20’ Display Booth 10’ x 10’ Display Booth...
- Page 4 InfiniLite 30-02 Assembly Instructions: Floor Plan: 10’x 30’ Steps to Assemble the In niLite Multi Section Exhibit Booth: Step 1: Assemble the Pillars, Corner Pillars and Short Pillars. Step 2: Place Pillars upright in their proper order and locations. Step 3: Attach Wall Panels to Pillars. Step 4: Install Shelf Support Bars into sides of Pillars.
- Page 5 InfiniLite 30-02 Assembly Instructions: Assemble Pillars. A) Unfold the Pillar Panels with the B) Attach Top and Bottom Supports front sides facing downward. to the back of the Pillars with Velcro. Top Support Bottom Support Pillar Panel (Front Side down) C) Fold Pillar around the Supports and attach with Velcro.
- Page 6 InfiniLite 30-02 Assembly Instructions: Assemble Corner Pillars. E) Unfold the Corner Pillar Panels with F) Attach Top and Bottom Supports to the front sides facing downward. the back of the Corner Pillars with Velcro. Top Support Bottom Support Corner Pillar Panel (Front Side down) G) Fold the Corner Pillar around the Supports and attach with Velcro.
- Page 7 InfiniLite 30-02 Assembly Instructions: The following Floor Plan identifies the locations of the Booth Components when the Display is assembled as a 10’x20’ Display Booth: Backwall Support Corner Pillar Back Cover Pillar Wall Panel 9” 14” 9” 9” 9” 14” 38”...
-
Page 8: Top View
InfiniLite 30-02 Assembly Instructions: The following Floor Plan identifies the locations of the Booth Components when the Display is assembled as a 10’x20’ Display Booth: Corner Pillar Back Cover Wall Panel Pillar 14” 9” 14” 9” 9” 44” 44” 44” 44”... - Page 9 InfiniLite 30-02 Assembly Instructions: Alternate Booth Assembly: The following Floor Plan identi es the locations of the 10’x10’ Booth Components. 14” 9” 14” 44” 44” 14” 14” Storage Storage TOP VIEW Floor Plan C: 10’x10’ 9” 9” 2’x2’ Pedestal 9” 9”...
- Page 10 InfiniLite 30-02 Assembly Instructions: Attach Wall Panels to Pillars. A) Unfold the bottom half of the Wall Panel, hold upright and attach to the side of the Pillar with Velcro. (Make sure that the Pillar and Wall Panel are at on the oor surface when attaching and that the accent stripes are aligned with each other.) Begin assembly from either the left or right side of the Booth.
- Page 11 InfiniLite 30-02 Assembly Instructions: Attach Wall Panels to Pillars (front connection). A) Unfold the bottom half of the Wall Panel, hold upright and attach to the side of the Pillar with Velcro. (Make sure that the Pillar and Wall Panel are at on the oor surface when attaching and that the accent stripes are aligned with each other.) Begin assembly from either the left or right side of the Booth.
- Page 12 InfiniLite 30-02 Assembly Instructions: D) Attach the Backwall Supports to back of Pillars at the bottom with Velcro. Support Stick Pillar Backwall Support Backwall Supports aid to stabilize the booth. Location of supports along back of booth. FSI Bioscience_Assembly Instructions Page 7...
- Page 13 InfiniLite 30-02 Assembly Instructions: Pillar Install Shelf Support Bars. A) Insert the shelf support bar into the designated openings in the Pillars. Velcro positioned Make sure that the Velcro on the bar is on top of bar Shelf Support Bar facing up to attach the shelf.
- Page 14 InfiniLite 30-02 Assembly Instructions: Light Support Bars and LED Light Detail: A) Light Support Bars are color coded in this Sample drawing to indicate Proper location. Additionally, the LED Lights are typically connected in series and powered within the Corner Pillars. (A sample con guration is shown below.) 44”...
- Page 15 InfiniLite 30-02 Assembly Instructions: LED Lamp Assembly Details Start assembling the LED Lamps at Step 1: Light clip on the Pillar the Pillars where the power will be back of the front Opening in connected. (Orient the Shelf Sup- Support Bar Pillar port Bars so that the velcro is facing up and the Clips are facing...
- Page 16 InfiniLite 30-02 Assembly Instructions: LED Lamp Assembly Details For the top shelf repeat the same Step 4: process, but note the Light support bar is hidden behind the signs. Step 5: Connect the power for the LED Lights along the power strips located inside the Pillars as shown.
- Page 17 InfiniLite 30-02 Assembly Instructions: Attach the Large Graphic to the middle Wall Panels and Center Pillar with Velcro. Fabric Graphic FSI Bioscience_Assembly Instructions Page 12...
- Page 18 InfiniLite 30-02 Assembly Instructions: Assemble the Corner Signs and attach to tops of Pillars with Velcro. A) Unfold the Corner Signs that are included in the display. Corner Sign Back side of Corner Sign B) Fold down the top sections of the Sign along the utes to form a triangle and Velcro closed. Close in place with Velcro Velcro Velcro...
- Page 19 InfiniLite 30-02 Assembly Instructions: Attach the Stem Lights to the tops of the Pillars. A) Place a wooden Light Support Stick on top of the proper Pillars as shown. (Use a ladder or step stool to access the top of the Pillar.) Secure the Stick to the back of the Pillar with a Binder Clip.
- Page 20 InfiniLite 30-02 Assembly Instructions: Assemble the Pedestals and place them within the Booth area. A) Connect the Pedestal Panels together with the 90° Channels. Attach the Panels together so that the Velcro is oriented on top in order to attach the Pedestal Top. Velcro on top Back Panel 90º...
- Page 21 InfiniLite 30-02 Assembly Instructions: Case Layout Divide the booth components and pack them in the cases in the following manner: Shipping Cases (x5) Case Booth Components Case Booth Components 1) Wall Panels 1) Pillars 2) Signs 2) Pillar Backs 3) Fabric Graphic 3) Tops &...
