Summary of Contents for IPG Photonics YLR-5000-WC

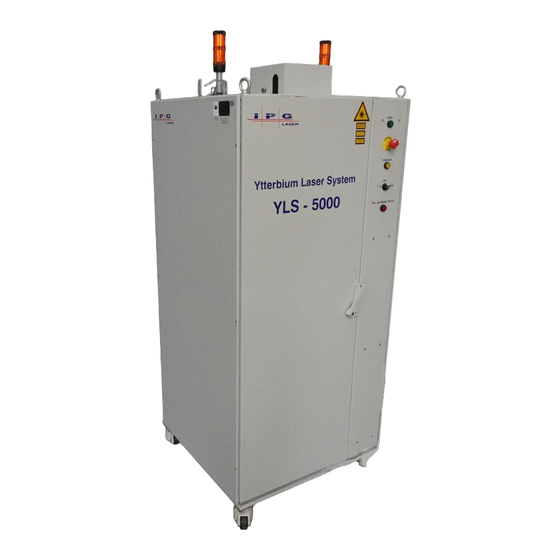

- Page 1 FIBER LASER MODEL: YLR-5000-WC PL0X0XXXX P21-010040_revA 09/13/2006 DCO 06-978...
- Page 3 Notices © IPG Photonics Corporation. All rights reserved. You may not copy, reproduce, transmit, store in a retrieval system or adapt this publication, in any form, in any media or by any means, without the prior written permission of IPG Photonics Corporation (IPG), except as allowed under applicable copyright laws.
-
Page 4: Table Of Contents
.....................35 VENTS INTRODUCTION ..............1 ..................36 OGFILES ) ..E WITCH IF APPLICABLE RROR OOKMARK NOT DEFINED .................37 OWER UPPLY SAFETY INFORMATION ........... 2 ) ..............38 HILLER IF APPLICABLE ..................39 ................. 2 ARDWIRING AFETY ONVENTIONS .....................40 IV > 5000 W 1070 ......... -
Page 5: Introduction
1. Introduction IPG YLR product line has been developed to meet industrial market demands on efficient reliable maintenance-free high power lasers. YLR products are diode – pumped ytterbium fiber lasers with output power scaled from 100 W up to 20000 W at wavelength region of 1070 –... -
Page 6: Safety Information
2. Safety Information Safety Conventions IPG Photonics use various words and symbols in this User‘s Guide that are designed to call your attention to hazards or important information. These include: WARNING: Refers to a potential personal hazard. ( Electrical) (... -
Page 7: Laser Classification
Laser Classification IV > 5000 W at 1070 nm This device is classified as a high power Class IV laser instrument under 21 CFR 1040.10. This product emits invisible laser radiation at or around a wavelength of 1070 nm, and the total light energy radiated from the optical output is greater than 5000 W per optical output... -
Page 8: Device Safety Label Locations
SUPPLY: XXX VOLTS X PHASE 60 HZ SHORT CIRCUIT RATING: XXX,XXX RATED FULL LOAD: XXA MAX. BREAKER SIZE: XXA WD NUMBER: MANUFACTURER: IPG PHOTONICS MODEL NAME: YLR-XXXX SERIAL NUMBER: PL0XXXXXX DATE OF MANUFACTURE: XXX. 20XX Identification Plate Location... -
Page 9: General Safety Instructions
General Safety Instructions WARNING: Exercise caution to avoid/minimize specular reflections because reflections at the laser’s wavelength are invisible. There are often numerous secondary beams present at various angles near the laser. These beams are specular reflections of the main beam from various surfaces. Although these secondary beams may be less powerful than the total power emitted from the laser, the intensity may be large enough to cause damage to the eye and skin as well as materials surrounding the laser. - Page 10 CAUTION: If the output of the device is delivered through a lens with an anti-reflection coating make sure that the lens is of good quality and clean. Please refer to the instructions described in “Cleaning the Quartz Block” of this document. Any dust on the end of the collimator assembly can burn the lens and damage the laser.
-
Page 11: Electrical Safety
Electrical Safety WARNING: The input voltage to the laser is potentially lethal. All electrical cables and connections should be treated as if it were a harmful level. All parts of the electrical cable, connector or device housing should be considered dangerous. Make sure this instrument is properly grounded through the protective conductor of the AC power cable. -
Page 12: Environmental Safety
Environmental Safety WARNING: NEVER look directly into a live fiber or collimator and make sure that you wear appropriate laser safety eyewear at all times while operating the product. Proper enclosures should be used to secure a laser safe work area. This includes but is not limited to laser safety signs, interlocks, appropriate warning devices and training/safety procedures. - Page 13 Laser safety equipment and Buyer‘s Guides http://www.photonics.com/Directory/ IPG Photonics recommends that the user of this product investigate any local, state or federal requirements as well as facility or building requirements that may apply to installing or using a laser or laser system.
-
Page 14: Description Of Your Device
3. Description of your device Certification IPG certifies that this instrument has been thoroughly tested and inspected, and found to meet published specifications prior to shipping. Upon receiving your device check the packaging and parts for any possible damage that may have occurred in transit. If damage is apparent please contact IPG immediately. -
Page 15: Laser Interfaces
Laser Interfaces - 11 -... - Page 16 AC Disconnect (Main Switch) This disconnect interrupts the main AC power in the event when side door is opened. Status Indicator Lights The top amber lamp is blinking when power is on, the bottom amber lamp is lit when the emission is on or possible. Start Button (Main Supply) This button controls the DC power to the laser.
- Page 17 Ethernet Interface This connector provides network connection to control the laser with a computer. Hardwiring Interface This connection provides digital interface with robots or hardwiring control of the laser. See System Installation for pin out. Safety Interface This is the safety interface for connection with external emergency circuitry, external key switch and start button.
- Page 18 Analog Interface Analog control connections are made here. See System Installation section for pin out. Laser Water Outlet Connection must be made to the Laser Coolant Inlet of the Chiller. Laser Water Inlet Connection must be made to the Laser Coolant Outlet of the Chiller. Identification plate Plate lists input power specifications and displays laser identification.
-
Page 19: System Installation
4. System Installation Precautions Refer to the specification for proper electrical power requirements. Before switching the power on, make sure that the incoming AC voltage is equal to the level noted in the specification. Before switching the power on, make sure that the cooling water tubes are properly connected to the inlet/outlet ports of the laser with the water supply. -
Page 20: Safety Interface Connector Pin
Safety Interface Connector Pin Out Harting Han 25 D Female Assignment Description Potential free input. + 24 VDC enables Emission Enable emission. The input is active, if Hardwiring interface not used. Emission Enable Return Emission ON Monitor Potential free output. A3 and A5 closed when Emission ON Monitor emission enabled. -
Page 21: Hardwiring Interface Connector
Hardwiring Interface Connector Pin Out Harting Han 64 D Female Assignment Description High active. With this signal one of several external controllers (robots) can request laser power. This function is only valid if several I/O cards are installed. If only one robot is Laser Request connected to the laser, this bit always must be set high during the control process. - Page 22 Program Active Laser is executing the laser program. Program End If set high the laser program finished. See A2 (program start). Program Interrupted Set high if program interrupted. A4 (reset) resets this pin. Synchronization Can be used with the laser program. Output Warning Output Spare Output...
-
Page 23: Optical Connector Installation
Optical Connector Installation A conical guide positions the fiber connector into the interfacing unit. The connector is locked in position by a bayonet that also ensures correct orientation. safety interlock system connects only when the bayonet is closed, via the two contact rings of the connector. -
Page 24: Uide
Optical Connector Cleaning Guide It is highly important that a fiber connector is checked for dust and dirt prior to connection with an optical head or beam coupler. CAUTION: The use of a dirty, or improperly cleaned, fiber connector can lead to serious damage to the laser. - Page 25 The following procedure has to be followed for cleaning fiber connectors Switch off laser main power and start the beam switch. Warning: When the beam switch is connected to current there is a short flash of the beam switch diode laser. Don‘t look at the fiber end while the beam switch is started.
- Page 26 Use the additional light source. It has to be installed so that the light is reflected from the surface into the microscope. This will be achieved if you can see the reflection from the surface in a bright golden shine. IMPORTANT: Look at the surface always at a slight angle to improve visibility.
- Page 27 CAUTION: Do not touch the top of the cleaning bud with fingers and use every bud only once. Repeat the cleaning process (10.1 – 10.3) with acetone instead of Isopropanol. 12.4. The cleaning procedure can always be stopped if a good result has already been achieved.
-
Page 28: Optical Connector Cleaningg
Initial Power up Sequence -Make all electrical connections with the laser and external devices prior to applying power to the laser. -Insert the key into the main power switch on the front panel of the Laser. -Properly align the output fiber into the delivery optics. WARNING: NEVER look directly into a live fiber or collimator and make sure that you wear appropriate laser safety eyewear at all times while operating the product. - Page 29 Operating the High Power Laser (HPL) in Remote (Hardwiring) Mode The following steps must be completed on the Safety Interface: o Pins A8 and A9 must be connected with a switch. This is a remote power key switch and must be connected in addition to the main key switch.
-
Page 30: Back Reflection Prevention
Back Reflection Prevention CAUTION: Back reflection into the laser cavity can degrade the laser performance or cause laser failure. The laser is designed to accommodate normal back reflections exhibited from use of your laser output, whether it is outfitted with a connector, optical coupling unit or/and collimator. -
Page 31: Lasernet Program Description
5. LaserNet Program Description Installation LaserNet program is used for controlling IPG high power fiber lasers. Up to 100 lasers can be controlled by the program by using fast Ethernet. If only one laser should be controlled the connection can be made with a crossed Ethernet cable. Computer Requirements: Minimum Recommended... - Page 32 Under Settings there is an option called Control. This is used to enable/disable control of the laser, emission possibilities and reset rights. LaserNet program contains following windows: 1. ―Status‖ – main program window. The main laser parameters are listed in this program.
-
Page 33: Status Page
Status Page Signal Function Main power supply ON Active when main power supply is ON. It is not possible to switch emission ON without this signal. If this signal no present –―Laser ready‖ signal also stays low. It is not possible to get this signal active if: 1. - Page 34 3. Defect in laser combiner detected (signal ―Coupler photodiode1‖ or ―Coupler photodiode2‖ on the Alarms Page) 4. One of the laser cabinet doors is opened (signals ‖Rear door open‖ and ―Front door open 5. No command for laser emission is presented. 6.
-
Page 35: Alarms Page
Alarms Page Signal Description E-Stop Safety circuit is open. If this signal disappears laser emission and power supply will be switched off and ―Laser ready‖ will be set to low, but ―Laser error‖ will not be set high Laser overheat Temperature of one or several laser modules is higher 35ºC. - Page 36 Laser module unconnected Communication error between laser module processor and main laser processor. Check laser module connection cable. If communication is OK green LED on the module will blink. Coupler photodiode1 Signal from the laser combiner. Back reflection from the workpiece was detected.
- Page 37 Control Page “Power/Current” slider. Using this slider you can set required laser power or current (it depends if power stabilization or current stabilization mode is set). Under the slider there is process indicator. It shows what power/current is set. In a small window power/current are represented in numerical form. Current setting is possible in the range of 10…100%.
- Page 38 “External control”. By pushing this button you activate External modulation mode. To get laser emission in this mode you have to: 1. Set required laser power (in percents or in watts) 2. Press ―Emission‖ button 3. Supply external signal to A1 (+) and A2 (ground) pins of Safety interface connector. 4.
-
Page 39: Events Page
Events Page On this page all interesting events are listed. For every event appearance time is fixed. To remove old events press right mouse button and choose ―Delete all events‖. HINT: Please delete all the events weekly. This will reduce the time that is needed to open this window. The data will still be saved inside laser on the internal HDD. -
Page 40: Logfiles Page
Logfiles Page This page is used for the service. Using this page it is possible to get complete information about laser system performance. You can change the laser time by pressing the change button and write the local time and date. This has to be done so that the correct working and emission time can be calculated. -
Page 41: Power Supply Page
Power Supply Page On this page you can see main power supply parameters. Q1-Q4 parameters meaning are listed in the table: Status Comments Normal Operation Overheating Output Overvoltage All these alarms are associated with external Output Overcurrent/Short circuit parameters/environment Input Undervoltage/Phase loss (Water flow, input voltage, etc.) Interlock Disconnected Reserved... -
Page 42: Chiller Page (If Applicable)
Chiller Page (if applicable) On this page you can see current water temperature for laser cooling and for external optics and the chiller status. If these values are not in the specified range as it is displayed in brackets ―Laser ready‖ status will be removed until values will be again in the right range. -
Page 43: Hardwiring Page
Hardwiring Page In this window the status of all hardwiring bits is shown. At high signal the bit will be ignited in green. For detailed description check the hardwiring description in System Installation section of this manual. HINT: Inputs 1 – 15 correspond with pins A1 – A15 of Harting Han 64 D Connector. Inputs 16 –... -
Page 44: Options
Options On this page it is possible to activate single optical module. Check the Single module mode and choose the module you want to activate. After the activation you can start the emission out of the activated module by using the control window. (Normal, external, analog, LaserProgram or hardwiring control is possible). -
Page 45: Operation
6. Operation Laser can be operated in a combination of Local mode, Modulation Control, Analog Control, Laser Program or Remote Mode, Hardwiring Control, Analog Control and Laser Program. Hint: After switching on the laser controller by turning the Key Switch to Local or Remote Mode it can take up to two minutes until the controller is active. -
Page 46: Modulation Control
Modulation Control While laser is in Local Mode it is possible to externally enable/disable emission with frequencies up to 5 kHz. For operation in this mode additional external signal is required. 5-24 VDC signal required to switch ON laser emission. 1. -
Page 47: Remote Mode
Remote Mode By turning the Key Switch counter clockwise you put the laser to Remote/Robot Mode. Without integration with external control system it is not possible to activate the power supply and turn emission on, digital so-called Hardwiring interface must be used to control the laser. - Page 48 4. Laser ON, Laser is ON and Laser ready signals 5. Analog control and Analog control is ON signals 6. Internal control and Internal control is enabled 7. Program start and Emission ON for Program number = 0 44 -...
- Page 49 8. The next timing diagram is applied to normal process flow, when laser program is started and terminated without errors or forced ―Program stop‖ signal. 9. The next timing diagram is applied to situation, when forced ―Program stop‖ signal is issued.
-
Page 50: Using Laser Programs
Using Laser Programs Program editor: Open editor by tools/program editor in the LaserNet program. No. corresponds with the line number of the program (maximum 100) and is set automatically. In the CMD column the commands of LP (Laser program) can be chosen. For a new command click with left mouse button there and choose command. - Page 51 Structure of the laser program (LP): Each LASER PROGRAM can be represented as three-column table. The codes of commands are specified in the first column, parameters of those commands are specified in the second and in the third columns. Total number of lines in each LP is limited by 100 (it is defined by size of internal FLASH). The maximum number of LPs is limited by 50.
- Page 52 Active synchronization input or timer is specified by the first parameter, type of event is specified by the second parameter. 5. Go to another command line This command performs ―GOTO‖ to another command (line of LP), specified in the first parameter if the counter specified in the second parameter is not zero.
- Page 53 Table of commands of Laser Program (LP) Command Parameter 1 Parameter 2 Remarks Name STOP No parameters 0 – max power Parameter 1 – time in ms 0 - 65535 Parameter 2 – power in W 0 – max power Parameter 1 –...
- Page 54 Example 1 of the LP (Sequence of pulses). Line Command Parameter Parameter Remarks Sets the Synchronization Output to low level. 1000 2000 Reaches output power of 2 kW in 1 sec. EXTPWR ANALOG Switches-over to analogue interface Sets the Synchronization Output to high level. WAIT TIME Wait 500 ms.
- Page 55 Example 2 of the LP. Line Command Parameter 1 Parameter 2 Remarks 3000 Reaches output power of 3 kW in 0.5 sec. 4000 Reaches output power of 4 kW in 0.5 sec. WAIT Wait for transition from low to high level on Synchronization Input 2000 Reaches output power of 2 kW in 0.5 sec.
-
Page 56: Specifications
7. Specifications This section lists specifications of the product. Specifications describe warranted performance under the temperature range 25ºC +/- 5ºC and relative humidity <80% (unless otherwise noted). All specifications apply after the instrument‘s temperature has been stabilized after 1 hour of continuous operation. Optical Characteristics Characteristics Test conditions... -
Page 57: General Characteristics
General Characteristics Parameters Test conditions Min. Typ. Unit Laser 400-480V/3P+PE Operation Voltage Beam Coupler 220V single phase Frequency 50/60 Power Consumption = 5 kW Operating Temperature Range + 10 + 50 Humidity: without conditioner T < 25 C with built-in conditioner T <... -
Page 58: Cooling Specification
Cooling Specification Item Parameter Value Unit Flow 30-40 l/min Pressure 2 - 4 Water for laser cooling Temperature 20 - 30 Flow 5-10 l/min DI water for the external optics cooling Pressure 1,5 - 3 Temperature 20 - 30 54 -... -
Page 59: Product Certification
8. Product Certification Production Confirmation: Date: 06/01/06 Model: YLR-5000 Sales Order: Serial Number: PL0X0XXXX Customer Selected: Wavelength = 1070 - 1080 Input Termination: Not Applicable Output Termination: Options: See Specifications Notes: See Specifications Checked By: 55 -... -
Page 60: Warranty
9. Warranty General Warranty All products are warranted by IPG against defects in materials and workmanship for the period of time as set forth on the applicable purchase order or in the specifications starting with the date of shipment. In the absence of a specified period of time, such warranty is one year from date of IPG shipment. -
Page 61: Software
Software Software License Agreement for LaserNet™ IPG Laser GmbH® Single Use License PLEASE READ THIS SOFTWARE LICENSE AGREEMENT (‖LICENSE‖) CAREFULLY BEFORE USING THE SOFTWARE OR THE EQUIPMENT. BY CLICKING ON THE "ACCEPT" BUTTON, USING THIS SOFTWARE, OR USING THE EQUIPMENT THAT CONTAINS THIS SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. - Page 62 ACCURACY AND EFFORT IS WITH YOU. EXCEPT FOR THE LIMITED WARRANTY ON MEDIA SET FORTH ABOVE AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE IPG SOFTWARE IS PROVIDED ―AS IS‖, WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW, IPG AND ITS SUPPLIERS FURTHER DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF TITLE, NON- INFRINGEMENT, ACCURACY, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, AND ANY WARRANTIES THAT MAY ARISE...
- Page 63 END USER LICENSE AGREEMENT You have acquired a device ("EQUIPMENT") that includes software licensed by IPG Photonics Corporation or its affiliates (collectively, ―IPG‖) from an affiliate of Microsoft Corporation ("MS"). Those installed software products of MS origin, as well as associated media, printed materials, and "online"...
- Page 64 9. SOFTWARE as a Component of the Equipment-Transfer. This license may not be shared, transferred to or used concurrently on different computers. The SOFTWARE is licensed with the EQUIPMENT as a single integrated product and may only be used with the EQUIPMENT. If the SOFTWARE is not accompanied by EQUIPMENT, you may not use the SOFTWARE.
- Page 65 20. End User Proof of License. If you acquired the SOFTWARE on a EQUIPMENT, or on a compact disc or other media, a genuine Microsoft "Proof of License"/Certificate of Authenticity label with a genuine copy of the SOFTWARE identifies a licensed copy of the SOFTWARE.
-
Page 66: Service And Repairs
IPG. All product returns require a Return Merchandise Authorization (RMA) from IPG. To obtain an RMA, call the Quality Manager of IPG Photonics Corporation at 508-373-1100. If you return a product with a RMA, please follow these procedures: ...
