Step 1:
Read TMC Pre-Survey Guide.

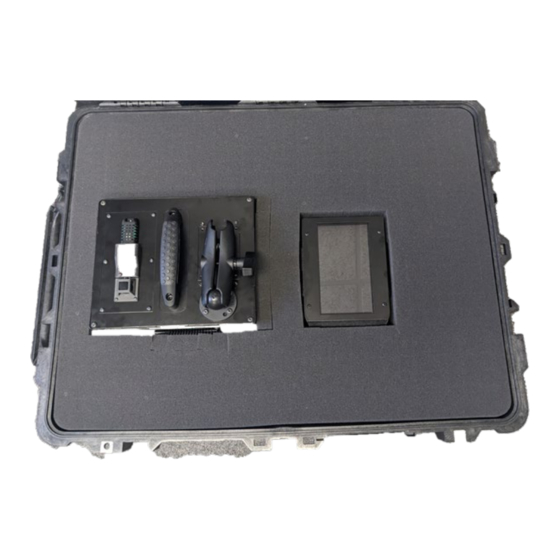

Place MAV-Sense
Step 2:
Loosen adjustable arm. Insert and position display unit at comfortable angle. Tighten
adjustable arm.
Step 3: Connect Micro USB and
HDMI cords from main unit to
connectors on downward facing edge
of display
Page 1
Site Survey Quick Start Guide
in desired location.
Step 4:
front of MAV-Sense
Extension cord (not included) may be
required
Micro USB
HDMI
Pre-Survey Guide
Connect 6 ft power cord from
Step 5:
Switch master power to "on" on
rear of the MAV-Sense
It may take up to a minute for an image to
appear on the screen
Setup Video
to wall outlet.
3/13/2024 REV 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TMC AMETEK MAV-Sense
Summary of Contents for TMC AMETEK MAV-Sense
- Page 1 Site Survey Quick Start Guide Step 1: Read TMC Pre-Survey Guide. Place MAV-Sense in desired location. Pre-Survey Guide Setup Video Step 2: Loosen adjustable arm. Insert and position display unit at comfortable angle. Tighten adjustable arm. Step 3: Connect Micro USB and...
- Page 2 Step 10: Place included shipping label over top of the label used to send kit. Use included zip-ties to seal up the shipping case. Bring to shipping dock or nearest carrier facility and return to TMC. For more information, please contact TMC...
