JBH FNS01 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FNS01
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for JBH FNS01

Summary of Contents for JBH FNS01

  • Page 1 FNS01 User’s Manual...
  • Page 2 PREFACE Dear Users, We thank you very much for your choice of this electric mobility scooter. The manual is to assist you operating and maintaining the scooter, please go through it with necessary information in mind prior to use the scooter. Any problem which is not covered in here or any confusion of the manual, feel free to communicate with your local dealers or distributors.

  • Page 3: Table Of Contents

    CONTENTS ......................Symbols ..................Security Guidance ..............Product Related Explanation ....................Specifications ................. Specification Diagram List of contents in packing / Battery mounting and dismounting ..............Main Operational Parts Function 10-14 15-18 ....................Folding And Open Battery And Charging ..................19-21 .................

  • Page 4: Symbols

    SYMBOLS Warning Attention, see Beware of potential hazard instruction for use Refer to instructions for Refer to instructions for use - Mandatory use - Recommended Failure to read the instruc- Failure to read the instruc- tions for use could intro- tions for use could intro- duce a hazard duce a hazard...
  • Page 5 Temperature limitation Humidity limitation Store in clean & dry place Protect from heat and ra- protected from rain, snow, dioactive sources ice, salt and water. Danger of explosion Package Number Keep dry Foot Switch Equipotential CF application part Fuse Switch Volume control PCTB Do use cel phone, remote...

  • Page 6: Security Guidance

    SECURITY GUIDANCE The user must perform all of the procedures suggested in this manual. This product is suitable for users with age between 18 to 75 years old. Do not drive on public highway. No over cross any gap which is over 100 mm (3.94") in width. Never try to overpass obstacle which is over 40 mm (1.57") in height.

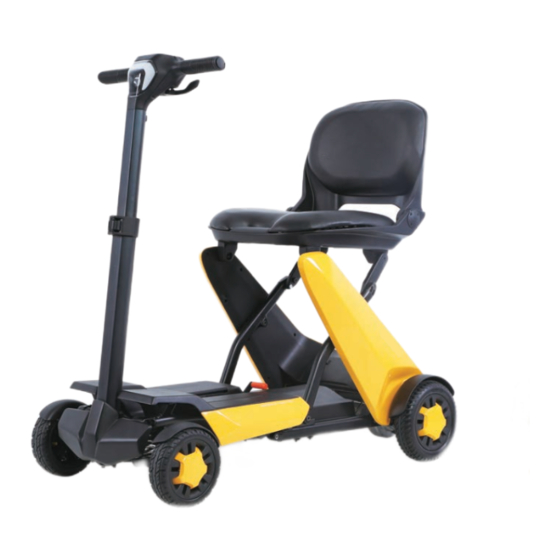

  • Page 7 The Scooter (Model FNS01) has a base with alumini- um alloy frame, two front wheels, two rear wheels, a seat, an adjustable steering post, an electric motor, an electromagnetic brake and 2 rechargeable Lithium-Ion Batteries.

  • Page 8: Product Related Explanation

    Anyone with paraplegia below the chest, osteoporosis or hypochondriasis is prohibited to use the product. 【Frame No.】 FNS01-2018-05-001 Model no. Year Month Serial no.

  • Page 9: Specifications

    SPECIFICATION Model FNS01 Material of Frame Aluminium Alloy Unfold Size (L * W * H) (mm/inch) 946 × 495 × 926 mm (37.2"×19.5"×36.5") Fold Size (L * W * H) (mm/inch) 418 × 495 × 693 mm (16.5"×19.5"×27.3") Load Capacity...

  • Page 10: Specification Diagram

    SPECIFICATION DIAGRAM Length of backrest 295mm Height unfolded 926mm Height of seat cushion 560mm Footstep height Ground clearance 20mm 208mm Height of top of footstep to ground 171mm Unfolded length 946mm Armrest width Seat width Width 435~475mm 395mm 495mm Armrest (Optional accessary) Seat depth Folded length...
  • Page 11 Armrests are not included in standard production, an option- al accessary for request.

  • Page 12: List Of Contents In Packing / Battery Mounting And Dismounting

    LIST OF CONTENTS IN PACKING / BATTERY MOUNTING AND DISMOUNTING Packing list · · · Main device * 1 Battery * 2 Charger * 1 · · · Tools * 1 Remote control * 1 Users manual * 1 Battery mounting and dismounting Dismounting Mounting Slide in battery from one end till it is...

  • Page 13: Main Operational Parts Function

    MAIN OPERATIONAL PARTS FUNCTION Power Switch The scooter has battery protection switch on rear side(Refer to photo 2). It is recom- mended the switch off if scooter is not used for more than 4 days, keep the switch on while scooter is used daily. Step 1 Please push the rear power protection switch for turning power on and off, if scooter is not going to be used for more than 4 days.
  • Page 14 Handle Bar Set The handle bar set is including control panel (with LCD display of battery power, driving speed km/h, power switch, speed setting knob and horn.), handle, direc- tional control lever. The major operation- al functions are shown. (Refer to Photo Photo 4 B a t t e r y p o w e r a n d s p e e d a r e shown on LCD screen while power...
  • Page 15 Direction Control Lever Forward and backward control are under Control Lever. Gently hold handle with both hands. Scooter goes forward by pulling left of lever to the back (or push right lever to the front) with fingers. (Refer to Photo 7). Goes backward by pulling right of lever to the back (or push left lever to the front) with fingers.
  • Page 16 Headlight swtich: Push light swtich for turning on and off headlight. USD charging port: Available for charging other electronic devices. Horn: Horn will be on by keeping pressing the horn button. Sound the horn in time under any necessary condition during driving. Headlight Swtich USB Charging Port Horn...
  • Page 17 Hand Brake Lever Hand Brake on and off can be done by switching the lever for manual or electric con- trol. (Refer to Photo 9). Electric Control Mode Push down red lever at the back of scooter for electric control. Manual Control Mode Pull up red lever for manual control.

  • Page 18: Folding And Open

    FOLD AND UNFOLD The scooter is designed with 3 ways of fold and Unfold for customers choices de- pending on preferences and circumstances. They are Automatic, Electric Switch Manual for your choice, please go through the instruction of these 3 ways under here.
  • Page 19 Electric Switch for Fold / Unfold Touch section " " or " " of switch button down at lower back of scooter till com- pletly unfold or fold the scooter. Unfold Fold Pause Load stuff into compartment under seat, which is very close to fold and unfold con- trolling switch, may cause mistake touching of the fold and unfold controlling switch during operation of scooter.
  • Page 20 Step Then lift up the lever up vertically till scooter is fully folded. Lower down steering post. Step Manual Unfold Step Flip steering post locking to side to higher up steering post and lock it.
  • Page 21 Pull of push steering post to the front of scooter for unfolding. Step Once scooter is fully unfolded, flip up seat back. Step Step Push the hand lever under seat backward to lock unfold status.

  • Page 22: Battery And Charging

    Charge battery to full level and take apart battery from scooter if not going to use your scooter for long period of time. While FNS01 comes to battery charing, open the cap of charing port on end of handle bar and connected with charging plug till the battery is full charged. (Refer to photo 10).
  • Page 23 Do not charge continuously over 6 hours through charging port of controller to prevent over charging while two batteries are inserted. Never charge over 3 hours when it is only one battery. Make sure charger plug is fully plug in the charging port of scooter. Disconnect AC power source after fully charge of battery will keep the life of Lith- ium Ion Battery longer.
  • Page 24 Some knowledge on how charger charge battery Large input of current from charge to battery at low voltage level, small current given from charger when battery is close to full. Almost zero or little current given to battery, continuously charging would not cause over charge, however, it is suggested charge duration not over 8 hours.

  • Page 25: Battery Safety And Life Guide

    BATTERY SAFETY AND LIFE GUIDE The reason of weak on new battery The scooter use deep-cycle battery under special chemical technology that allow battery quick to be charged with longer time use after full charge. Battery along with scooter packing is charged full, however, the performance of initial power will be reduced in the process of transportation, such as temperature variation.

  • Page 26: Instruction Of Operation

    INSTRUCTION OF OPERATION Before operating instruction A. Make sure battery is fully charged. B. Familiar with the route condition including crowd, animal and potential obstacles. C. Always keep away from uneven and sloppy terrain. D. Check if is fully inserted and the brake lever switch is pushed. E.

  • Page 27: Warranty

    WARRANTY This warranty is valid from the date of product shipped out from factory and valid for the replacement of disfunctional parts only. Any parts under warranty will be replaced and shipped to your door. Any service and labor fees, if applicable, to replace parts under warranty must be paid by the user.

  • Page 28: Trouble Shooting And Maintenance

    TROUBLE SHOOTING AND MAINTENANCE Digital display on top control panel has reminding icone and code shown in case any fault of scooter, the factor of correspsnding factors and trouble shooting meoth- ods are listed below under codes. Reminding icon of fault Red icon flash rule is: N u m b e r o f f l a s h + s t o p + Repeat flash form a set of code,...
  • Page 29 Flash Description 2 - 4 Main Contacter Driver On Fault 3 - 1 Drive inhibit / OONAPU / Proc or Wiring Fault 3 - 2 Brake On Fault 3 - 3 Precharge Fault 3 - 4 Brake Off Fault 3 - 5 High Pedal Disable Fault 4 - 1 Current Sense Fault...
  • Page 30 The battery of electric scooter is an extremely important part, the battery life determines the service life of the scooter. Try to keep the battery saturated after each use, to develop such a habit, it is recommended to conduct a deep discharge every month! If you don't use a electric scooter for a long time, place it in a place to avoid bumps and pull out the battery...
  • Page 31 Electric scooter should avoid scratch- ing seat leather and PU handrails and plastic ornaments with sharp objects, thus affecting the beauty of the whole vehicle (Refer to photo 15). Photo 15 Electric scooter vehicle should be placed in a place where the sun can not shine, please avoid sunlight, otherwise it is not only harmful to the battery, but also has a direct impact on the service...
  • Page 32 Maintenance frenquecy WARRANTY Daily check Turn off the controller, check the lever, make sure the lever is not bent and broken, and be sure to retiun to it when you release it. Check the nibber base of the lever for damage. Just check the base and do not repair it. If you have any questions, please contact your dealer.
  • Page 33 Storage This product should be stored in a cool and dry environment. Do not store it at the extreme temperature. If it cannot be stored under the above conditions, it may cause rusting of the scooter, and damage to the electrical system. Storage conditions: temperature: -40 ~ +65 degree C；Relative humidity: W80%；Atmo- spheric pressure: 86kPa ～106kPa.

  • Page 34: Electromagnetic Interference & Compatibility

    The guide and the manufacturer's statement are detailed in the annex. FNS01 electric scooter should not be used close to or stacked with other equip- ment. If it must be used close to or stacked, it should be observed and verified that it can operate normally under the configuration used.
  • Page 35 Guidelines and manufacturer's statement-Electromagnetic Emission FNS01 electric scooter is expected to be used in the electromagnetic environment specified below, and the buyer or user of the electric scoote shall ensure that it is used in this electromagnetic environment. Launch test...
  • Page 36 Guidelines and manufacturer's statement-Electromagnetic Immunity FNS01 electric scooter is expected to be used in the electromagnetic environment specified below, and the buyer or user of the electric scooter shall ensure that it is used in this electromagnetic environment. Electromagnetic Anti-interference...
  • Page 37 FNS01 electric scooter is expected to be used in the following specified electromag- netic environment, and the purchasers or users of NPL001、NPL002、NPL003 elec- tric scooters shall ensure that it is used in this electromagnetic environment： Coincidence Electromagnetic measurement Test Level...
  • Page 38 150 kHz to 80 MHz. Recommended separation distance between portable and mobile RF communica- tion equipment and electric scooter. FNS01 electric scooter is expected to be used in an electromagnetic environment where radiated RF disturbances are controlled. According to the maximum output...

  • Page 39: Warranty Statement

    WARRANTY STATEMENT Warranty Registration Card User Name ID No. Address Phone No. Model Product No. Purchasing Date (Month) (Day) (Year) Manufacturer Distributor (Stamp or signature) Distributor (Phone, Address) Manufacturer is responsible for any issue on material, manufacturing defect or design effect of the scooter while dealer will take care for maintenance and service. Warranty excludes: A.
  • Page 40 SUNGO Europe B.V. Fascinatio Boulevard 522, Unit 1.7, 2909VA Capelle aan den IJssel, The Netherlands FNS01...
