JBH LifeStyle CarbonLite FBC01 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for JBH LifeStyle CarbonLite FBC01

Summary of Contents for JBH LifeStyle CarbonLite FBC01

  • Page 1 User Manual...
  • Page 2 The company reserves the right to make any change and improvement without prior notice. It reserves and also the property of models and forbids their reproduction, even partial.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Preface................... Label of the Scooter..............Symbols................. Security Guidance..............Major Parts................Contents in Scooter Carton............Specification................Main Operational Parts Function......... 10-12 Battery and Charging............13-15 Battery Safety and Life Guide..........Instruction of Operation............17-19 Trouble Shooting and Maintenance........20-25 Guidelines and Manufacturer's statement-Electromagnetic Emission........

  • Page 4: Preface

    PREFACE Dear Users, We thank you very much for your choice of JBH Medical. The manual is to assist you operating and maintaining the scooter, please go through it with necessary information in mind prior to use the scooter. Any problem which is not cover in here or any confusion of the manual, feel free to communicate with your local dealers or distributors.

  • Page 5: Label Of The Scooter

    LABEL OF THE SCOOTER Label of the scooter Symbols on the label represent the meaning as below: Attention, see Manufacturer instruction for use Product fulfill Consult instructions for WEEE directive Serial number Date of manufacture Type BF applied part Batch number Use until year &...

  • Page 6: Symbols

    SYMBOLS Don’t use when Humidity limitation UKCA mark Water proof grade packing damaged Store in clean & dry Consult instructions place protected from Type BF applied part Temperature for use rain, snow, ice, salt imitation and water. Store in clean & dry place protected from Danger of explosion rain, snow, ice, salt...

  • Page 7: Security Guidance

    SECURITY GUIDANCE Security Guidance An authorized Dealer or qualified technician must perform the initial setup of this scoot- er and must perform all of the procedures in this manual. This product is suitable for users with age between 18 to 75 years old. Do not drive on public highway.

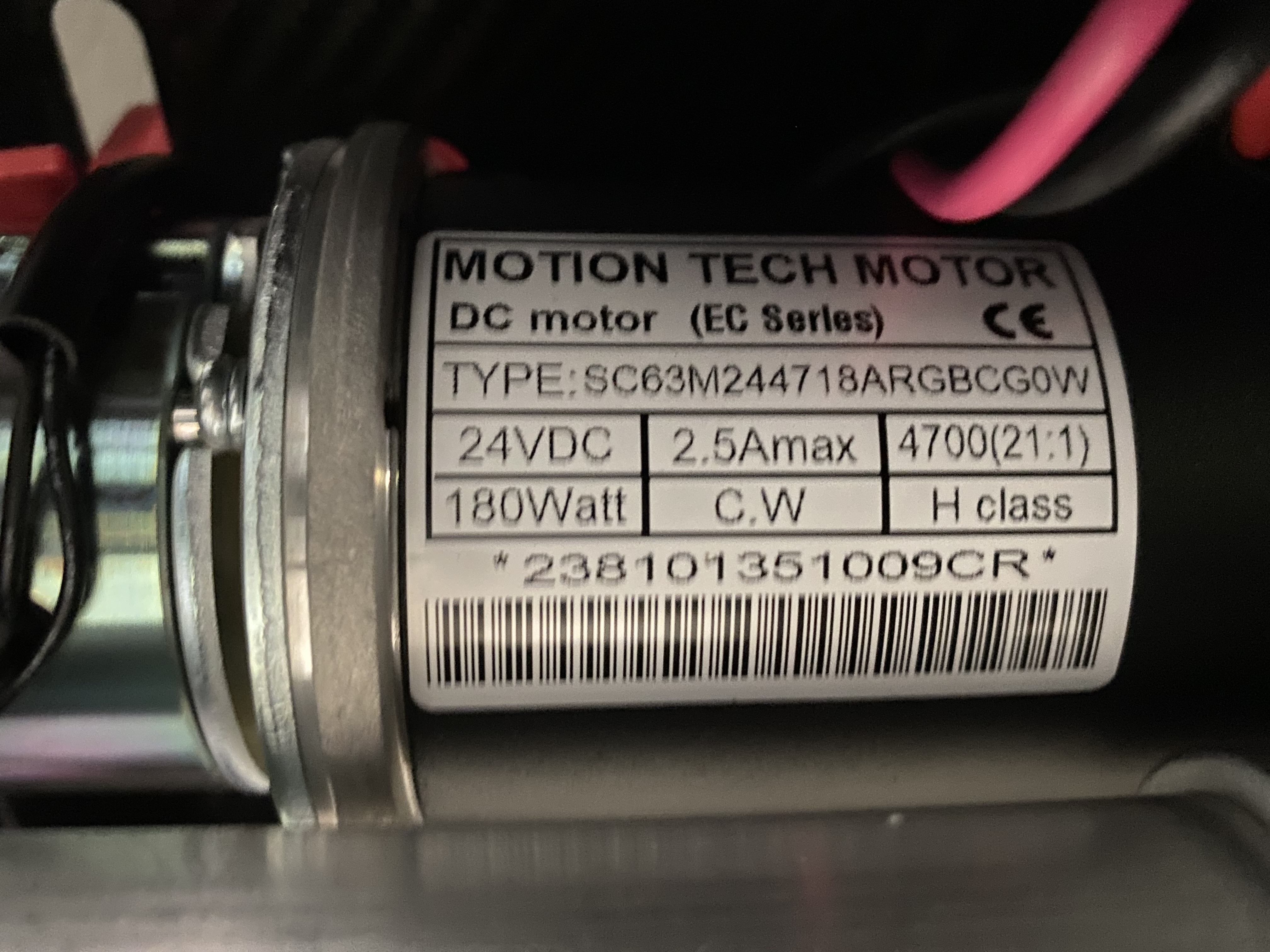

  • Page 8 SECURITY GUIDANCE Statement Indications for use: It is a motor driven, indoor and outdoor transportation vehicle with the intended use to provide mobility to a disabled or elderly person limited to a seated posi- tion. The Scooter (Models: FBC01) has a base with Carbon Fiber frame, two front wheels, two rear wheels, two anti-tip wheels, a seat, an adjustable steering column, a tiller console, an electric motor, an electromagnetic brake, 2 rechargeable Lithium-Ion Batteries with an off-board charger.

  • Page 9: Major Parts

    MAJOR PARTS Control panel Front Decorating Cover Battery Top Steering Post Rear Wheel Middle Steering Post Transaxel Buttom Steerng Post Rear Cover Rear Cover Buttom Steerng Post Front Cover Seat Supporting Frame Buttom Steering Post Anti-tilt wheel Front Wheel Armrest Fixing Pipe Assembly Front Bumper Assembly Seat Base Plate Steering Axel...
  • Page 10 MAJOR PARTS The scooter is using Solid Tire which does not require for any punching all time. Front tyre Rear tyre www.lifestyleandmobility.co.uk...

  • Page 11: Contents In Scooter Carton

    CONTENTS IN SCOOTER CARTON Upon receipt of the scooter, please open carton packing and check if ther followings are included: Safety belt 1 PC Hex Wrenches 2 PCS Four-hole wrench 1 PC Power transfer connection 1 PC Charger User’s Manual 1 PC Battery 2 PCS Photo 2.

  • Page 12: Specification

    SPECIFICATION Unfold Size L 890 W 480 H 800 mm Fold Size L 400 W 480 H 680 mm Packing Size L 480 W 560 H 780 mm Front wheel 6.5" × 2" PU wheel Rear wheel 7.5" × 2.15" PU wheel Maximum speed 3.7 mph (0-6 km) Gradient...

  • Page 13: Main Operational Parts Function

    MAIN OPERATIONAL PARTS FUNCTION Handle Bar Set The handle bar set including Control Panel ,Key Switch, Speed Setting Knob and Handle, Directional Control Lever. The major operational functions are set. Photo 5. Handle Bar Set Control Panel Notice Humidity of ambient environment signifi- cantly affect on the operational function main parts.
  • Page 14 MAIN OPERATIONAL PARTS FUNCTION Dispay Battery Power is shown on display while power is turned on. Photo 9. Dispay Direction Control Lever Forward and backward control is under Control Lever. a. Gently hold handle with both hands. b. Scooter go forward by pulling lever on the right with fingers.
  • Page 15 MAIN OPERATIONAL PARTS FUNCTION Controller Located under rear cover which transfer the signal from control panel to motor, brake and hub. Keep controller under low moisture environment and Notice make sure it is in dry condition before operation. Electric / Manual Mode Switch Lever Hand Brake on and off can be done by switching the lever for manual or electric control.

  • Page 16: Battery And Charging

    BATTERY AND CHARGING The scooter is designed for maintenance free with long usage of Lithium Ion Battery. It is suitable to be Charged with 24V 6 Ah charger. Fully charge the battery 5 hours is good for battery usage. At least charge once in every 3 month.
  • Page 17 BATTERY AND CHARGING Charge battery directly The battery can be charged directly with house poer source, simple connect the termial of battery with power source, charging can be started. Caution Keep charging time of single battery in 3 hours when it comes to off board charging to avoid over charging.
  • Page 18 BATTERY AND CHARGING Some knowledge on how charger charge battery Large input of current from charger to battery at low voltage level, small current given from charger when battery is close to full. Almost zero or little current given to battery, con- tinuously charging would not cause over charge, however, it is suggested charge duration not over 8 hours.

  • Page 19: Battery Safety And Life Guide

    BATTERY SAFETY AND LIFE GUIDE The reason of weak on new battery The scooter use deep-cycle battery under special chemical technology that allow battery quick to be charged with longer time use after full charge. Battery along with scooter pack- ing is charged full, however, the performance of initial power will be reduced in the process of transportation, such as temperature variation.

  • Page 20: Instruction Of Operation

    INSTRUCTION OF OPERATION Before operating instruction A. Make sure battery is fully charged. B. Familiar with the route condition including crowd, animal and potential obstacles. C. Always keep away from uneven and sloppy terrain. D. Check if is fully inserted and the brake lever switch is pushed. E.
  • Page 21 INSTRUCTION OF OPERATION The Folding and Unfolding Folding Steps: Push down the frame locking lever on low middle of frame. The frame will be u n - locked. Push down from back of seat with one hand, the other hand hold the middle of steering post pushing toward the center at the same time for manual closing the scooter.
  • Page 22 INSTRUCTION OF OPERATION Steps of mouting and Distmounting scooter Mounting steps 1. Open one side of armrest to the top. 2. Mount on scooter from the side. 3 Both feet step on footrest properly then lower down the armrest. 4. Both hand rest on Buffalo handle bar properly. Photo 19.

  • Page 23: Trouble Shooting And Maintenance

    TROUBLE SHOOTING AND MAINTENANCE Photo 21. Top control panel and handle bar set The controller contains programs for identifying problem points and troubleshooting. When the diagnostics detects problems and errors. The LED lights shine continuously in the form of a flash until the fault is eliminated. Example: The number of flashes is “1-9” . Users can try to solve the problem as follows.
  • Page 24 TROUBLE SHOOTING AND MAINTENANCE Insufficient capacity of battery or dropped on performance The decline issue of battery capacity or performance mostly can be sorted out as follows: Inspect whether key is fully inserted and at ON position. Make sure battery is fully charged. Increase the charging cycle and time while battery capacity is dropped.
  • Page 25 TROUBLE SHOOTING AND MAINTENANCE The battery of electric scooter is an extremely important part, the battery life determines the service life of the scooter. Try to keep the battery saturated after each use, to develop such a habit, it is recommended to conduct a deep dis- charge every month! If you don't use an electric scooter for a long time, place it in a place to avoid bumps and pull out the battery to reduce...
  • Page 26 TROUBLE SHOOTING AND MAINTENANCE Electric scooters should avoid scratching seat leather and PU handrails and plastic ornaments with sharp objects, thus affecting the beauty of the whole vehicle. Avoid scratching seat leather Photo 26. and PU handrails and plastic ornaments Electric walking vehicle should be placed in a place where the sun can not shine, please avoid sunlight, otherwise it is not...
  • Page 27 TROUBLE SHOOTING AND MAINTENANCE Maintenance Frenquecy 1. Daily check Turn off the controller, check the lever, make sure the lever is not bent and broken, and be sure to retiun to it when you release it. Check the nibber base of the lever for damage.
  • Page 28 If you discover a problem, require for parts supply （ Such as battery, tire,chareger and son on ） contact your authorized local Dealer or Distributor for assistance, alternatively direct contact with manufacturer with the following Contact Information. Anhui JBH Medical Apparatus Co.,Ltd No.116 qicang Road, Mingguang City, Chuzhou, Anhui, China. www.jbhmedical.com Hightly suggest that use oringinal parts from supplier to avoid any potential issues or failure of function of scooter, please always consult with authorized local Dealer or Distributor first.

  • Page 29: Guidelines And Manufacturer's

    GUIDELINES AND MANUFACTURER'S STATEMENT-ELECTROMAGNETIC EMISSION Labeling explain for Electromagnetic compatibility Note ! FBC01 electric scooter meets the electromagnetic compatibility requirements of IEC60601 standards. The user shall install and use according to the EMC information provided in the attached documents. The portable and mobile RF communication equipment may affect the performance of electric wheelchair and avoid strong electromagnetic interference when using, such as close to mobile phones, microwave ovens, etc.

  • Page 30: Guidelines And Manufacturer's

    GUIDELINES AND MANUFACTURER'S STATEMENT-ELECTROMAGNETIC EMISSION Attachment Guidelines and manufacturer's statement-Electromagnetic Emission FBC01 electric scooter is expected to be used in the electromagnetic environment specified below, and the buyer or user of the electric wheelchair vehicle shall ensure that it is used in this electromagnetic environment： Launch test Compliance Electromagnetic environment-Guidelines...

  • Page 31: Statement-Electromagnetic Immunity

    GUIDELINES AND MANUFACTURER'S STATEMENT-ELECTROMAGNETIC IMMUNITY Guidelines and manufacturer's statement-Electromagnetic Immunity FBC01 electric scooter is expected to be used in the electromagnetic environment specified below, and the buyer or user of the electric wheelchair vehicle shall ensure that it is used in this electromagnetic environment. Electromagnetic Anti-interference IEC60601 Test Level...
  • Page 32 GUIDELINES AND MANUFACTURER'S STATEMENT-ELECTROMAGNETIC IMMUNITY FBC01 electric scooter is expected to be used in the following specified electromag- netic environment, and the purchasers or users of NPL001、NPL002、NPL003 electric wheelchairs) shall ensure that it is used in this electromagnetic environment： Electromagnetic Anti-interference IEC60601 Coincidence...
  • Page 33 GUIDELINES AND MANUFACTURER'S STATEMENT-ELECTROMAGNETIC IMMUNITY If the fixed transmitting airport is strong, such as the base station of wireless (cellular / cordless) telephone and ground mobile radio, amateur radio, am (amplitude modu- lation) and FM (frequency modulation) radio broadcast and television broadcast, and the field strength of the place where NPL001 、...

  • Page 34: Specification Sheets

    INFORMATION DISCLOSURE IN MANUFACTURER'S SPECIFICATION SHEETS Manufacturer: Anhui JBH Medical Apparatus Co.,Ltd Address: No.116 qicang Road, Mingguang City, Chuzhou, Anhui, China. Model: FBC01 Maximum occupant mass: 120KG/264lbs Disclosure Information (ISO) Standard Standard min. max. min. max. reference reference Overall length ..0...
  • Page 35 INFORMATION DISCLOSURE IN MANUFACTURER'S SPECIFICATION SHEETS The wheelchair conforms to the following standards: Requirements and test methods for static, impact and fatigue strengths (ISO 7176 -8) Power and control systems for electric wheelchairs - requirements and test methods (ISO 7176-14) Climatic test in accordance with ISO 7176-9 Requirements for resistance to ignition in accordance with ISO 7176-16.

  • Page 36: Warranty

    WARRANTY The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes: ※ Scooter frame: 3 years ※ Motor: 1 year ※ Controller and CPU system: 1 year ※...

  • Page 37: Warranty Statement

    If you discover a problem, contact your authorized local Dealer or Distributor for as- sistance, alternatively direct contact with manufacturer with the following Contact Information. Anhui JBH Medical Apparatus Co.,Ltd No.116 qicang Road, Mingguang City, Chuzhou, Anhui, China. www.lifestyleandmobility.co.uk www.lifestyleandmobility.co.uk...
  • Page 40 020 8159 7070 info@lifestyleandmobility.co.uk www.lifestyleandmobility.co.uk...
