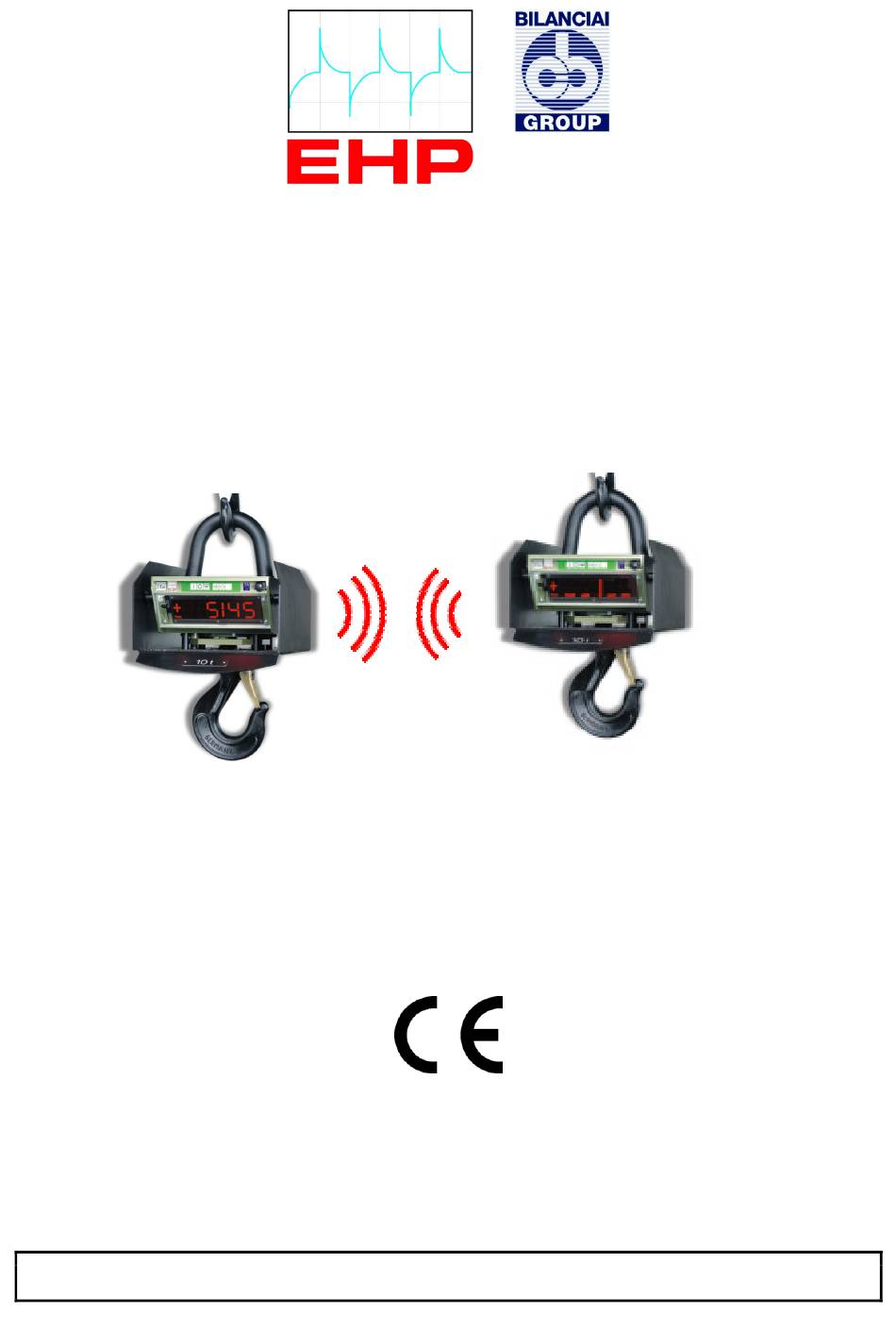

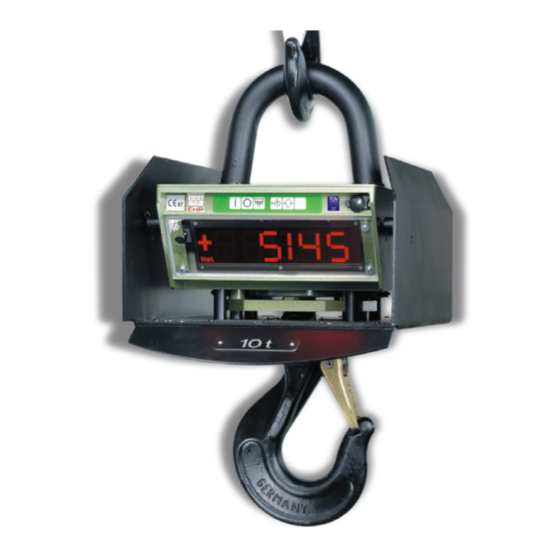

- Page 1 Master Scale Slave scale Digital Crane Scale Type KGW Compound crane scale system User Manual Code No. 900065 19 May 2006...
-
Page 2: Table Of Contents
Contents Declaration of conformity Safety Instructions Compound functions Trouble Shooting Error Codes page... -
Page 3: Declaration Of Conformity
EHP-Wägetechnik GmbH Dieselstrasse 8 D-77815 Bühl (Baden), Germany declares that the weighing instrument Digital Crane Scale Type KGW is conform with following harmonized standards: EN 50081 part1 according to the provisions of the directive 89/336/EEC (electromagnetic compatibility, EMC). EN 60950 according to the provisions of the directive 73/23/EEC (low voltage directive). -
Page 4: Safety Instructions
1. Safety Instructions Please read this instruction manual carefully before you set digital crane scale in operation. Therefore you can prevent injuries and protect your digital crane scale against damages. You can find more safety instructions and warnings directly in the corresponding chapter..before setting in operation •... - Page 5 The user/operator is responsible for the safety of this weighing instrument, i.e. perform a visual control of all tension stressed parts (e.g. ring, hook and shackle) at regular intervals. In case of visual abrasion of these mounting parts EHP can offer you a complete technical check according the German accident prevention regulations.
-
Page 6: Compound Functions
The Master scale also can be used alone, the dwell Control Indication is out of function when no slave scale is present. Switching Compound system crane scales to normal mode is possible, but for security reasons, it will be better to adjust the in EHP factory page... -
Page 7: Trouble Shooting
3. Trouble Shooting Repair work on EHP crane scales is only allowed by qualified technical personnel. Following errors can be recovered by yourself. If the solutions are not successful please inform the customer service. Error Cause Solution Dark display No current Check if the crane scale was switched on. -
Page 8: Error Codes
4. Error Detection Automatic error detection routines are checking cyclically all functions of weighing instrument and provide a faultless operation, so that a permanent visual control is not necessary anymore. Errors are displayed automatically by corresponding error codes (see table) normal weighing mode is disturbed and not possible. - Page 9 EHP Wägetechnik GmbH Dieselstraße 8 • D-77815 Bühl (Baden) Tel. +49 (0) 7223 93660 • Fax +49 (0) 7223 30140 E-mail: info@ehp.de • www.ehp.de servizio post-vendita after sales service service apres-vente Kundendienstservice servicio post-venta serviço pós-venda Tel. +49 (0) 7223 9366 0 • Fax +49 (0) 7223 30140...
