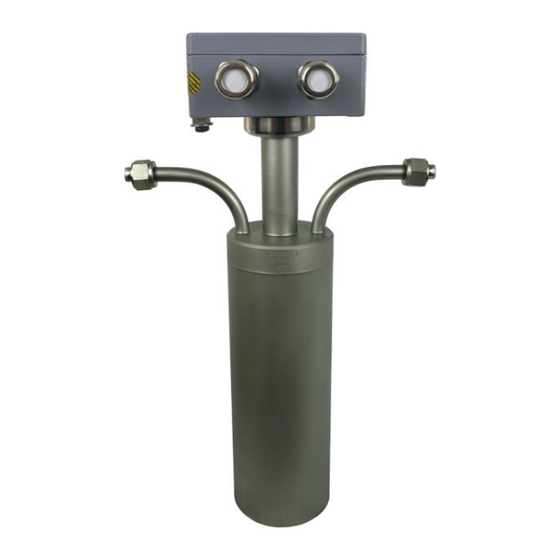

Density and Concentration
Meter
for continuous measurement of liquid density
and concentration
Operating Manual
Bopp & Reuther
Messtechnik GmbH
Am Neuen Rheinhafen 4
67346 Speyer
Germany
Phone : +49 6232 657-0
Fax:
+49 6232 657-505
info@bopp-reuther.com
www.bopp-reuther.com
DIMF1.3 PV
DIMF2.0 PV
DIMF2.1 PV
A-EN-06131-00Rev.D
04/2024
Page 1 of 28
Advertisement
Table of Contents
Related Manuals for BOPP & REUTHER MESSTECHNIK DIMF1.3 PV
Summary of Contents for BOPP & REUTHER MESSTECHNIK DIMF1.3 PV
- Page 1 Density and Concentration DIMF1.3 PV Meter DIMF2.0 PV DIMF2.1 PV for continuous measurement of liquid density and concentration Operating Manual A-EN-06131-00Rev.D Bopp & Reuther Phone : +49 6232 657-0 Messtechnik GmbH Fax: +49 6232 657-505 04/2024 Am Neuen Rheinhafen 4 info@bopp-reuther.com...
-
Page 2: Table Of Contents
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual Table of content I. TRANSPORT, DELIVERY, STORAGE ......................3 II. WARRANTY ..............................3 III. GENERAL SAFETY INSTRUCTIONS ......................3 IV. BASIC SAFETY INFORMATION ......................... 4 V. INTENDED USE ............................4 1. -
Page 3: Transport, Delivery, Storage
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 I. Transport, Delivery, Storage Storage and transport: Always protect devices against humidity, dirt, shock and damages. Inspection of Delivery: Check shipment for completeness upon receipt. Compare the data marked on the device with the data on the packing slip and the order documents. -
Page 4: Basic Safety Information
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual IV. Basic Safety Information Description of Symbols: IMPORTANT NOTES! Please consider these notes carefully to achieve a reliable functional system. The accompanying text contains important information about the product, handling the product or about a section of the document that is of particular importance. -
Page 5: Identification
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 1. Identification Manufacturer: Bopp & Reuther Messtechnik GmbH Am Neuen Rheinhafen 4 67346 Speyer / Germany Phone: + 49 6232 657-0 : + 49 6232 657-505 Product type: Density and concentration meter Product name: Density and concentration meter DIMF with pre-amplifier Version no.: A-EN-06131-00D... -
Page 6: Technical Data
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual 4. Technical Data 4.1 Density transducer DIMF 1.3 DIMF 2.0 DIMF 2.1 Density range 400 to 3000 kg/m³ Calibration range 400 to 1450 kg/m³ better than ± 0.01 % better than ± 0.02 % better than ±... -
Page 7: Pre-Amplifier Type Pv
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 4.2 Pre-amplifier type PV The pre-amplifier excites the oscillating element of the density transducer to its natural frequency; the pre-amplifier type PV is Functions connected to an evaluation computer CSM or other suitable model;... -
Page 8: Dimensions
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual 4.3 Dimensions Page 8 of 28 Details subject to change. A-EN-06131-00Rev.D Bopp & Reuther Messtechnik GmbH... -
Page 9: Required Differential Pressure
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 4.4 Required differential pressure DIMF-series density transducers are measuring independent from flow rate and at zero flow rate. Its operating is therefore considered hassle-free. However, it has to be ensured that the operating flow rate in the transducer •... -
Page 10: Density Transducer
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual 5.1 Density transducer • Handle the measuring device carefully, do not knock • Install in the Bypass or the product line • De-aerate before commissioning • Ensure constant flow • Any flow possible •... -
Page 11: With Sampling
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 5.2.2 with sampling Description Plug tap ø12 straight screw connection ø12 T-fitting ø12 Stopper ø12 5.2.3 with sampling and sight glass Description Sight glass R3/8“ plug tap ø12 straight screw connection ø12 Screw-in fitting R3/8“- ø12 T-fitting ø12 Stopper ø12... -
Page 12: Installation In The Main Product Line
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual 5.3 Installation in the main product line Installation in the product main line is possible. Observe the permissible flow ranges (see details under point 4.4). For other viscosities, take into account the pressure loss that differs from that of water. -
Page 13: Relationship Between The Permissible Ambient And Liquid Temperature
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 5.4 Relationship between the permissible ambient and liquid temperature 5.4.1 Safe area DIMF 1.3 PKS DIMF 1.3 PVS DIMF 2.0 PVS DIMF 2.1 PVS Medium temperature 5.4.2 Hazardous area Medium temperature Note: Temperature class T4 and T3 are not listed separately in the Ex-Certificate of Conformity but are automatically included because they are less critical cases. -
Page 14: Electrical Connection
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual 6. Electrical connection 6.1 Supply voltage • the pre-amplifier type PV is supplied with 24 V DC, 2-wire technology • terminal voltage (terminal + and -) 15 …30 V DC •... -
Page 15: Wiring Diagram Pre-Amplifier Type Pv
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 6.3 Wiring diagram pre-amplifier type PV YE BU BK WH Sensor Exciter Supply braided shield braided shield 2-wire cable, twisted ; 4-wire cable for max. line resistance twisted in pairs see diagram section 6.1 connection connection... -
Page 16: Wiring Examples Pre-Amplifier Type Pv
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual 6.4 Wiring examples pre-amplifier type PV 6.4.1 Non Ex-variant The resistance must be adapted to the respective input level DIMF 6.4.2 Ex-variant Ex area Non Ex area The resistance must be adapted to the respective input level STC4-Ex1 DIMF... -
Page 17: Additional Requirements In Explosion Hazardous Area For Intrinsically Safe Operation
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 6.5 Additional requirements in hazardous area for intrinsically safe operation • observe installation regulations in accordance with DIN EN 60079-14 / VDE 0165 Part 1 • Power input for frequency terminals Ui = 30 V li = 93 mA Pi = 0.653 W... -
Page 18: Errors Caused By The Medium
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual (annealing colours on the housing due to high temperatures and obvious mechanical damage, e.g. damaged electronics housing, seal, connection terminal, etc.) • Search for process-related malfunctions (e.g. empty product line, gas bubbles) A severely damaged density transducer must be dismantled and sent to Bopp &... -
Page 19: Errors Caused By The Pre-Amplifier Or Pt100
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 8.2 Errors caused by the pre-amplifier or PT100 Error Possible reason Remedy Instantaneous value of the supply voltage is not always Ensure supply voltage, load and line between 15 ... 30 V resistance in accordance with chapter 6 (Measurement with oscilloscope) - Page 20 Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual Error Possible reason Remedy Return transducer with additional Coil resistance is zero Defective coil electronics to Bopp & Reuther or infinite Messtechnik Temperature sensor Return transducer with additional resistance is zero Temperature sensor defective electronics to Bopp &...
-
Page 21: Service
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 9. Service Please contact our service department in the event of faults with density and concentration measuring devices. Bopp & Reuther Messtechnik GmbH Service Am Neuen Rheinhafen 4 67346 Speyer / Germany Phone: +49 6232 657-420 Fax: +49 6232 657-561... -
Page 22: Appendix
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual Appendix A. Example of a calibration certificate Page 22 of 28 Details subject to change. A-EN-06131-00Rev.D Bopp & Reuther Messtechnik GmbH... -
Page 23: Declaration On Decontamination
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 B. Declaration on Decontamination Bopp & Reuther A-EN-06131-00Rev.D Details subject to change. Page 23 of 28 Messtechnik GmbH... -
Page 24: Certificates
Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual C. Certificates C.1 Explosions protection certificates C.1.1 EC-Type-Examination Certificate DM 00 ATEX E 092 X see Homepage: https://www.bopp-reuther.com/en/download/ EC Type Examination Approvals Bopp & Reuther Messtechnik Page 24 of 28 Details subject to change. -
Page 25: Eu- Declaration Of Conformity
Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 D. EU- Declaration of conformity Bopp & Reuther A-EN-06131-00Rev.D Details subject to change. Page 25 of 28 Messtechnik GmbH... - Page 26 Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual Page 26 of 28 Details subject to change. A-EN-06131-00Rev.D Bopp & Reuther Messtechnik GmbH...
- Page 27 Operation manual Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Notes: Bopp & Reuther A-EN-06131-00Rev.D Details subject to change. Page 27 of 28 Messtechnik GmbH...
- Page 28 Density / Concentration Pre-amplifier DIMF 1.3, 2.0, 2.1 Operating Manual Our product portfolio: Volume flowmeter: • Oval wheel meter • Turbine meter • Electromagnetic flowmeter Mass flowmeter: • Vortex meter • Compact orifice • Coriolis mass flowmeter Density and concentration meter (Measuring and testing equipment Dosing measurement technology •...
