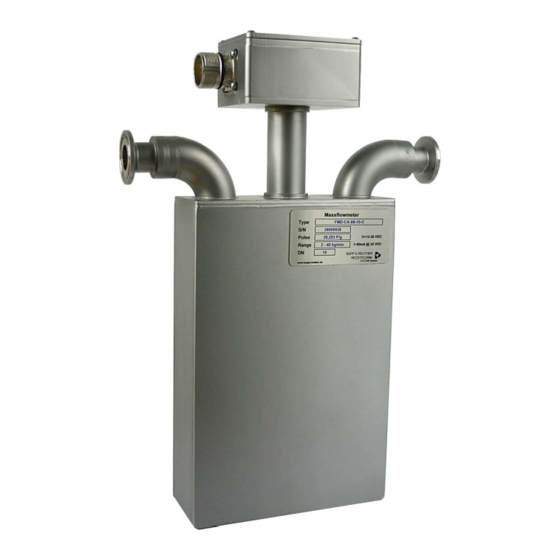

- Page 1 Coriolis Dosing Mass Flow Meter Series FMD Operating Manual A-EN-05809-00 Rev.A Phone: +49 6232 657-0 Bopp & Reuther Fax: +49 6232 657-505 11/2018 Messtechnik GmbH info@bopp-reuther.de Am Neuen Rheinhafen 4 www.bopp-reuther.de 67346 Speyer Page 1 of 20 Germany...
-
Page 2: Table Of Contents
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual Table of Contents Foreword ................................4 I. Transport, Delivery, Storage ..........................4 II. Warranty ................................. 4 III. General Safety Instructions ........................... 4 1. Identification ..............................5 2. - Page 3 Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual D.1 Declaration on contamination of products and components for contractor ........... 19 E. Certificates ..............................20 EU - Declaration of conformity ......................20 Bopp & Reuther A-EN-05809-00 Rev.A Changes with reserve.
-
Page 4: Foreword
Operating manual Coriolis Dosing Mass Flow Meter, Series FMD Foreword I. Transport, Delivery, Storage Always protect devices against humidity, soiling, impacts and damages. Delivery Inspection: Check the delivery for completeness upon receipt. Compare the device data with the data on the delivery note and in the order records. -
Page 5: Identification
Operating manual Coriolis Dosing Mass Flow Meter, Series FMD 1. Identification Manufacturer: Bopp & Reuther Messtechnik GmbH Am Neuen Rheinhafen 4 67346 Speyer Phone: +49 6232 657-0 Fax: +49 6232 657-505 Product type: Direct mass flowmeter (Coriolis mass flowmeter) Product name: FMD-Series Dosing Flowmeter Version No. -
Page 6: Principle Of Operation And System Design
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 3. Principle of Operation and System Design 3.1 Measuring Principle Dosing flowmeters that use the Coriolis principle are classified as direct mass flowmeters. They consist of two U-shaped measuring tubes, an actuator, and two sensors. In operation, the two measuring tubes are stimulated to an antiphase oscillation. -
Page 7: Design
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 3.2 Design The Coriolis Dosing Mass Flow Meter Series FMD has a compact design and consists of the following components: Sensor: The sensor consists essentially of two parallel measuring tubes. Sensors are mounted to these tubes on the inlet side and the outlet side. -
Page 8: Status Signal
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 4.3 Status Signal The dosing flowmeter requires a valve status signal from the control unit. Pulses are generated only after the status signal is switched on/active. Even after the signal to close the valve was given, pulses are generated until the flow completely stops. -
Page 9: Measurement Error
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 6.2 Measurement error The measuring accuracy was determined under reference conditions. Measuring times >= 10s. ±0.3% ±(0.01% * Nominal flow rate / instantaneous flow rate) Error Curve Flow Range [%] 6.3 Repeatability Repeatability as a function of dosing time Dosing time [s] Standard deviation [%] >5 0,05... -
Page 10: General Information
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 7.1.1.1 General information Only trained personnel who have been authorized by the system operator are allowed to perform assembly, electrical installations, commissioning, maintenance and operation. You must have read and understood the instructions and follow their instructions strictly. ... -
Page 11: Storage Temperature
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 7.2.2 Storage temperature -20 °C up to +70 °C (preferred temperature: 20 °C) 7.2.3 Degree of protection IP67 IEC 529 / EN 60529 7.3 Process conditions 7.3.1 Media temperature 0 °C up to 90 °C SIP up to 140 °C 7.3.2 State of aggregation suitable for liquid media... -
Page 12: Pressure Loss
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 7.3.5 Pressure Loss Pressure Loss Flow Range [l/min] 1 bar at nominal water flow 20°C Page 12 of 20 Subject to change. A-EN-05809-00 Rev.A Bopp & Reuther Messtechnik GmbH... -
Page 13: Construction Details
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 8. Construction details 8.1 Design / Dimensions G [mm] H, Height [mm] B, Width [mm] L, Length [mm] FMD06 FMD08 Depends on the respective technological connection DIN 32767 Tri-Clamp L, Length [mm] Weight [kg] FMD06 FMD08... -
Page 14: Material
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 8.2 Material Material / Material No. / ASTM Sensor case X5CrNi18-10 / 1.4301 / 304 Measuring tube X6CrNiMoTi17-12-2 / 1.4571 / 316Ti Flow divider X6CrNiMoTi17-12-2 / 1.4571 / 316Ti Process connection X6CrNiMoTi17-12-2 / 1.4571 / 316Ti Case of the transducer electronic AlMgSi1 / 3.2315 / -... -
Page 15: Calculation Pulse Frequency
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual Power Supply Voltage Rated voltage of 24V DC (12V DC - 36V DC) Power Consumption 1.5W ~ 60 mA @ 24V DC Inrush current: 0.5 A (<5 ms) Pulse Active pulse output (max. 20 mA; an external pull down resistor is required) Valve Status Valve status signal: 24 V DC / 2 mA (12V DC - 36V DC) 9. -
Page 16: Certificates And Approvals
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual 10. Certificates and approvals CE mark: The measuring system fulfills the legal requirements of the EC Directives 2014/30/EU and 2011/65/EU including the amendments and supplements published to date. Bopp & Reuther Messtechnik GmbH confirms the successful testing of the device by affixing the CE mark. -
Page 17: Apppendix
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual Apppendix A. Error diagnostics and fault rectification The dosing mass flow meter is maintenance-free. If a malfunction should occur or if a wrong measurement is suspected, please contact Bopp & Reuther Messtechnik GmbH. Warning! When working on the electrical connections, the local regulations and all safety instructions in this operating manual must be observed. -
Page 18: Repairs, Hazardous Materials
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual B.2 Repairs, hazardous materials The following measures must be taken before you repair the mass flow meter. Bopp & Reuther einsenden: In any case, please enclose the Declaration on contamination of products and components with the description of the fault, the application and the chemical-physical properties of the measuring medium (see appendix D for form) ... -
Page 19: Forms
Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual D. Forms D.1 Declaration on contamination of products and components for contractor You can fill out the form online on our homepage, or copy this page: Bopp & Reuther A-DE-05809-00 Rev.A Subject to change. - Page 20 Coriolis Dosing Mass Flow Meter, Series FMD Operating Manual E. Certificates EU - Declaration of conformity Page 20 of 20 Subject to change. A-EN-05809-00 Rev.A Bopp & Reuther Messtechnik GmbH...
