Summary of Contents for CYP SDM-XT-4K

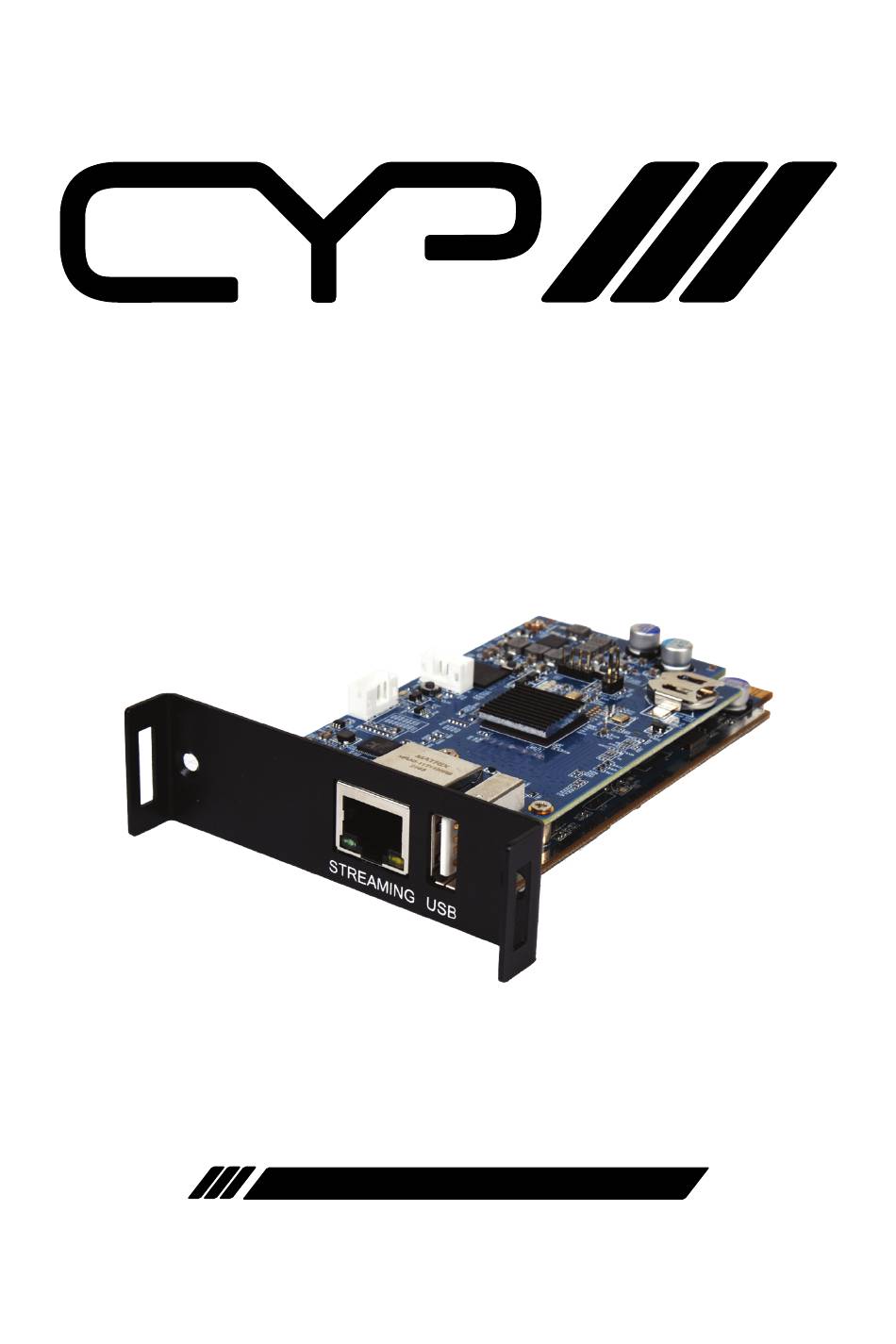

- Page 1 SDM-XT-4K H.264/265 Live Video Streaming and Recording Module Card OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........2 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Card Installation ...........4 6.3 Card Removal ............5 7. Connection Diagram ........6 8. -
Page 6: Introduction
(via USB thumb drive) or to a local network drive while it is being streamed. The module’s design is compatible with a variety of products that have a standard CYP (UK) Module Slot, offering increased flexibility to customers. 2. APPLICATIONS Webcasting... -
Page 7: Package Contents
1× H.264/265 Live Video Streaming and Recording Module Card 1× Operation Manual 4. SYSTEM REQUIREMENTS Must be installed into a product with an available compatible CYP (UK) Module Slot Note: Despite appearances, this card is NOT designed for installation into a PC’s PCIe card slot and should only be installed in officially compatible... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel STREAMING USB STREAMING Port: Connect to a network switch, or router for transmission of streamed video. USB Port: Attach a standard USB thumb drive for storage of recorded video. Note: Storage media must be formatted as FAT32 or exFAT. Video files are stored in *.mp4 format. -
Page 9: Card Installation
6.2 Card Installation To install this module card into your unit, it must have at least one available CYP (UK) Module Slot. (1) Prior to installation, power the unit completely off. (2) Remove the dummy faceplate that is covering the card module slot by unscrewing both screws. -
Page 10: Card Removal
6.3 Card Removal (1) Prior to removal, power the unit completely off. (2) Completely unscrew both screws. (3) Gently pull the card straight out of the module slot, using the provided handles. (4) Cover the module slot with a dummy faceplate and tighten both screws. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Internet Streaming Target Network Router USB Flash Disk STREAMING USB... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Ethernet Bandwidth 1Gbps Card Slot Format 1×CYP (UK) Module Output Ports 1×LAN (RJ‑45) 1×USB 2.0 (Type‑A) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 80mm×25mm×120mm [Case Only] 79mm×25mm×128mm [All Inclusive] Weight Chassis Material (Face) -
Page 13: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) Card Slot Streaming 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 1280×768p@60/75/85 1280×800p@60/75/85 ... -
Page 14: Audio Specifications
Input Output Supported Resolutions (Hz) Card Slot Streaming 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 3840×2160p@50/60 ... -
Page 15: Cable Specifications
8.4 Cable Specifications Cable Length Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m Bandwidth Category Examples: HD Video ‑ 720p@60Hz ‑ HDMI transmission rates lower than 3Gbps ‑ HD‑SDI (SMPTE 292M, 1.485Gbps) FHD Video ‑ 1080p@60Hz ‑ HDMI transmission rates between 3Gbps and 5.3Gbps ‑... -
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra‑High‑Definition (10.2Gbps max) 4K UHD 4K Ultra‑High‑Definition (18Gbps max) 8K UHD 8K Ultra‑High‑Definition (48Gbps max, without DSC) 8K UHD 8K Ultra‑High‑Definition (48Gbps max, with DSC) Gigabit Ethernet Gbps Gigabits per second HDMI High‑Definition Multimedia Interface High Dynamic Range Internet Protocol... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
