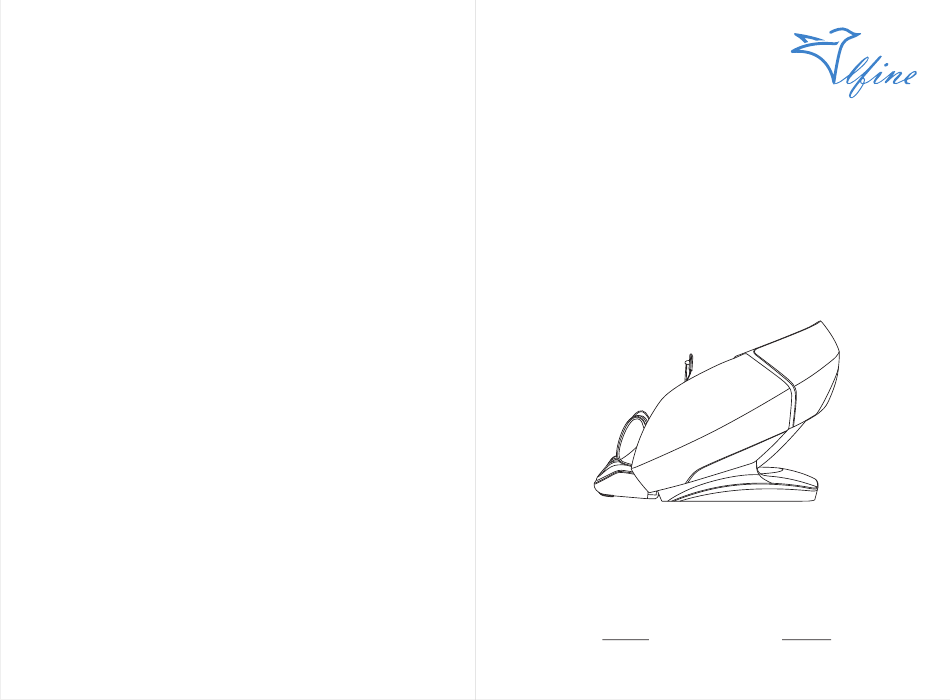

Page 1 SAVE THESE INSTRUCTIONS A860-10 MASSAGE CHAIR Operation Instructions...
Page 2: Table Of Contents
Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. Note: Our company reserves the right to change and explain the design of the product.
Page 3 Safety Precautions (Must be observed) Safety Precautions (Must be observed) ■ Please read all relevant instructions carefully before use. Important safety warnings ■ The notes marked here will help you to use the product safely and correctly. ■ In order to clearly indicate the extent of harm and damage, precautions are divided into "Warning"...
Page 4: Safety Precautions
Safety Precautions (Must be observed) Safety Precautions (Must be observed) Storage conditions Safety precautions ■Storage room temperature: 5 °C to 40 °C. ■Check whether voltage is consistent with the speciﬁcation of this ■Relative humidity (RH) between 20% and 80%; free of corrosive gases, product.
Page 5: Installation Parts
Installation parts Installation parts Armrest installation instructions Calf installation instructions 1.After powering on, use the Remote control to lie down the backrest to the end. 1.Insert the wire of the calf and the air pipe into the sockets on the front end of the steel 2.Insert the harness assembly and air pipe on the steel frame assembly into the armrest frame assembly (Figure 1).
Page 6: Place Massage Chair
Place massage chair Place massage chair Installation placement Move method Use the rear casters to move the Make sure there is enough massage chair.Move the chair by tilting it space for the massage chair can down and backward about 45° as shown be tilted at least 10 cm.
Page 7: Before Use
Before use Before use Turn on the power Check around Make sure that there are no people, pets and other objects around the unit. Caution FU S FU S E: T6 E: T6 .3 A .3 A L 25 L 25 /O F /O F W ER...
Page 8: Product Structure
Product structure Product structure Description of Components Schematic view of functional distribution · 1.Shoulder Roller massage · ·Electrically adjustable foot telescopic Airbag massage 1.Head cushion 7.Shawl back cushion · ·Automatic leg length detection Voice control function 2.Manual controller 8.Armrest shortcut keys ·...
Page 9 Product structure Product structure How to use the shawl Schematic diagram of use on shoulder and abdomen It features a unique shawl component, with innovative heating functions on the shoulder, back, waist and abdomen. Users can place the shawl at diﬀerent massage positions according to massage requirements.
Page 10 Product structure Product structure Remote controller keys instruction Main information interface Shoulder Area Manual Shoulder Area Manual Health Home 4D + Upper Air+ Upper Air+ 4D + 00:30 00:30 Lower Air+ Lower Air+ Speed + Speed + Customise Auto Memory Stop Stop Manual...
Page 11: Operation Instructions
Product structure Operation Instructions Description of armrest shortcut keys I. Start massage 1.Press the remote controller side button on/oﬀ key or long press the armrest on/oﬀ key 2.After the system is started, select the massage intensity by clicking on any one of the Gentle , Comfort...
Page 12 Operation Instructions Operation Instructions 4. Wait until body shape detection is completed, or you can press the skip key Skip skip detection and start massage directly. Position too low Proper position Body sensing Position too high Checking Please wait II. Pause function (please use this function after the equipment is turned on) After the massage chair is turned on, press the pause key to enter the pause state, then all massage functions will be suspended, and press the pause key...
Page 13 Operation Instructions Operation Instructions Massage scenes(AI Intelligent) Massage scenes(Relaxing and Activating) Description Description Function Function The upper mechanical core is used to massage the neck, shoulders Massage the shoulders, neck and back and waist by means of Meridian and Fengchi acupoint by kneading, and then work with tapping and kneading, tapping and Shiatsu techniques to the eﬀect of meridian Treatment Shiatsu to massage the whole body.
Page 14 Operation Instructions Operation Instructions Massage scenes(Exclusive for Family) Massage scenes(Overall Relaxation) Description Description Function Function Massage the shoulders, neck, back and waist by means of kneading, tapping, kneading and tapping mainly, to relieve fatigue, Deeply massage the whole body by means of kneading, tapping Energy Boost promote blood circulation, and release stress by such deep and Shiatsu techniques, to wake up the vitality of the human body...
Page 15 Operation Instructions Operation Instructions IV. remote program (please use this function after the equipment is turned on) 2.More programs: Enter the automatic mode interface as shown below, select the "More Programs " key, then click the "+" key to select the "Undownloaded Programs" More Massage 1.Click the "Manual "key in the left menu bar to enter the manual menu, then select...
Page 16 Operation Instructions Operation Instructions (2).Core(lower): After entering the manual menu interface as shown below, select the Note: In the “Home ” interface, you can also click the massage technique key (Only Stop “Core(lower) " key, and then select massage functions according to massage the massage techniques of the upper back mechanism can be adjusted),to select the Manual(down) needs, including massage techniques, massage area, back mechanism adjustment,...
Page 17 Operation Instructions Operation Instructions Note: In the “Home ”interface, you can also click the massage area key (Only the Description Area massage area of the upper back mechanism can be adjusted),to select the corresponding massage area in the pop-up menu for massage (this function is a shortcut for switching Fixed-point massage at ﬁxed-point position.
Page 18 Operation Instructions Operation Instructions 4.Back mechanism up and down adjustment: After entering the manual menu interface as shown below, you can select the "Core(upper) or Core(lower)" key, and then select the mechanism up arrow or down arrow according to the massage needs to ﬁne- tune the massage mechanism up and down.
Page 19 Operation Instructions Operation Instructions 6.Massage speed: After entering the manual menu interface as shown below, select the "Core(upper) or Core(lower)" key, and then select the massage speed plus key “ ” or minus key “ ” according to the massage needs to adjust the massage speed. There are 1-5 levels massage speeds available, with 1 level being the slowest and 5 level Level 0 Level 1...
Page 20 Operation Instructions Operation Instructions Note: In the “Home ” interface, you can also select the massage speed + turned oﬀ; there is also a hand roller massage function on the inside of the arm. When Speed + (Only the massage Speed of the upper back mechanism can be adjusted) or massage the full body air pressure or upper body air pressure is turned on, the hand roller will speed - key to adjust the massage speed.
Page 21 Operation Instructions Operation Instructions Note: In the “Home ” interface, you press also air massage key and select Full corresponding air mode in the pop-up menu. (This function is a shortcut to the air massage in the current status interface of the remote function - air massage.) Level 0 Level 1 Level 2...
Page 22 Operation Instructions Operation Instructions V. Seat adjustment 3. Leg unit extension/shortening adjustment 9.Select and click the "Angel " key in the menu bar on the left side of the remote Description controller screen, after entering the sitting adjustment interface as shown below. According to the massage needs, select the sitting angle adjustment, including foot Leg unit Up key: press and hold this key to slowly raise the leg unit, and mechanism extension, foot mechanism shortening, leg up, leg down, whole up,whole...
Page 23 Operation Instructions Operation Instructions VI. Setting (please use this function after the equipment is turned on) Voice Control Entry Click the "Settings " key in the menu bar on the left side of the remote controller screen Entry: “Hi Alice” or “Hey Alice”. Answer: I am here. to enter the setting interface, after entering the sitting adjustment interface as shown below can view the product number, software version number, ID code and ﬁrmware version Voice control entry...
Page 24 Operation Instructions Operation Instructions 3.Bluetooth(Operation Instructions for Bluetooth Speaker Play) 4.LED: After entering the setting interface as shown below, click the "LED" key to turn on (1).Bluetooth: After entering the setting interface as shown below,click the "Bluetooth" or oﬀ the ambient light function. switch to turn on or oﬀ...
Page 25 Operation Instructions Operation Instructions 6.Screen brightness: After entering the setting interface as shown below, click the 8.Language selection: After entering the setting interface as shown below, select diﬀerent "Brightness" slider, and then press and hold to slide left and right to adjust the brightness languages according to the user's needs.
Page 26 Operation Instructions Operation Instructions 10.Version upgrade: After entering the setting interface as shown below, if you ﬁnd that the Health check progress indicator version needs to be upgraded, select the text "Discover new version, click to upgrade" after "Firmware version or software version" according to the system requirements to upgrade the system version.
Page 27 Operation Instructions Operation Instructions VIII. Custom (please use this function after the equipment is turned on) 3. No valid data is detected: If no valid data is detected, the user will be prompted to ask whether to re-detect. Select "Yes" to restart the health detection, and "No" to exit the Click the "Custom "...
Page 28 Operation Instructions Operation Instructions IX. Storage (please use this function after the equipment is turned on) X. Other function (Please use this function after power on) 1.In the "Home " interface, click the "Back heat " button to turn on or oﬀ the back Click the "Memory "...
Page 29 Operation Instructions Operation Instructions 3.In the “Home " interface, click the "Calf " button to turn on or oﬀ the calf 5.In addition to setting in the Custom interface, the function can also be enabled or kneading massage function; there are kneading and airbag squeezing massage disabled by selecting the In the “Home "...
Page 30 Operation Instructions Operation Instructions XI. Bluetooth App Download and Install 7.In addition to setting in the Custom interface, the function can also be enabled or disabled 1.Bluetooth APP download and install: by selecting the In the “Home ” interface, select the "Gentle , Soothing Soothing Gentle...
Page 31 Operation Instructions Operation Instructions XII. APP controlled massage chair operation instructions 3.APP Bluetooth name change: If the location of the massage chair is changed or the 1.After the device is successfully connected, the Bluetooth APP will automatically jump to Bluetooth name is changed, you need to reconnect the device according to the actual the standby interface.
Page 32: Xiii. End Massage
Operation Instructions Cleaning and Maintenance XIII. End massage Cleaning synthetic leather and plastic parts During the massage process, press the "Switch " key on the remote controller or press Wipe the leather with a soft, dry cloth. the "Switch " key on the armrest to turn it oﬀ. You can also press the "Switch "...
Page 33: Troubleshooting
Troubleshooting Product specifications Model: A860 When the calf mechanism or the backrest reaches a certain position, press the Configure: 10 corresponding adjustment button and it will no longer change, and a continuous Fault "beep, beep" sound will be emitted. Name: Massage Chair...
