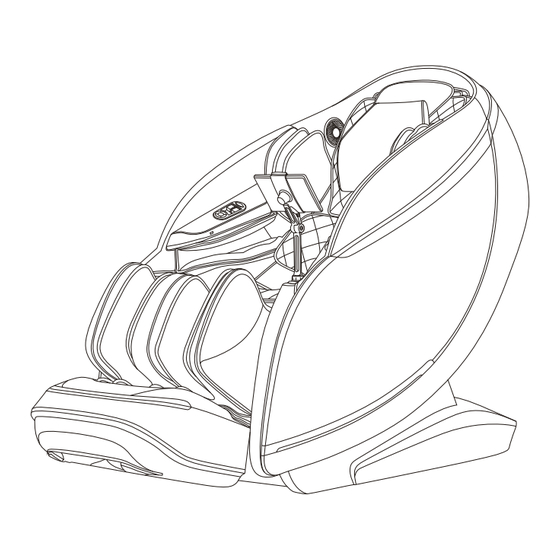

- Page 1 A688 MASSAGE CHAIR OPERATION INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. Note: Our company reserves the right to change and explain the design of the product. -
Page 3: Safety Precautions
Safety Precautions Safety Precautions must be observed must be observed ■Please read all relevant instructions carefully before use. Important safety warnings ■The notes marked here will help you to use the product safely and correctly. ■Do not allow children to touch any movable part of this product. ■In order to clearly indicate the extent of harm and damage, precautions are ■Use the well-grounded power supply unit suitable for this product. - Page 4 Installation Parts Safety Precautions must be observed Calf Installation Instructions Product service and maintenance 1.Find the connection plug on the armrest that corresponds to the light bar wire on the armrest cover (Figure 1). ■This product should be maintained by the service center designated 2.Connect the light bar connector on the armrest cover to the connector on the by the manufacturer only.
-
Page 5: Installation Parts
Installation Parts Installation Parts Calf mechanism installation instructions Installation instructions for touch screen remote control holder 1.First cut off the connecting wire and air pipe tie fixed on the steel pipe(Figure 1). 1.Take the hand control bracket out of the accessory bag and align the bottom 2.Connect the connecting wire and the air pipe leading from the lower end of the frame decorative piece of the bracket assembly with the mounts on the armrest (Figure 1). -
Page 6: Place Massage Chair
Place massage chair Place massage chair Installation placement Move method Make sure there is enough Use the rear casters to move the space for the massage chair can massage chair.Move the chair by tilting it be tilted at least 5 cm. down and backward about 45°... -
Page 7: Before Use
Before use Before use Turn on the power Check around Make sure that there are no people, pets and other objects around the unit. PO W PO W IN PU IN PU CAUTION /O F /O F CAUTION Plug in power cord Turn on the power Schematic diagram of power on... -
Page 8: Product Structure
Product Structure Product Structure Description of Components Schematic view of functional distribution 1.Shoulder 6.Arm • Airbag massage • Built-in voice control microphone • Voice control wake-up key 2.Arm 1.Large head cushion 7.Shoulder air pressure component 7.Waist • USB charging port 2.Small head cushion 8.Hand controller •... - Page 9 Product Structure Product Structure Remote controller keys instruction Main information interface Shoulder Area Manual Shoulder Area Manual Home Customise 4D + Upper Air+ 4D + Upper Air+ 00:30 00:30 Speed + Lower Air+ Speed + Lower Air+ Memory Auto Manual Stop Stop Full...
-
Page 10: Operation Instructions
Product Structure Operation Instructions I. Start massage Armrest shortcut key description 1. Press the remote controller side button on/off key or long press the armrest on/off key 2.After the start-up screen, the brand logo animation will be displayed, automatically entering the warning interface. Then, click the “Tap here to confirm" key to enter the massage selection intensity interface. - Page 11 Operation Instructions Operation Instructions 2. After the system is started, select the massage intensity by clicking on any one of 4. Wait until body shape detection is completed, or you can press the skip key Skip the Gentle , Comfort or Strong keys on the remote controller to turn to skip detection and start massage directly.
- Page 12 Operation Instructions Operation Instructions Massage scenes(AI Intelligent) Position too low Description Function Proper position The upper mechanical core is used to massage the neck, Position too high shoulders and Fengchi acupoint by kneading, and then work with tapping and Shiatsu to massage the whole body. The Total Relax lower mechanical core is used to massage the waist and hip by kneading and tapping.
- Page 13 Operation Instructions Operation Instructions Massage scenes(Relaxing and Activating) Massage scenes(Exclusive for Family) Description Description Function Function Massage the shoulders, neck, back and waist by means of Massage the shoulders, neck and back and waist by means kneading, tapping, kneading and tapping mainly, to relieve Meridian of kneading, tapping and Shiatsu techniques to the effect of fatigue, promote blood circulation, and release stress by...
- Page 14 Operation Instructions Operation Instructions Massage scenes(Overall Relaxation) Manual Description Function Home Manual(up) Manual(down) Deeply massage the whole body by means of kneading, Auto Stop Tap I Tap II Knead&Tap Knead Shiatsu I Shiatsu II tapping and Shiatsu techniques, to wake up the vitality of the Energy Boost human body and stimulate the energy.
- Page 15 Operation Instructions Operation Instructions Note: You can also click the massage technique key in the “Home "interface Massage roller adjustment Function Stop to select the corresponding massage technique in the pop-up menu for massage (this function is a shortcut for switching massage techniques in the current status page of the Stop Press this key to massage without any technique.
- Page 16 Operation Instructions Operation Instructions 3.The 4D strength menu of the back mechanism (upper) can adjust the 4D strength, Description with a total of 1-5 adjustable levels. The first level represents the weakest strength, and the fifth level represents the strongest strength. The stronger the 4D Fixed-point massage at fixed-point position.
- Page 17 Operation Instructions Operation Instructions Note: You can also select the 4D intensity + key or 4D intensity - key 4.The back mechanism(upper) and back mechanism (lower) are adjusted by the 4D back mechanism in the fixed point and local massage areas. Select the up in the “Home "...
- Page 18 Operation Instructions Operation Instructions (1).The width can be adjusted only when the user enters the remote mode in Description selecting massage technique or massage area. (2).The massage width is available from 1 to 5 gears, with 1 being the narrowest and Press this key to increase massage speed which is adjustable from 1 to 5.
- Page 19 Operation Instructions Operation Instructions 7.Air pressure massage, enter into the air pressure massage menu to choose the Note: You press also air massage key in the “Home " interface, and Full air pressure mode as shown in the following figure. Air pressure mode include select corresponding air mode in the pop-up menu.
- Page 20 Operation Instructions Operation Instructions Description Press this key to increase the air intensity which is Upper Air Lower Air adjustable from 1 to -5. Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Press this key to decrease the air intensity which is Lower Air Upper Air adjustable from 1 to -5.
- Page 21 Operation Instructions Operation Instructions 2.Telescopic adjustment of footrest 6.Backrest unit angular adjustment Description Description Backrest unit Up key: press and hold this key to slowly raise the Footrest shortening button: Manually adjust the footrest to shorten; backrest unit and release it to stop rising. press and hold this button to move the footrest slowly upward, and Back up release it to stop.
-
Page 22: Massage Close
Operation Instructions Operation Instructions 4.Voice control: Click Voice Control switch to turn on or off the Voice Control Voice Control Entry function. After enabling the voice function, you can control the massage chair by voice according to the content of voice entry. Entry: “Hi Alice”... - Page 23 Operation Instructions Operation Instructions 5.Language selectio: The language is English by default. Chinese, Vietnamese, Korean is Click Custom I Setting or Custom II Setting to enter the Custom Setting interface, optional. then select the preferred massage technique whose icon will be highlighted after selection, and select the massage interval, 4D intensity, air massage, massage width, massage speed, air intensity, back heating, calf kneading and other functions, then click Save to save the current settings as Custom I and Custom II.
- Page 24 Operation Instructions Operation Instructions In the “Home " interface, click the "Roller " button to turn on or off the foot Mild fatigue roller massage function, with three adjustable speeds. Memory Customise MassageSave Shoulder Area Manual Memory Home Upper Air+ 4D + 00:30 Save I...
- Page 25 Operation Instructions Operation Instructions In the “Home " interface, select the “Shoulder Position Adjustment " button, Shoulder In the “Home " interface, select the "Calf " button to turn on or off the calf and press the up and down arrow buttons in the pop-up menu to adjust the shoulder rubbing massage function;...
- Page 26 Operation Instructions Operation Instructions Cut off the whole machine power supply, as shown in the figure (Schematic diagram In the “Home " interface, select the "Gentle , Soothing Soothing , Strong Strong " Gentle of power switch position of the whole machine). button to select the appropriate massage intensity.
-
Page 27: Cleaning And Maintenance
Cleaning and Maintenance Troubleshooting Cleaning synthetic leather and plastic parts When the calf mechanism or the backrest reaches a certain position, Fault press the corresponding adjustment button and it will no longer change, Wipe the leather with a soft, dry cloth. and a continuous "beep, beep"... -
Page 28: Product Specifications
Product Specifications Model: A688 Name: Massage Chair Rated voltage: 110-120V~ 60Hz Rated power: 220W Rated time: 20min Safety structure: Class I...
