Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
Operating & Installation Instructions
AWW9901C9NC0-0C0

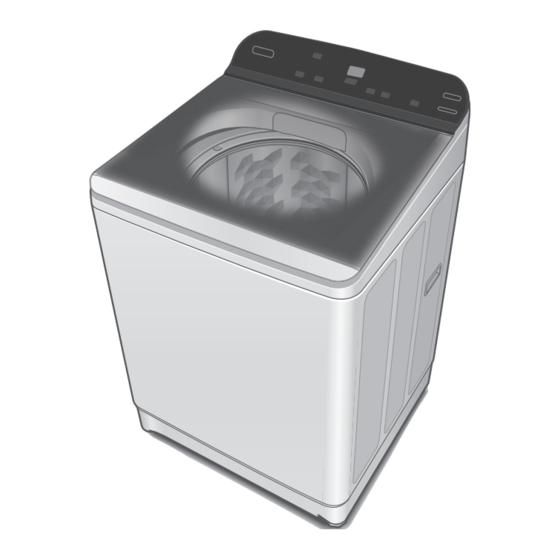

Fully Automatic Washing Machine
Model No.
Contents
• Preset
• Wash / Rinse / Spin
Specifications
AWW9901C9NC0-0C0
(Household Use)
NA-F100A9
NA-F90A9
NA-F85A9
A0621-0(S)(P)
Printed in Vietnam
06-2021
2
6
7
8
9
10
12
14
18
19
20
24
28
30
32
Advertisement
Table of Contents
Related Manuals for Panasonic NA-F85A9
Summary of Contents for Panasonic NA-F85A9
-
Page 1: Table Of Contents
Operating & Installation Instructions Fully Automatic Washing Machine (Household Use) NA-F100A9 Model No. NA-F90A9 NA-F85A9 Contents Safety Precautions Part Names / Accessories Before Washing Operation Panel Washing Variety of Programs Detergent / Softener / Bleach Washing Options • Preset • Wash / Rinse / Spin •... -
Page 2: Safety Precautions
Safety Precautions WARNING May cause serious injury or death. Children must not use it alone. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 In case of failure or damaged power cord, Accumulated dust stop use and ask the service centre. may cause fire. Securely insert the ground prong. Wipe the power plug periodically. Call your local dealer for a new socket. Use a socket appropriate for this Keep away from appliance.
- Page 4 Safety Precautions (continued) CAUTION May cause injury. Be careful not to get your fingers caught. Do not climb or put objects on the appliance. If the lid is broken, immediately stop using. Be careful of your hands and feet. May cause water leakage. Turn off the water faucet.
- Page 5 May cause failure. Keep away from heat and direct Do not wash waterproof sunlight. items. Raincoats, wet suits, etc. Do not obstruct. Do not use hot water. Do not obstruct the openings of Over 50 ºC the bottom face with carpet, etc. For Machine-washable items only.
-
Page 6: Part Names / Accessories
Part Names / Accessories Part names Operation panel Water supply valve (P. 6) (P. 26) Detergent and softener drawer (P. 10) Detergent/ Bleach inlet (P. 12) Power cord and Lint filter (P. 18) plug* (P. 27) * The plug shape varies with the region. -
Page 7: Before Washing
Before Washing Laundry preparation and check Pre-laundry check Use laundry nets for delicates Overpack For “Stain Master” (P. 16) Pretreatments for heavily stains Reverse Observe the clothes' care labels Clothes likely to pill Paper diapers Wash separately White clothes Coloured clothes... -
Page 8: Operation Panel
Water level (L) Detergent * 72 * Flashing Approx. (in progress) 5 sec Remaining time *1 NA-F100A9: 72 L NA-F90A9: 69 L NA-F85A9: 66 L : 1 scoop/cap of detergent Preset (P. 16) For NA-F100A9 Start/Pause Stain Master Power Child Lock lamp (P. -
Page 9: Washing
Washing „ Preset timer (P. 16) Measures the amount of laundry. 10 sec 5 sec 20 sec (P. 8) (P. 14) „After pressing “Start” To change each operation (while washing). Start Pause To check or change the water level (while washing). You cannot change the program. -
Page 10: Variety Of Programs
Variety of Programs Max. Program Purpose capacity * (kg) Everyday clothes 10.0 Normal (P. 9) For light soil 10.0 Speedy (P. 9) Washing gently Delicate (P. 17) Saving water 10.0 Water Save (P. 9) Comforters and blankets Blanket (P. 17) With a machine-washable tag... - Page 11 * Top: NA-F100A9 / Middle: NA-F90A9 / Bottom: NA-F85A9 Max. Program Purpose capacity * (kg) (P. 16) For the following stains Light Odour/ Use more softener to keep the Aroma+ scent longer Soya/Sauce Heavy Drying synthetic fibre clothes Air Dry (90 min) (P.
-
Page 12: Detergent / Softener / Bleach
Detergent / Softener / Bleach Follow the instructions on each package. Close detergent and softener drawer completely before use. Bleach / Liquid detergent Whiten bleach (chlorine bleach) - Page 13 Powder Softener detergent Max. 100 ml For cleaning (P. 23) Detergent If powder detergent does not dissolve well, mix and dilute powder in a cup of warm water and put into the bleach inlet. Warm Powder water detergent The level of foaming depends on the load size, soil, detergent, and water hardness.
-
Page 14: Washing Options
Washing Options Preset Wash / Rinse / Spin Set how many hours later to finish operation. 2 min All other indications turn off. 2 - 24 1 - 24 2 - 24 (P. 16) „ To confirm „ To cancel or change... -
Page 15: Delicate
47 L 3.0 kg • 100 % synthetic fibre water amount * • 100 % cotton NOTE * NA-F100A9: 72 L / NA-F90A9: 69 L / NA-F85A9 : 66 L Liquid delicate Bleach detergent „ After operation ends Take out immediately. -
Page 16: Stain Master
Max. capacity (P. 11) „ Timer preset (hours) (P. 14) Max. water amount: Odour/Aroma+: 72 L (NA-F100A9) Others: 2 - 24 Odour/Aroma+: 69 L (NA-F90A9) 66 L (NA-F85A9) Others: 55 L You cannot change the wash process setting of this program. -
Page 17: Air Dry (90 Min)
Air Dry (90 min) The air blown from the tub rotation removes water from clothes. Dryable clothes: Synthetic fibre (Max. 2.0 kg) NOTE Clothes may not be sufficiently dried (depends on amount and type of clothes, and the temperature). This function does not use a heater. Clothes may be cold and half dry. -
Page 18: Convenient Functions
Convenient Functions Cancelling end buzzer Setting Child Lock & Hold 3 sec „ To reset: (P. 29) 10 sec same procedure Forcible drainage * This function does not lock the lid and button operations. Turning the tub by hand Hold 5 sec „... -
Page 19: Contents Of Programs
Contents of Programs Total time Wash Rinse Spin Program (min) (min) (times) (min) Normal Speedy Delicate Water Save Blanket Odour/Aroma+ Soya/Sauce (Soak 20) Tub Hygiene (Soak 61) *1 Total time is approximate (When the standard water supply rate is 15 L / min and the water temperature is 28 ºC). *2 Remaining time of 99 minutes or less will be displayed. -
Page 20: Maintenance
Maintenance Lint filter After each operation Water Click NOTE If it is difficult to remove If the filter is broken Without the filter the filter (P. 18) Local dealer... - Page 21 Detergent and softener drawer If stained with detergent or softener Remove Attach Main unit, lid For heavy soil Neutral kitchen detergent...
- Page 22 Maintenance (continued) Water supply filter If water does not flow smoothly Water supply filter Start Approx. 40 sec Loosen Tighten...
- Page 23 Once a week <Air Dry (90 min)> (P. 17) Empty Once a month <Tub Hygiene> Pause Full Whiten bleach (chlorine bleach) 200 ml Empty Start Approx. 2.5 hours Start...
-
Page 24: Installation
Make sure to ask a service person for installation. Check the location. „ Do not install by yourself. „ Follow this installation method. If you do not, Panasonic will not be liable for any accident or damage. Bottom cover External drain water hose... - Page 25 Attach the bottom cover Attach the external drain water hose NOTE Over 10 cm Over 3 m...
- Page 26 Installation (continued) Connect the water supply hose Joint type Screw type „ Screw type „ Joint type Thread: Approx. 4 mm Loosen Check that the elbow is not loose. Tighten securely Tighten (To prevent water leakage) CAUTION Tighten the nut firmly. Do not twist, squash, modify or cut the hose.
- Page 27 Connect the power plug and grounding Check that the washing machine is level „ If the washing machine wobbles Loosen Adjust Tighten Trial operation Abnormal sounds (P. 30)
-
Page 28: Error Display
Error Display „ Preparation Cancel Child Lock (P. 18) if it is set. Error Display Points to be checked Check Lint Water cannot drain. Over 10 cm Over 3 m The lid is open. Even Uneven Spin or “Air Unstable or incline Stable Dry (90 min)”... - Page 29 Error Display Points to be checked Water outage Turned off Water cannot be supplied. Water supply filter (P. 22) With Child Lock set Forcible drainage 10 sec Water has been forcibly drained. 5 sec Inspection is required.
-
Page 30: Troubleshooting
Troubleshooting Symptoms Points to be checked Time indication is approximate. Indication increases or Remaining time is corrected during operation. does not decrease. Longer than the indication. When clothes When the water When the water are uneven. drainage is not good. supply is not good. - Page 31 Symptoms Points to be checked Water is supplied while When water When amount of washing. level drops. laundry is large. Water is added automatically. The water level When there is water When laundry is wet. in the tub before operation. too high The water level may be higher.
- Page 32 Maximum mass of dry cloth 10.0 kg 9.0 kg 8.5 kg Product dimensions 595 mm (W) x 663 mm (D) x 1044 mm (H) Product weight 35 kg Pressure of tap water 0.01 - 1 MPa https://www.panasonic.com © Panasonic Appliances (Vietnam) Co., Ltd. 2021...
