FREEWAY T70 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

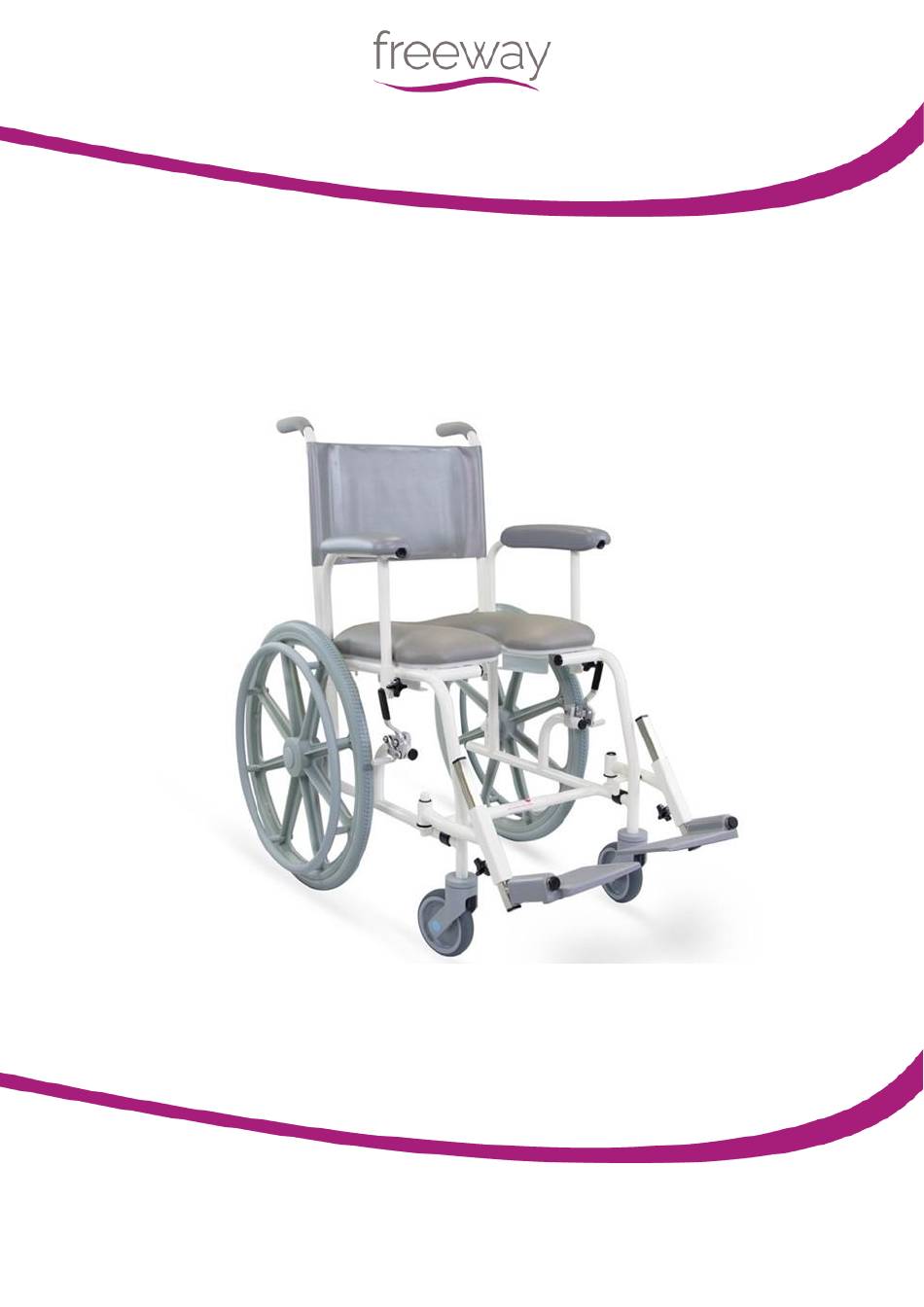

T70 Shower Chair
User Manual
Doc Ref: 999166- en-gb
Rev A
03/04/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T70 and is the answer not in the manual?

Questions and answers

Related Manuals for FREEWAY T70

Summary of Contents for FREEWAY T70

  • Page 1 T70 Shower Chair User Manual Doc Ref: 999166- en-gb Rev A 03/04/24...

  • Page 2: Table Of Contents

    Introduction ....................................4 1 . 1 Manufacture .......................................... 4 1 . 2 Symbols Used ........................................5 1 . 3 Contraindications / Limitations ................................6 1 . 4 Intended Use ........................................6 1 . 5 Safety Instructions and Warnings ................................7 Components/Key Parts ................................
  • Page 3 Environmental Conditions ..............................26 7 . 1 Operating Environment ....................................26 7 . 1 . 1 Normal Operating Conditions....................................26 7 . 2 Storage Conditions ......................................26 7 . 2 . 1 Shipping and Storage Conditions ..................................26 Daily Checks ....................................27 Cleaning ......................................

  • Page 4: Introduction

    This user manual should be kept safe for future reference. Please read and understand this manual in its entirety before using your Freeway Shower Chair. The information in this manual is important for the safety of anyone near the shower chair and must be read and understood to help prevent injuries.

  • Page 5: Symbols Used

    1 . 2 Symbols Used The Table below includes all symbols from BS EN ISO 15223-1:2021 that can be found in this manual and on the Product and what they represent. Refer to this Table when you are unsure of what a symbol represents. Catalogue Number Place of Manufacture Serial number...

  • Page 6: Contraindications / Limitations

    1 . 3 Contraindications / Limitations There are no known “contraindications” associated with the usage of the shower chair, provided it is used as per the manufacturer’s recommendations and guidelines. However, it is recommended that a client specific assessment is completed by a trained and knowledgeable health care professional to determine the method of transfer and use.

  • Page 7: Safety Instructions And Warnings

    1 . 5 Safety Instructions and Warnings Ensure to read and understand all the statements below, for the safety of the caregivers and users, along with warranty requirements. • If you are unsure on the correct use of this product, please contact the manufacturer or a professional for further information or training.

  • Page 8: Components/Key Parts

    Components/Key Parts Please see below to familiarise yourself with the components of the shower chair. If you have not received all the components listed below, contact your local dealer immediately – contact details are provided on the last page of this manual. Item Description Frame...

  • Page 9: Chair Configurations

    2 . 1 Chair Configurations The shower chair is available in various configurations, including width, frame type, seat depth, seat type, armrest type, backrest type and footrest type. See list below for the standard options. Frame Options Frame Type Frame Width (A-Large) (B-Medium) (C-Small) Benefits Standard chair to be used with Standard Frame...

  • Page 10: Accessory List

    Accessory List The list below shows a list of approved compatible accessories that can be ordered at any time during the life of the shower chair. Contact your local dealer to order these parts. Straps and Harnesses Description Part number Comments 880409 For size A width frame...
  • Page 11 For size A, B & C width frames Flow Head Support Cushion 155805 (Only available with extended height backrest) Only available with extended Curved padded head support 910185 height backrest and detachable headrest to take head support 25mm Padding for Headrest 910485 For Size A width detachable headrest to take padding...

  • Page 12: Assembly Instructions

    Hygiene Description Part number Comments Oval Commode Pan and Lid 910214 Cup Shaped Splashguard for a 910216 Suitable for all horseshoe seats Horseshoe Seat Cup Shaped Splashguard for an Only suitable for a medium 910215 Aperture seat opening aperture seat Table 3-1 Assembly Instructions The sections below will give detailed instructions on how to install and remove the accessories from your chair.

  • Page 13: Attaching The Armrest

    4 . 3 Attaching the armrest Remove the armrests from their packaging and remove the 2 star handle black nuts from the plastic bag that was previously removed from the frame. Insert the armrest legs into the sockets, ensuring the rivet is at the front, as shown below in Fig 4.3-1. Tighten the star handle black nuts to secure the armrests in place, as shown below in Fig 4.3-2.

  • Page 14: Attaching Accessories

    4 . 5 Attaching accessories Below are instructions on how to attach all available accessories to the chair in the correct manner. See relevant accessories below: 4 . 5 . 1 Buckle or VELCRO ® Brand fastener Waist Strap Remove the strap from the packaging. b.

  • Page 15: Toe Straps With Velcro ® Brand Fastener

    4 . 5 . 3 Toe Straps with Velcro ® Brand fastener Remove the Toe Straps from the packaging. b. Detach the hook and loop fastening on the top and bottom of the strap, enabling the straps to be threaded through the slots on the footrest. Make sure the longer of the two straps is threaded to the outer side of the footrests, as shown below in Fig.

  • Page 16: Calf And Heel Support

    4 . 5 . 6 Calf and Heel Support Remove the Calf and Heel support from the packaging. b. Detach the strap from the hook and loop fastening to allow it to be threaded around the bottom of the frame, as shown below in Fig. 4.5.6-1. Securing the strap in place by re-attaching it to the hook and loop fastening.

  • Page 17: Pelvic Strap

    4 . 5 . 9 Pelvic Strap Remove the strap from the packaging. b. Thread the 2 adjustment straps around the rear crossbar of the backrest, as shown below in Fig. 4.5.9-1. Secure in place by threading the straps back through the buckle shown below in Fig. 4.5.9-2 and Fig. 4.5.9-3.

  • Page 18: Clip-0N Padded Foot Trays /Individual Clip-On Padded Trays

    4 . 5 . 12 Clip-0n Padded Foot Trays /Individual Clip-on Padded Trays Remove the tray from the packaging. b. Both the Padded Foot Tray and Individual Padded Foot Trays fit to the footplate in the same way. Please consult Fig. 4.5.12-1 and Fig. 4.5.12-3 below, for clarification on the difference between these products. Position the Padded Foot Tray or Individual Padded Foot Trays onto the footplates and firmly press down until they click into position, as shown below in Fig.

  • Page 19: Head Support Cushion

    4 . 5 . 15 Head Support Cushion Remove the cushion from the packaging. b. Unfasten the clips on the straps located on the rear of the padding. Place the Padding to the front of the Headrest shown below in Fig. 4.5.15-1. Secure in place by re-attaching the clips around the back of the backrest, as shown below in Fig.

  • Page 20: Retro Fit Anti-Tip Bars

    4 . 5 . 17 Retro fit Anti-Tip Bars Remove the anti-tip bars from the packaging. b. Unscrew the clamp from the anti-tip bars as shown below in Fig 4.5.17-1. Reattach the clamp to the rear wheel bracket on the frame, as shown below in Fig. 4.5.17-2. d.

  • Page 21: Footrest Adjustment

    5 . 2 Footrest adjustment Gently loosen the star handle black locking nut located at the rear of the hanger shown below in Fig. 5.2-1. b. Set the footrest to your preferred height and secure it in place using the locking nut shown below in Fig. 5.2-2.

  • Page 22: How To Use And Adjust The Waist Straps

    5 . 5 How to use and adjust the waist straps Once the straps have been attached to the frame, please consult section 4 accessory attachment instructions. b. Gently loosen the adjustment straps to enable the buckles to come together while the user is seated in the chair, as shown below in Fig.

  • Page 23: Technical Specification

    Technical Specification 6 . 1 Shower Chair Frame Dimensions T70 Specification – millimetre Dimensions (Ref to drawing) T70A T70B T70C A – Maximum Height B – Maximum Width C – Internal Armrest Width D – Internal Height E – Internal Width F –...
  • Page 24 T70 AUTO Specification – millimetre Dimensions (Ref to drawing) T70A AUTO T70B AUTO T70C AUTO A – Maximum Height 1000 1000 1000 B – Maximum Width C – Internal Armrest Width D – Internal Height E – Internal Width F – Toilet Seat Internal Height Clearance G –...

  • Page 25: Shower Chair Aperture Dimensions

    L – Seat Depth M – Centre of Seat to Rear of Castor Turning Circle Wheel Size Castor Size Footrest Adjustment T70 Weight Specifications T70A T70B T70C Safe Working Load (SWL) 200kg 200kg 200kg Commode SWL (Capacity) Product & Packaging Weight...

  • Page 26: Environmental Conditions

    Environmental Conditions The sections below will give detailed information regarding the environmental conditions the product should maintain throughout its life cycle. Failure to adhere to these conditions may negatively impact the function of the product. If you are unsure of any environmental conditions, always seek advice. 7 .

  • Page 27: Daily Checks

    Daily Checks Inspection is to be completed prior to each use by the user of the shower chair. Should any of the components in the table below fail the inspection, DO NOT use the shower chair. Contact your local authorised dealer for service – contact details are on the last page of this manual. Ensure all component inspections in the table below are completed prior to each use of the shower chair.

  • Page 28: Cleaning

    Cleaning To reduce the risk of cross-contamination it is recommended to clean the shower chair and accessories before use by a different person. Please follow the recommended cleaning guidelines below on cleaning and disinfecting the shower chair. 9 . 1 Metal Frame Cleaning The metal frames of the chairs are powder-coated with a coating containing a silver anti-microbial additive.
  • Page 29 • A minimum of 5 minutes contact time with the outer components is recommended to prevent virucidal infections, whilst maintaining the integrity of the product. The product can withstand a longer contact period, however a minimum of 5 minutes is required to provide an effective cleaning regime. •...

  • Page 30: Servicing

    Servicing Regular servicing on the shower chair will help prevent breakdowns and reduce repair costs. It will also improve the quality of the product for the end users. To reduce the risk of injury, no service is to be carried out on the shower chair while in use. Service must be completed by an authorised service engineer only.

  • Page 31: Troubleshooting

    Troubleshooting Should a problem arise with the use of the shower chair, review the Table below. Find the fault and complete the recommended solution. If the fault is not listed below or the solution does not correct the problem, contact your local authorised dealer immediately –...

  • Page 32: Warranty

    Warranty It is impossible for all the risks to be eliminated from use of this product, but to reduce risk and improve safe and proper use, the user should always read and understand the user manual before use. Product failure may occur due to lack of maintenance and care, misuse, unauthorised and improper servicing or alterations, improper storage, and environmental use, or through normal use wear and tear.

  • Page 33: Service Record History

    Service Record History Complete this section after each service, repair inspection and/or maintenance. Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐...
  • Page 34 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
  • Page 35 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
  • Page 36 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
  • Page 37 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
  • Page 38 User notes: 999166 – Rev A Page 38 of 40...
  • Page 39 User notes: 999166 – Rev A Page 39 of 40...
  • Page 40 Dealer/service contact details: Manufacturer contact details: Prism Medical UK Unit 1, Tir Llwyd Industrial Estate, St Asaph Avenue, Kinmel Bay, Conwy, United Kingdom, LL18 5JZ Telephone Number: 01924 840100 Disclaimer While every effort has been made to ensure the accuracy of information contained in this user manual, no liability can be accepted by Prism Medical UK for any errors or omissions.
