Related Manuals for Carolina Cooker 133079
Summary of Contents for Carolina Cooker 133079

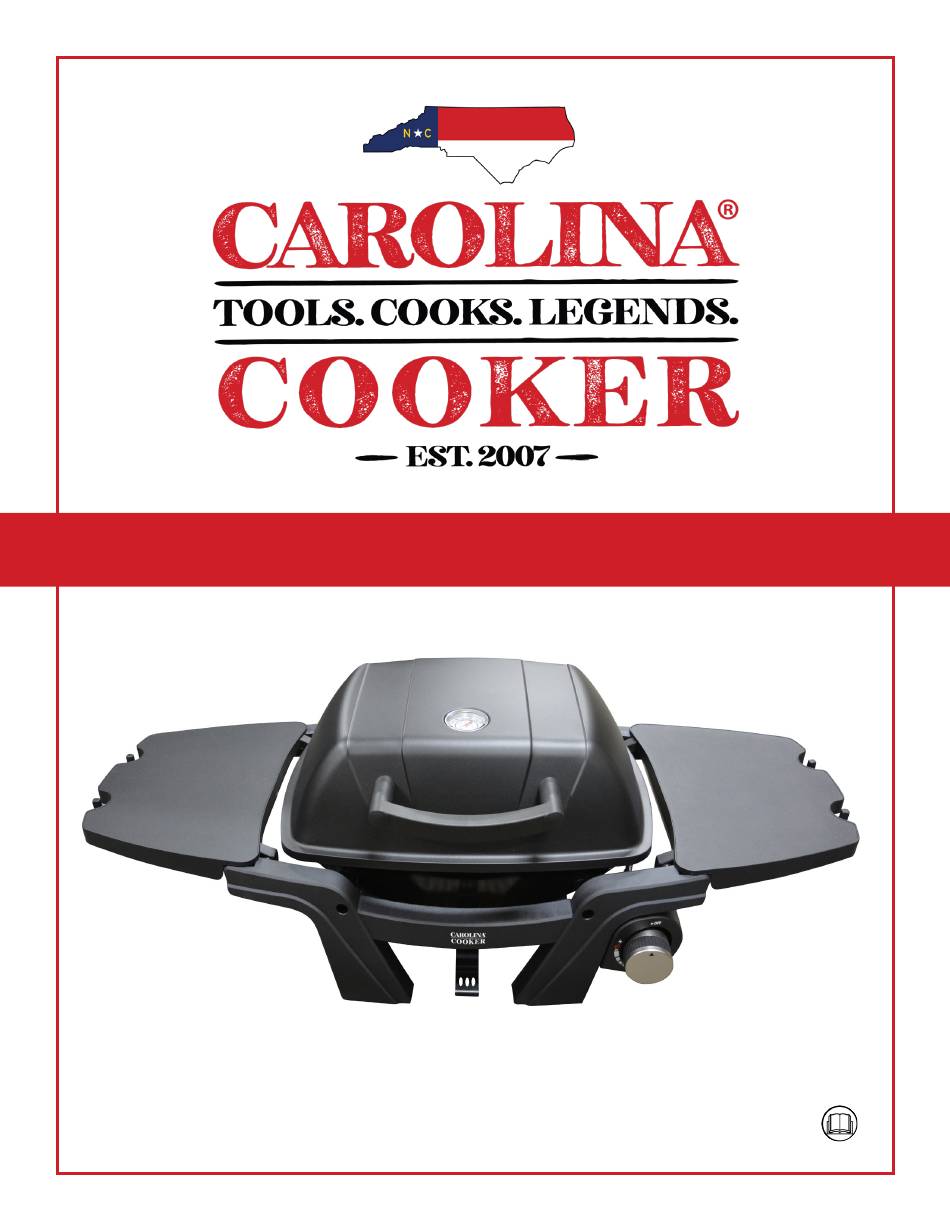

- Page 1 Portable Tabletop Gas Grill Owner’s Guide 133079 Read and understand this manual to safely operate and maintain this product.
- Page 2 OWNER’S GUIDE Thank you for purchasing our portable grill! WARNING: FOR OUTDOOR USE ONLY • This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. • Read and follow all warnings and instructions before assembling and using the appliance. •...
-
Page 3: Table Of Contents
13. Warranty ........17 Carolina Cooker® Model M133079... -
Page 4: Warnings
• This appliance is not intended for commercial use. • The pressure regulator supplied with the Gas Grill must be used. • Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. Model M133079 Carolina Cooker® April 2024 844-478-4334... -
Page 5: Spare Parts
133528 • Our mail order hours of operation are Monday through Flame Tamer 133529 Friday, 7:30am to 8:00pm, and Saturday from 8:00am to Accessory Parts 5:00pm (EST). Hose Adapter for Propane Tank 91056 Carolina Cooker® Model M133079 844-478-4334 April 2024... -
Page 6: Parts Breakdown
Parts Breakdown Model M133079 Carolina Cooker® April 2024 844-478-4334... -
Page 7: Preparations
Step1. Using screws (AA) and washers (BB). Install all Step2. Please make sure the valve end into the burner screws first and then tighten. end. Warning: It is very important safety Checking step before using the grill. 4PCS 4PCS Carolina Cooker® Model M133079 844-478-4334 April 2024... - Page 8 Step3. Place and push Burner Control Knobs(F) in the right position as below. Step4. Place and push Burner Control Knobs(F) in the right position as below. Figure 01. Model M133079 Carolina Cooker® April 2024 844-478-4334...
- Page 9 Step5. Then put cooking grates (B) upon it as figure 02. Figure 02. Step6. Turn the regulator clockwise and install it on the exhaust buckle of the grill as figure 03. Figure 03. Carolina Cooker® Model M133079 844-478-4334 April 2024...
- Page 10 Place grease tray(D) on the grease support of fire bowl as figure 04 . Figure 04. Step8. Then, place 2 pcs side tables (E) onto each side of the carry handles as figure 05. Figure 05. Model M133079 Carolina Cooker® April 2024 844-478-4334...
- Page 11 Leak Testing need: Brush a half-and-half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds, and valves. Bubbles will indicate a gas leak, or have the grill inspected by a certified gas installer Carolina Cooker® Model M133079 844-478-4334...
-
Page 12: Fuel
This could cause intense fire with risk of property damage, serious injury or death. If you see, smell or hear gas escaping, immediately get away from the LPG cylinder and appli- ance and call fire department. Model M133079 Carolina Cooker® April 2024 844-478-4334... - Page 13 LPG is nontoxic, odor less and color- Hand-tighten the coupling nut in a less when produced. For safety and clockwise direction. easy detection, LPG has been given an odor similar to rotten cabbage. Carolina Cooker® Model M133079 844-478-4334 April 2024...
-
Page 14: Ignition
If ignition does NOT occur in 5 seconds, turn burner controls OFF, wait 5 minutes and repeat lighting procedure. If burner does not ignite with open valve, gas will continue to flow out of burner and could accidentally/ inadvertently ignite with risk of injury Model M133079 Carolina Cooker® April 2024 844-478-4334... - Page 15 STEP 03 Light a match (or long lighter) no shorter than 11 inches long. Place the flame on the right or left side of the burner. STEP 04 Push in and turn the control knob to the HIGH position. Ensure burner lights and stays lit. Carolina Cooker® Model M133079 844-478-4334 April 2024...
-
Page 16: Place Your Grill
5. Never store or use gasoline or other flammable or volatile substances in the vicinity of this grill or in the vicinity of any other heat-generating appliance, because of the danger of starting a fire. 6. Do not obstructing the flow of combustion and ventilation air. Model M133079 Carolina Cooker® April 2024 844-478-4334... -
Page 17: Leak Testing Instructions
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by STOP a certified gas installer or dealer. Do not use the grill until the leak has been corrected. Carolina Cooker® Model M133079 844-478-4334... -
Page 18: Cleaning & Maintenance
WARNING: DO NOT APPLY ANY CLEANERS OR LIQUIDS TO BURNER ELEMENT OR ATTEMPT TO CLEAN IN ANY WAY. DO NOT USE WATER OR LIQUIDS TO CLEAN GRILL INTERIOR. – Replace flame tamer. CAUTION: DO NOT OPERATE GRILL WITHOUT FLAME TAMER IN PLACE. Model M133079 Carolina Cooker® April 2024 844-478-4334... -
Page 19: Trouble Shooting
Make sure grill is out of the way of direct wind. 13. Warranty Carolina Cooker® warrants, to the original purchaser, Note: Paint finish may burn off under normal use and, the appliance to be free of defects in material and therefore, it carries no warranty. - Page 20 © Direct Distributors Inc. 2024 No portion of this material may be reproduced or modified without the express written agreement of Direct Distributors Inc. Direct Distributors Inc. family of stores is Agri Supply®. Carolina Cooker® is a brand of Agri Supply®.
