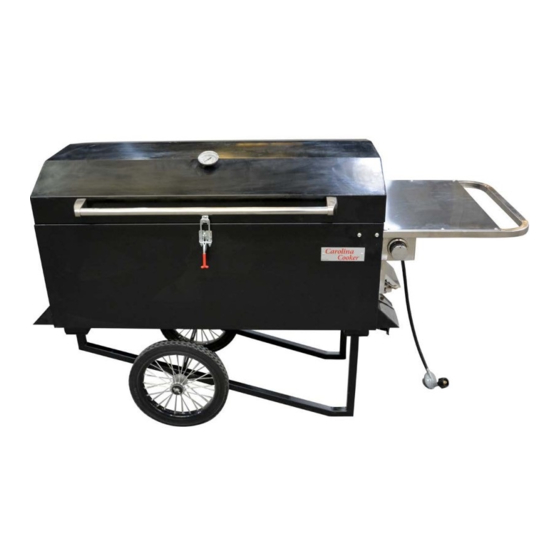

2 x 4 Grill Owner's Guide
M107828
Read and understand this manual to safely operate and maintain this product.
4006980

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M107828 and is the answer not in the manual?

Questions and answers

Related Manuals for Carolina Cooker M107828

Summary of Contents for Carolina Cooker M107828

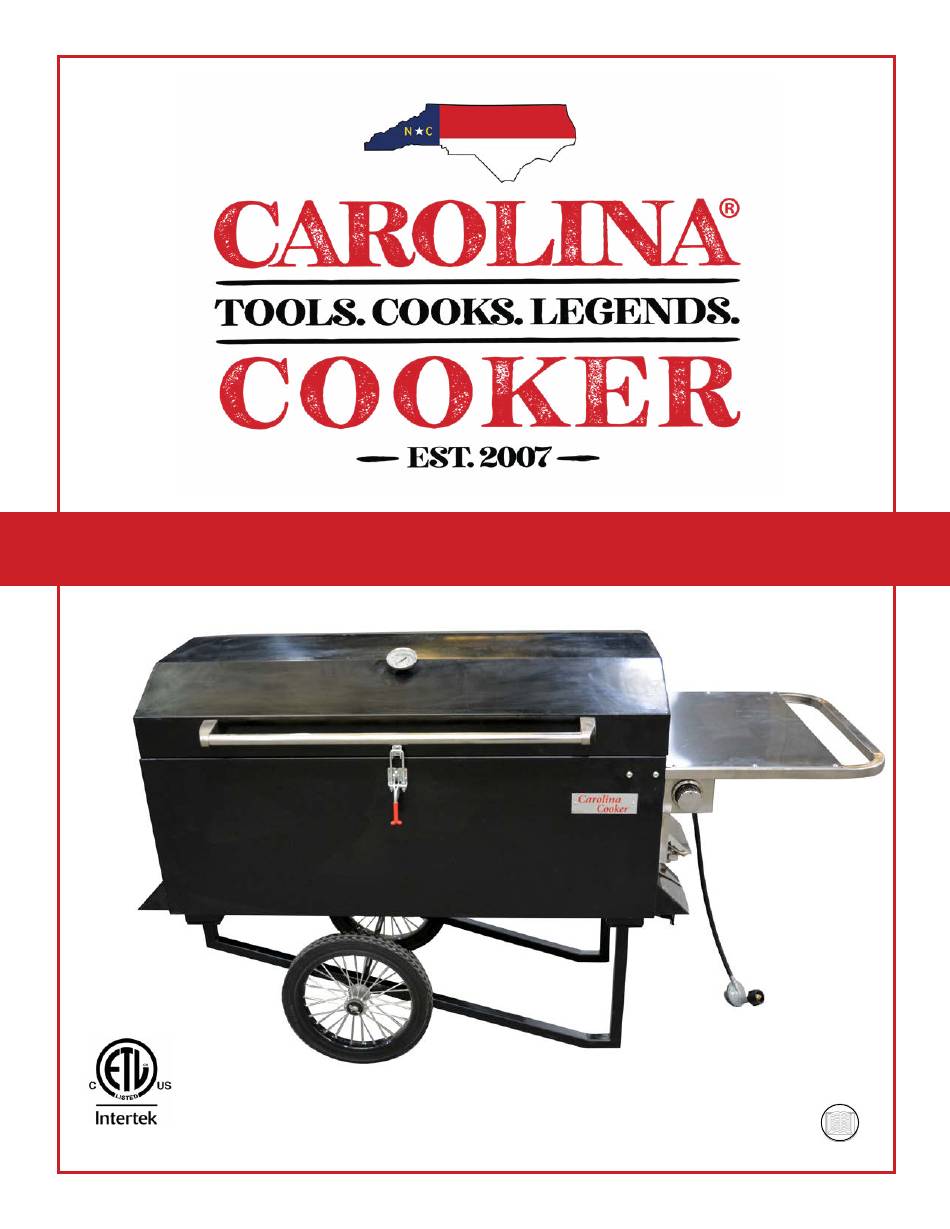

  • Page 1 2 x 4 Grill Owner’s Guide M107828 Read and understand this manual to safely operate and maintain this product. 4006980...
  • Page 2 Conforms to ANSI STD Z21.58 -2018 Certificated to CSA STD 1.6-2018 Model : M107828 CC 2X4 For Outdoor Use Only ! ! ! For Outdoor Use Only Please read this manual carefully to understand all the instructions about how to install, operate and maintain for optimum performance and longevity.

  • Page 3: Table Of Contents

    Table of Contents 1. Safety Symbols ......1 9. Care & Maintenance ......15 9.1 Grease Oil Bucket ...... 15 2.

  • Page 4: Safety Symbols

    DO NOT use your 2 X 4 Grill in garages, breezeways, sheds or any enclosed area. NOT FOR USE BY CHILDREN. If these instructions are ignored, a hazardous fire or explosion could result in physical injury, death or property damage! Carolina Cooker® Model M107828 844-478-4334 June 2021...

  • Page 5: General Safety Instructions

    22. Do not use the burner until leak check has been made. 23. Turn off the cylinder valve when your 2 X 4 Grill is not in use. 24. Ensure the control knobs are in the “OFF” position when not in use. Model M107828 Carolina Cooker® June 2021...

  • Page 6: Gas Requirement

    2 X 4 Grill. Do not subject propane cylinders to excessive heat. • WARNING Never store a LP gas cylinder inside a building or in the vicinity of any gas-burning appliance. Carolina Cooker® Model M107828 844-478-4334 June 2021...

  • Page 7: Cylinder Specifications

    The system has a flow limiting device which, when activated, will limit the flow of gas to 10 cubic feet per hour. • NEVER use 2 X 4 Grill without leak testing this connection. Model M107828 Carolina Cooker® June 2021 844-478-4334...

  • Page 8: Lp (Propane) Gas Supply Connection

    Exchange your Type 1 cylinder with OPD safety feature-equipped ONLY. • Always keep new and exchanged LP tanks in upright position during use, transit or storage. Leak test new and ex- changed LP tanks BEFORE connecting to burner. Carolina Cooker® Model M107828 844-478-4334 June 2021...

  • Page 9: Locating The Product

    You must maintain proper air flow for your product to perform as it was designed. If airflow is blocked, overheating and poor combustion will result. Make sure not to block the 1” front air inlet along the bottom of the face or more than 75% of the support grid surface with pans or griddles. Model M107828 Carolina Cooker® June 2021...

  • Page 10: Assembly And Startup Procedure

    Item Description Cooker with burners Axle Wheels Support Stand Legs Cooking Grate Side Shelf Hardware LP Tank Holder Grease Drain Valve Grease Oil Bucket Thermometer Handle for Lid Regulator and Hose (not pictured) Carolina Cooker® Model M107828 844-478-4334 June 2021...

  • Page 11: Assembly

    5.2.1 Tools Required Contents Tool Used For Phillips Screwdriver General Assembly 17 & 19mm Connecting hose to valve assembly Open End Wrenches Adjustable Pliers Connecting drain valve Bending cotter pin Pliers prongs Model M107828 Carolina Cooker® June 2021 844-478-4334...
  • Page 12 LP propane tank hook 5. The LP propane tank holder can also be installed on the back support stand leg, which has the side with the tank hook. 6. Use 2 bolts, washers and nuts with Phillips screwdriver to secure the bracket. 7. Notice: The flat side of support needs to face the back of the grill for proper mounting. Carolina Cooker® Model M107828 844-478-4334 June 2021...
  • Page 13 CAUTION The cooker is heavy and requires two people to roll the cooker into an upright position. Model M107828 Carolina Cooker® June 2021 844-478-4334...
  • Page 14 14. Slide the side shelf into the body of the grill through the 2 square holes. 17. Open the grill lid, and Install the handle on the grill using the supplied 4 bolts. 15. Tighten all 4 bolts using Phillips screwdriver to the body of the grill. Carolina Cooker® Model M107828 844-478-4334 June 2021...
  • Page 15 18. Hook the handle of the grease oil bucket to the grease bail at the bottom of the grill. 19. Install Thermometer using the supplied wing nut and tighten to snug fit. Model M107828 Carolina Cooker® June 2021 844-478-4334...

  • Page 16: Pre-Operation Leak Testing

    Gas tanks now come equipped with a leak detector mechanism internal to the tank; when gas is allowed to escape rapidly, it shuts off the gas supply. A leak may significantly reduce the gas flow making the 2 X 4 Grill difficult to light or causing low flames. Carolina Cooker® Model M107828 844-478-4334 June 2021...

  • Page 17: Lighting The Burner

    4. If ignition does not occur in 5 seconds, turn the knob to OFF, wait 5 minutes to allow gas to dissipate and repeat the process. 5. To turn off, turn control knob clockwise until it locks in OFF position. Model M107828 Carolina Cooker® June 2021...

  • Page 18: Operations & Features

    2. Inspect the burner for damage (cracks or holes) and if such damage is found, order and install a new burner. 3. After installation, check to ensure that gas valve orifices are correctly placed inside the proper positions, also check position of spark electrode. Carolina Cooker® Model M107828 844-478-4334 June 2021...

  • Page 19: Stainless Steel

    6. Clean outdoor cooking gas appliance, including special surfaces, with recommended cleaning agents, if necessary. 7. Check and clean burner for insects and insect nests. A clogged tube can lead to a fire beneath the 2 X 4 Grill. Model M107828 Carolina Cooker®...

  • Page 20: Recommended Cleaners

    10. Warranty Carolina Cooker® warrants, to the original purchaser, NOTE: Paint finish may burn off under normal use and, the appliance to be free of defects in material and therefore, it carries no warranty. workmanship for a period of one year from date of purchase. 11. Replacement Parts Replacement parts for many of our appliances are M107828 CC 2 X4 Grill Replacement Parts stock items. All parts listed in this table are available on Description Part Number our website and/or our store locations. If the part you Burner 120065 need is not available for on-line purchase or in-store pickup, simply call our Mail Order Center at...

  • Page 21: Parts Breakdown

    13 regulator hose Assembly Flavorizer grill stand bar Burner tank holder wheel Regulator Hose Assembly knob Support Stand Legs knob base valve LP Tank Holder Wheel Control Knob Knob Base Gas Valve Model M107828 Carolina Cooker® June 2021 844-478-4334...

  • Page 22: Troubleshooting

    If the 2 X 4 Grill does not function properly, use the chart below before contacting your dealer for service. You may save yourself the cost of a service call. Troubleshooting is for general purposes only. If the problem still exists, contact your dealer or the nearest authorized agency for service. Carolina Cooker® Model M107828 844-478-4334 June 2021...
  • Page 23 • Gas is leaking from a faulty connection. Tighten connections with an ad- Fire at any connection. justable wrench and replace damaged parts. • Perform a leak test on all connections before cooking on the 2 X 4 Grill again. Model M107828 Carolina Cooker® June 2021 844-478-4334...
  • Page 24 Distributed by Direct Distributors, Inc. Carolina Cooker ® P.O. Box 799 Garner, NC 27529 Orders: 1-833-926-6537 Inquiries: 1-844-478-4334 Web: www.CarolinaCooker.com For a full-size versions of the English, Spanish & French Owner’s Guide, scan the QR Code. © Direct Distributors Inc. 2021...
