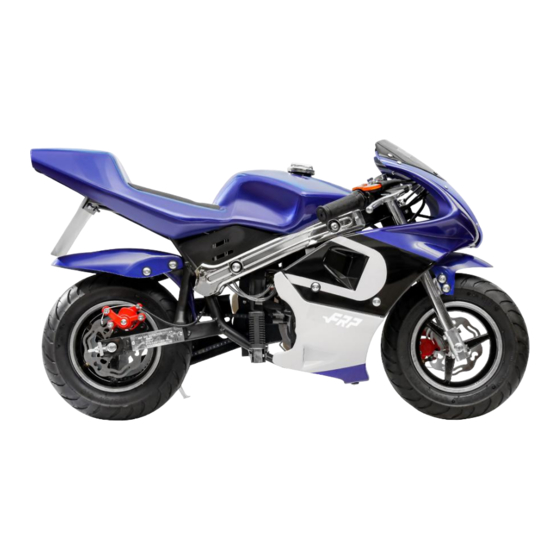

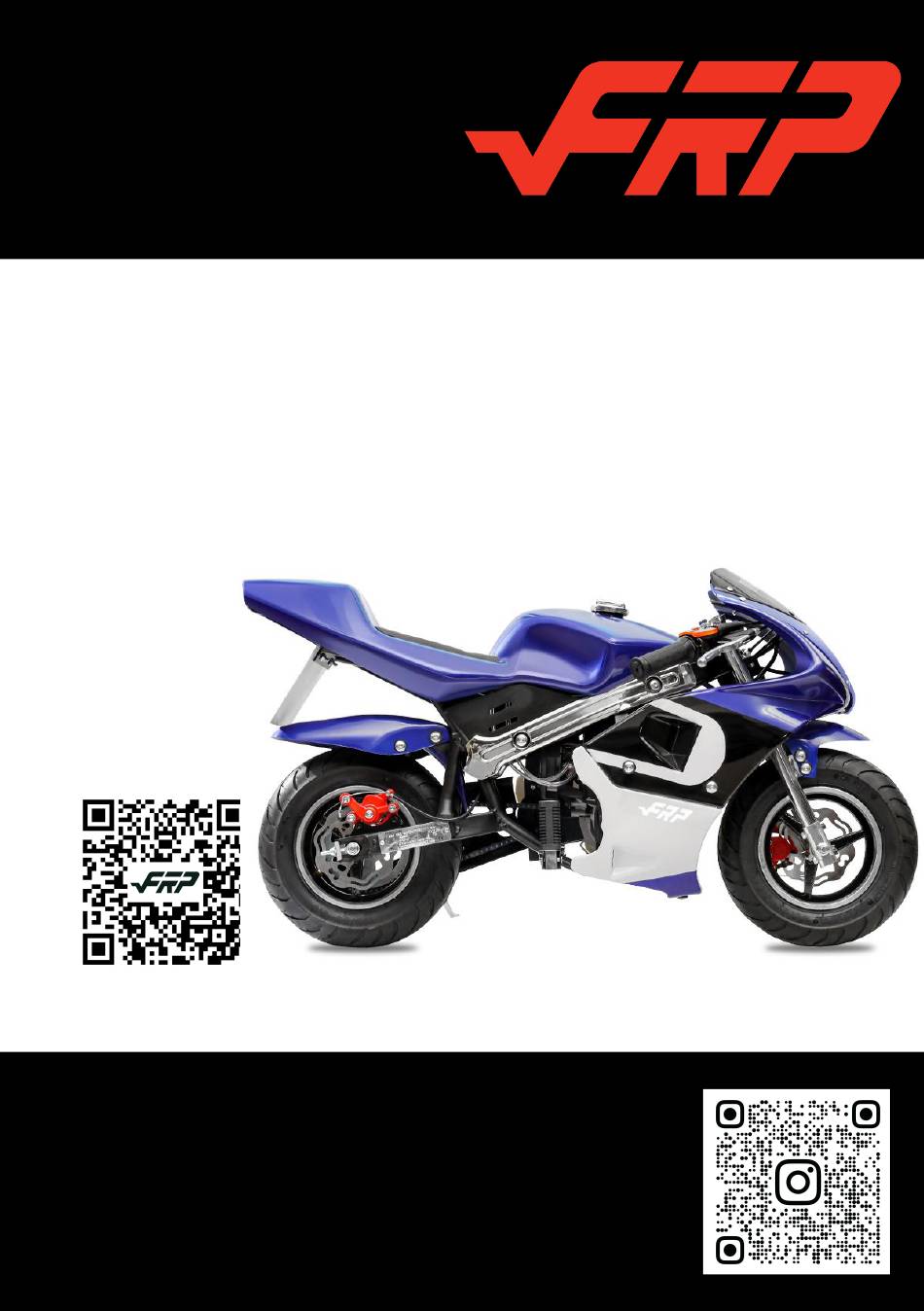

- Page 1 G0002 Off Road Pocket Bike User Manual Digital User Manual www.frptoys.com csr@frptoys.com 833-970-3777 (Toll Free) M-F 8am-5pm PST...
- Page 3 CAUTION SAFE FOR USE Δ This mark notices a very important item for safety. Be sure to observe the notice. 1. Engine oil: Gasoline (1:50) is mixed in the oil tank. More than 92 gasoline or gasoline with 10% ethanol are applicable on this vehicle.
- Page 4 CAUTION PROHIBITED ITEMS Δ Do not allow anyone who does not Δ Do not aimlessly adjust the revolution understand this instruction manual to speed setting of the engine. operate the bike. Δ Do not check any spark while keeping Δ Racing should use a mixture of the spark plug removed.
- Page 5 IMPORTANT Please read before using this product. READ THIS FIRST! WARNING SAFETY This product does not conform Persons without excellent vision, to Federal Motor Vehicle balance, coordination, reflexes, Standards and is not intended muscle and bone strength, and for operation on public streets, good decision-making roads, or highways.
- Page 6 QUICK REFERENCE SAFETY GUIDE Fuel Safety Transportation and Storage Mix and pour fuel outdoors away from Carry your motorcycle by the handlebar sparks or flames. tube with the engine off and the muffler away from your body. Only use a container approved for fuel. Allow the engine to cool, empty the fuel Do not smoke or allow smoking near the tank, and fold the motorcycle before...
-
Page 7: Table Of Contents
TABLE OF CONTENTS 1 VEHICLE INTRODUCTION 1.1 Technical Specification 1.2 Mini Parts Description 2 BEFORE STARTING 3 FAST INSTALLATION 3.1 Install Kickstand 3.2 Install Windshield 4 PREPARING FOR USE 4.1 Before Start-up 4.2 Before Riding 4.3 Starting the Pocket Bike 5 OPERATION 5.1 Operation and Running 5.2 Operating Procedures... -
Page 8: Vehicle Introduction
VEHICLE INTRODUCTION 1.1 Technical Specification Engine type: 49.4cc 2-stroke/EPA Approved Fuel: Unleaded petrol & 2 cycle engine oil mixing Oil Mixing Ration: 50:1 Start Mode: Hand Pull Start Brake: Front & Rear disc brake Tire: 90/65-6.5 Pneumatic (F),110/50-6.5(R) Max Load: 165 lbs(74.8kgs) Net Weight: 50 lbs(22.7kgs) Fuel Capacity: 0.26gal(1.5L) Driving Method: T8F Chain... -
Page 9: Mini Parts Description
VEHICLE INTRODUCTION 1.1 Mini Parts Description Speed control handle Gas tank cover Kill switch Throttle cable Gasoline tank Brake bar Rear fender Front fender Rear tyre Engine Chain adjuster Pull start Kickstand Front tyre Caliper Disk brake... -
Page 10: Before Starting
BEFORE STARTING Please unpack the contents of the box. Remove the foam separators that are intended to safeguard the components during transportation. Thoroughly examine the contents of the box for any signs of paint scratches, dents, or cables that may have been bent during shipping. It is important to note that since the Dirt Bike is 95 percent assembled and carefully packaged at the factory, minor blemishes or dents on the box should not pose any... -
Page 11: Fast Installation
FAST INSTALLATION Install Kickstand Insert the kickstand into the mounting hole on the motorcycle frame, ensuring a secure connection between the kickstand and the frame. Use a 10mm wrench to tighten the kickstand. 2. After installation, carefully inspect the kickstand to ensure it is securely and reliably attached. -
Page 12: Preparing For Use
PREPARING FOR USE Before Start-up 1. Inspect equipment Check all bolts & nuts, brakes, engine, etc. 2. Refuel Use the mixture of the gasoline and the two-stroke engine oil. The volume ratio is 50:1. Use a clean and special fuel glass and grasp cap to shake for more than 30 seconds. -
Page 13: Before Riding
PREPARING FOR USE Before Riding 1. Ensure all the exposed bolts and screws are tightened. 2. Raise the kickstand to its upright position. 3. When riding for the first time, wait 3-5 minutes after pulling the pull start to allow the engine to fully warm up before riding. -
Page 14: Starting The Pocket Bike
PREPARING FOR USE Starting the Dirt Bike 1. Before starting, make sure to fill the fuel tank with the recommended fuel grade, maintaining a minimum fuel level of at least two-thirds of the tank's total capacity. 2. Depress the vent valve to release any residual air from the fuel line until no air bubbles are visible in the fuel line. -
Page 15: Operation
OPERATION Operation and Running The bike is packed in a cardboard carton. After unpacking. Very smooth and perfect function of the Bowden cable throttle and both brakes. Fill the fuel tank with fuel. (Gas-oil mix 50:1). Failure to use the proper oil mix ratio will result in Engine damage which you will be responsible for. -
Page 16: Controls
CONTROLS Braking 1. To brake, release the hand throttle and depress the hand brake levers (on the left and right side of the handlebars). 2. Gradually decrease the engine speed to idle and turn off the kill switch on the handlebar. This will turn the engine OFF. Braking System The motorcycle uses a disc/caliper braking system activated by a hand brake lever on the left and right side of the handlebar. -
Page 17: Adjustment
ADJUSTMENT Carburetor Adjustment Never start the engine without the complete clutch cover assembled! Otherwise, the clutch can come loose and cause injuries. When the engine is tested at the factory, the Carburetor is basically adjusted. Further adjustment may be required occasionally, depending on climate and altitude. -
Page 18: Chain Adjustment
ADJUSTMENT Chain Adjustment The chains will come adjusted from the factory. However, it may be necessary to adjust the sprockets from time to time. The chain must be well aligned with the sprockets otherwise they may start to rub and chafe. Which will result in a shortened chain life. How tight should the chain be? If the chain is skipping or jumping on the pulley teeth, it is too loose and may be... -
Page 19: Maintenance And Storage
MAINTENANCE AND STORAGE Maintenance Schedule Proper care of your motorcycle will ensure optimal performance and a longer life span. The following are a few maintenance suggestions that will keep your motorcycle running in top condition: Daily Maintenance: Perform each time you ride your motorcycle. Clean fuel leakage or air leakage. -
Page 20: Trouble Shooting
TROUBLE SHOOTING 1. Fail to start. 4. The gasoline engine stops suddenly when running. 1) . Gasoline mixed with water, please replace it. 1) Run out of gasoline. 2) . The spark plug has 2) The high-voltage wire drops. accumulated carbon or has been 3) The spark plug has broken through. - Page 23 Warranty BKAA GROUP CORPORATION– EMISSION CONTROL SYSTEM WARRANTY YOUR WARRANTY RIGHTS AND OBLIGATIONS The emission control system warranty period for this vehicle begins on the date the vehicle is delivered to the ultimate purchaser and each subsequent purchaser other than an authorized dealer, or the date it is first used as a demonstrator, lease, or company vehicle, whichever comes first and continues for 5,000 km or 30 months, whichever comes first, provided there has been no abuse, neglect or improper maintenance of your vehicle.
- Page 24 LIST OF EMISSION RELATED PARTS EXCLUSIONS AND LIMITATIONS This warranty does not cover the following: Failures or malfunctions of the emission control systems caused by abuse, alteration, accident, misuse, the use of leaded gasoline. Replacement of expendable maintenance items unless they are original equipment defective in material or workmanship under normal use, and the first required replacement interval for the item has not been reached.
- Page 25 Important Notice ------------------------------------ **Contact Information** If you encounter any issues during use, please cease operation immediately and refer to the manual or contact our customer service team. - Customer Service: 833-970-3777 (Toll Free) - Email: csr@frptoys.com Thank you for choosing our product. We wish you a delightful user experience! Disassembly and Assembly Video Instruction...
