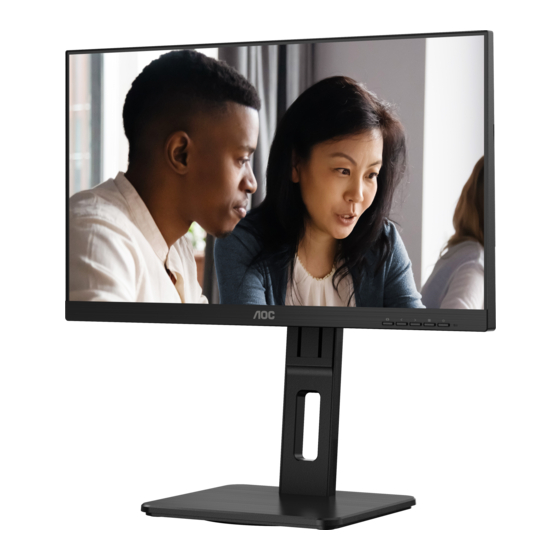

- Page 1 LCD Monitor User Manual 22E2UMF ® www.aoc.com ©2023 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Stand & Base Setup ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Wall Mounting................................ -
Page 3: Safety
Safety National Conventions The following subsections describe national conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Warranty card Stand Base Power Cable USB Cable D-SUB Cable HDMI Cable DP Cable Audio Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Stand & Base Setup
Stand & Base Setup Please setup or remove the base following the steps as below. Setup: Remove: Specification for base screw: M6*16 mm (effective thread 5.8 mm) -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle To achieve the best viewing experience, it is recommended that the user can make sure they are able to look at their whole face on the screen, then adjust the monitor’s angle based on personal preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 150mm NOTE:... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1011 1. USB3.2 Gen1+USB chargingx1 2. USB 3.2 Gen1x1 3. USB upstream 4. USB3.2 Gen1x2 5. Power switch 6. Power 7. DisplayPort 8. HDMI 9. Analog (D-Sub 15-Pin VGA cable) 10. -
Page 12: Wall Mounting
Dk=8.0±0.2 H=2.0±0.1 - 0.5 Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. Always contact manufacturer for wall-mount installation. 0° 90° -5° * Display design may differ from those illustrated. - Page 13 WARNING: 1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. 2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
-
Page 14: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function is works with DP/HDMI 2. Compatible Graphics Card: Recommended list is as below, also could be checked by visiting www.AMD.com Graphics Cards • Radeon™ RX Vega series • Radeon™ RX 500 series • Radeon™ RX 400 series •... -
Page 15: Adjusting
Adjusting Hotkeys Source/Auto/Exit Clear Vision/< Volume/> Menu/Enter Power Menu/Enter When there is no OSD, Press to display the OSD or confirm the selection. Power Press the Power button to turn on the monitor. Volume When there is no OSD, Press > Volume button to active volume adjustment bar, Press < or > to adjust volume.(HDMI) Source/Auto/Exit When the OSD is closed, press Source/Auto/Exit button will be Source hot key function. - Page 16 Clear Vision 1. When there is no OSD, Press the “ <” button to activate Clear Vision. 2. Use the “ <” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. 3. Press and hold “ <” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 17: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Image Setup Color Setup Picture Boost OSD Setup Game Setting Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard HDR Mode 1). Press the Menu-button to activate the OSD window. 2). -
Page 18: Luminance
Luminance Luminance Image Setup Color Setup Picture Boost OSD Setup Game Setting Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard HDR Mode Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment. Standard Standard Mode. Text Text Mode. Internet Internet Mode. -
Page 19: Image Setup
Image Setup Color Setup Picture Boost OSD Setup Game Setting Extra Exit Image Setup Luminance Clock H. Position Phase V. Position Sharpness Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Adjust Picture Phase to reduce Horizontal-Line Phase 0-100 noise Sharpness 0-100 Adjust picture sharpness... -
Page 20: Color Setup
Color Setup Color Setup Picture Boost OSD Setup Game Setting Extra Exit Luminance Image Setup Color Temp. Warm DCB Mode Color Gamut Panel Native Green DCB Demo LowBlue Mode Blue Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM. -
Page 21: Picture Boost
Picture Boost OSD Setup Extra Exit Luminance Image Setup Picture Boost Game Setting Color Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame on or off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness... -
Page 22: Osd Setup
OSD Setup Extra Exit OSD Setup Game Setting Luminance Image Setup Color Setup Picture Boost Language English H. Position Transparence V. Position Timeout Break Reminder DP Capability Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2 support G-SYNC/ DP Capability 1.1/1.2 Adaptive-Sync function... -
Page 23: Game Setting
Game Setting Extra Exit Picture Boost OSD Setup Game Setting Luminance Image Setup Color Setup Frame Counter Game Mode Game Color Shadow Control Overdrive DiaPoint DiaPoint DiaPoint Adaptive-Sync No optimization by Smart image game For playing FPS (first Person Shooters) games. Improves black level in dark theme. -
Page 24: Extra
Extra Game Setting Extra Exit Luminance Image Setup Picture Boost OSD Setup Color Setup Input Select Auto Image Ratio Wide Resolution : 1920(H)X1080(V) Auto Config. DDC/CI H. Frequency : 67KHz Off Timer Reset V. Frequency : 60Hz Input Select Select Input Signal Source Auto adjust the picture to default. -
Page 25: Exit
Exit Picture Boost OSD Setup Luminance Image Setup Color Setup Game Setting Extra Exit Exit Exit the main OSD... -
Page 26: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 27: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 28: Specification
Specification General Specification Model name 22E2UMF Driving system TFT Color LCD Viewable Image Size 54.6cm Diagonal(21.5’’ Wide Screen) Panel Video R, G, B Analog Interface & HDMI Interface & DP Interface Separate Sync. H/V TTL Display Color 16.7M Colors Horizontal scan range 30k~85kHz Vertical scan range... -
Page 29: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION(+/-1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.000 MAC MODES VGA 640x480@67Hz 35.000 66.667 IBM MODE 720x400@70Hz 31.469 70.087 800x600@56Hz 35.156 56.25 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 75.000 MAC MIDE SVGA... -
Page 30: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. - Page 31 20-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name ML_Lane 3 (n) ML_Lane 0 (p) ML_Lane 3 (p) CONFIG1 ML_Lane 2 (n) CONFIG2 AUX_CH(p) ML_Lane 2 (p) ML_Lane 1 (n) AUX_CH(n) Hot Plug Detect ML_Lane 1 (p) Return DP_PWR ML_Lane 0 (n) DP_PWR...
-
Page 32: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
