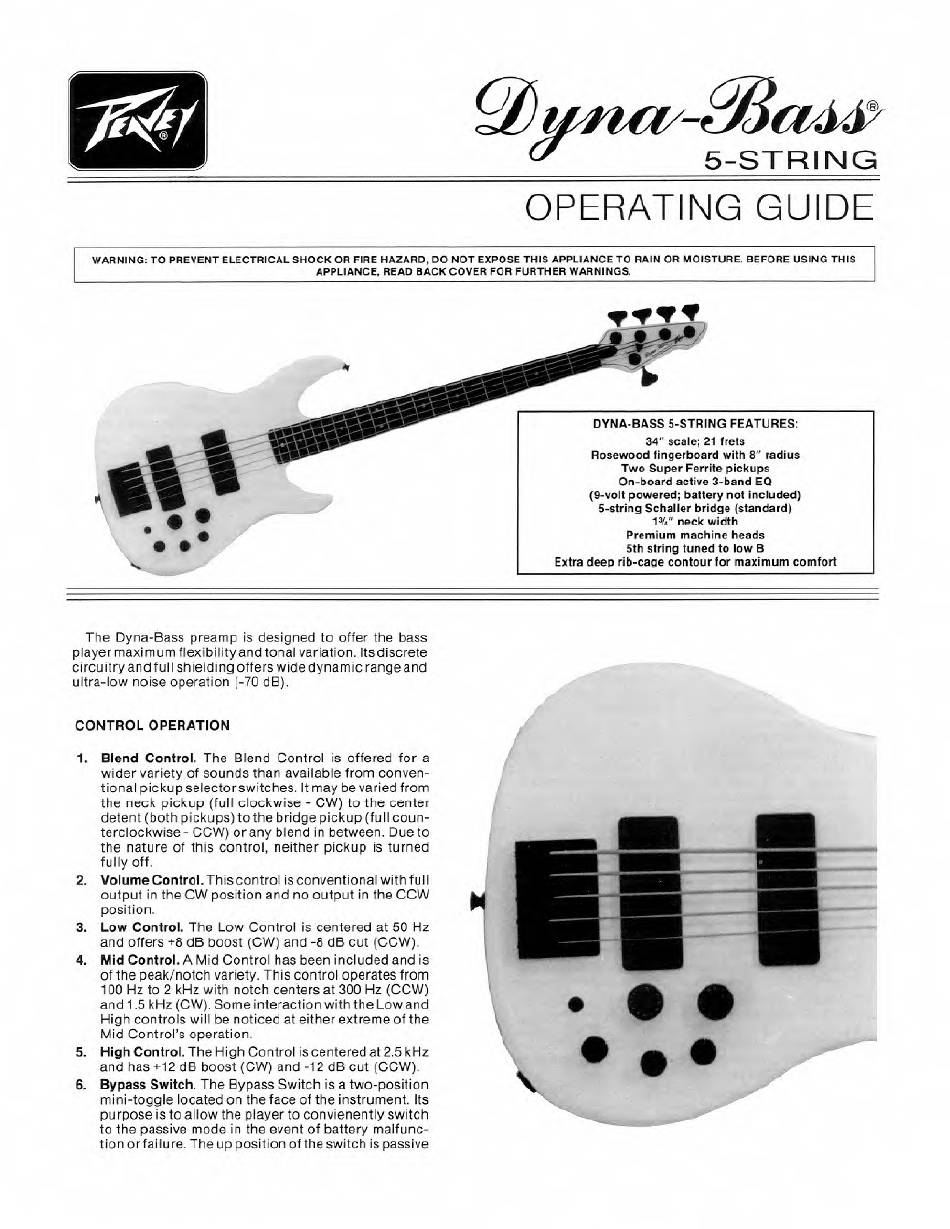

SD'u4ta/SBaA&
&
5-STRING
OPERATING GUIDE
WARNING: TO PREVENT ELECTRICAL SHOCK OR FIRE HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. BEFORE USING THIS
APPLIANCE, READ BACK COVER FOR FURTHER WARNINGS.

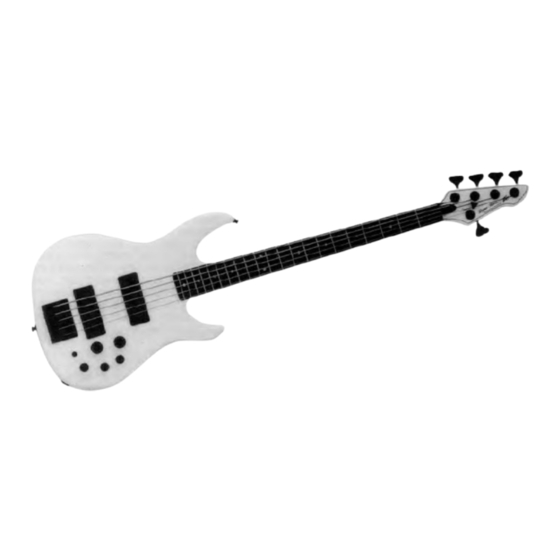

DYNA BASS 5-STRING FEATURES:
34' scale; 21 frels
Rosewood fingerboard with 8 ' radius
Two Super Ferrite pickups
On-board active 3-band EQ
(9-volt powered; battery not included)
5-string Schaller bridge (standard)
1%" neck width
Premium machine heads
5th string tuned to low B
Extra deep rib-cage contour for maximum comfort
The Dyna-Bass preamp is designed to offer the bass
player maximum flexibility and tonal variation. Itsdiscrete
circuitry and full shielding offers wide dynamic range and
ultra-low noise operation (-70 dB).
CONTROL OPERATION
1.
Blend Control. The Blend Control is offered for a
wider variety of sounds than available from conven¬
tional pickup selector switches. It may be varied from
the neck pickup (full clockwise - CW) to the center
detent (both pickups) to the bridge pickup (full coun¬
terclockwise- CCW) orany blend in between. Due to
the nature of this control, neither pickup is turned
fully off.
2.
Volume Control. Thiscontrol is conventional withfull
output in the CW position and no output in the CCW
position.
3.
Low Control. The Low Control is centered at 50 Hz
and offers +8 dB boost (CW) and -8 dB cut (CCW).
4.
Mid Control. A Mid Control has been included and is
of the peak/notch variety. This control operates from
100 Hz to 2 kHz with notch centers at 300 Hz (CCW)
and 1.5 kHz (CW). Some interaction with the Low and
High controls will be noticed at either extreme of the
Mid Control's operation.
5.
High Control. The High Control iscentered at 2.5 kHz
and has +12 dB boost (CW) and -12 dB cut (CCW).
6.
Bypass Switch. The Bypass Switch is a two-position
mini-toggle located on the face of the instrument. Its
purpose is to allow the player to convienentiy switch
to the passive mode in the event of battery malfunc¬
tion or failure. The up position of the switch is passive
