RS26/RS30 Reel Stand
USER & SAFETY MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TESMEC RS26 and is the answer not in the manual?

Questions and answers

Related Manuals for Condux TESMEC RS26

Summary of Contents for Condux TESMEC RS26

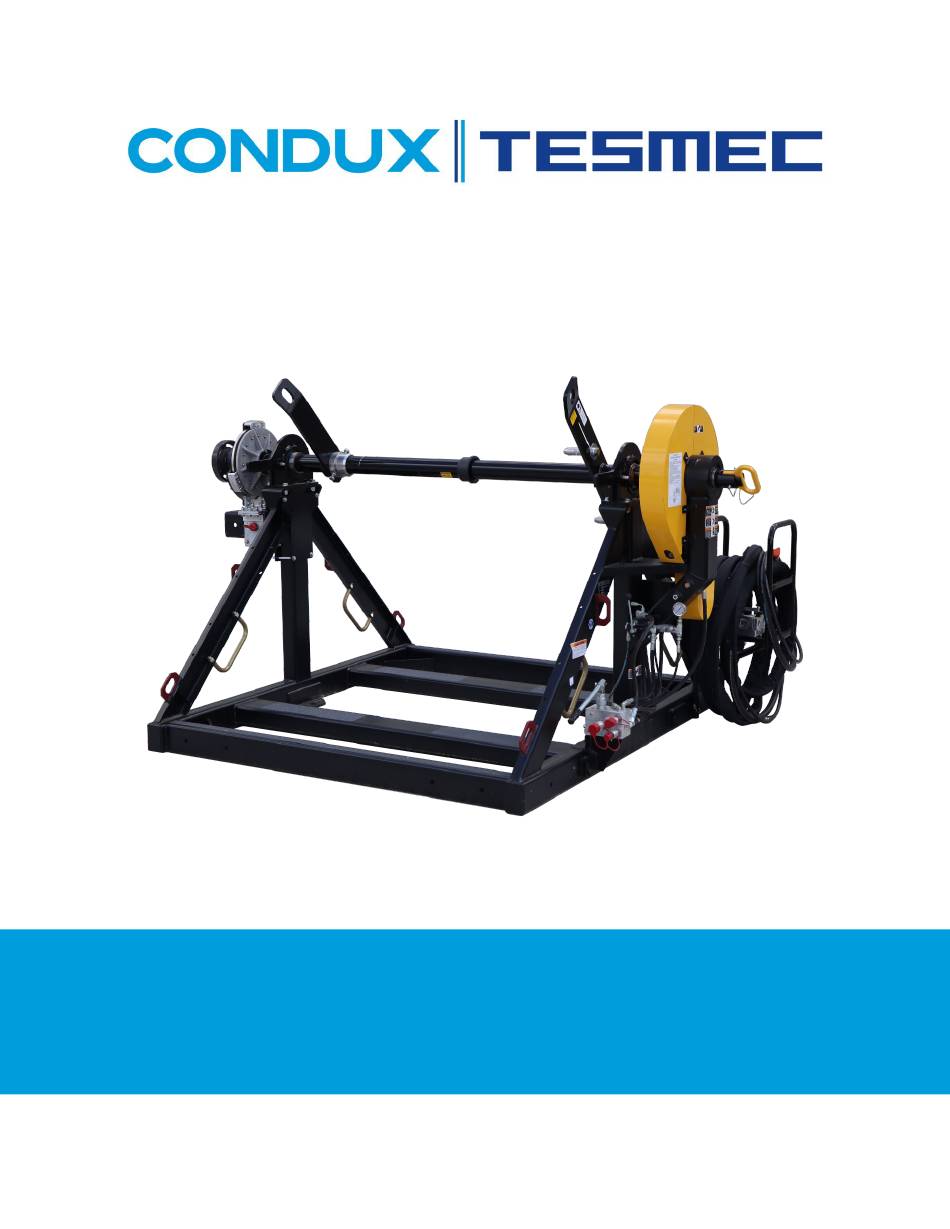

  • Page 1 RS26/RS30 Reel Stand USER & SAFETY MANUAL...
  • Page 2 RS26/RS30 Condux Tesmec PN: 21032799 R1.6...

  • Page 3: Table Of Contents

    RS26/RS30 Condux Tesmec ABLE OF ONTENTS General Information......................5 Safety Information......................5 Operator Information ....................5 General Maintenance Information................5 Machine Usage ......................6 Responsibility ......................6 User Manual ........................ 7 Technical Specifications ....................7 Arbor Bar Capacities ....................8 RS26 (3 inch) ......................
  • Page 4 RS26/RS30 Condux Tesmec Non-Drive End......................23 Bearing Installation for 3” Arbor Bar (for use with RS26 only) ........24 Drive End ....................... 24 Non-Drive End......................25 PN: 21032799 R1.6...

  • Page 5: General Information

    RS26/RS30 Condux Tesmec General Information The RS26 Reel Stand provides up to 26,000 lbs of load capacity and the RS30 Reel Stand provides up to 30,000 lbs of load capacity. Both come equipped with a hydraulic negative brake, reel arbor bar and hose storage. The RS26 and RS30 also have an optional manual reel brake.

  • Page 6: Machine Usage

    RS26/RS30 Condux Tesmec • Before carrying out any maintenance stop the machine (except for those instances indicated otherwise in this manual) and wait till the system components subject to heating have cooled sufficiently. • All the maintenance performed on this machine must be carried out on a level surface and while the system is not under load.

  • Page 7: User Manual

    • The instruction manual must be kept in a sheltered and dry place. Technical Specifications The Condux Tesmec RS26/RS30 Reel Stands were developed for paying in or out conductor reels when used in conjunction with Condux Tesmec Puller- tensioners and Tensioners. Industry-leading features like self-acting hydraulic brake and advanced hydraulic systems.

  • Page 8: Arbor Bar Capacities

    RS26/RS30 Condux Tesmec General Specifications RS26 RS30 Reel OD Capacity 102 inches 120 inches Reel Width Capacity 70 inches 85 inches Weight Capacity 26,000 lbs 30,000 lbs Total Weight (Skid Mounted) 2,600 lbs 3,500 lbs Arbor Bar Capacities RS26 (3 inch)

  • Page 9: Safety Information

    RS26/RS30 Condux Tesmec Safety Information Safety Devices The machine has been equipped with the following safety devices: • A mechanical negative safety brake that stops all movement if hydraulic pressure is lost. • Where possible, guards and covers are provided to protect personnel from the moving parts.

  • Page 10: Crushing Injury When Loading Or Unloading Rope Or Conductor Reels

    RS26/RS30 Condux Tesmec • Avoid any contact with the machine’s rotating components. • Follow the anchoring instructions described in this manual. • Follow all recommendations in this manual regarding the use of personal safety equipment. Crushing Injury When Loading or Unloading Rope or...

  • Page 11: Unpacking

    RS26/RS30 Condux Tesmec chocks. Attach the machine to the floor of a truck box or trailer using chains and hooks at the attachment points provided. Unpacking When receiving the machine, verify the condition of the package; immediately notify the transportation company and the manufacturer (use photos whenever possible) of any damage that may have occurred during shipment.
  • Page 12 RS26/RS30 Condux Tesmec 3. Properly ground the reel stand using the grounding connections provided (see below). 4. Connect the hydraulic hoses to the stringing machine as shown below. 5. Secure the area between the stringing equipment and this reel stand to limit personnel entry.

  • Page 13: Reel Installation

    RS26/RS30 Condux Tesmec Reel Installation 1. Ensure that the hydraulic supply from the stringing equipment is shut-off. PN: 21032799 R1.6...
  • Page 14 RS26/RS30 Condux Tesmec 2. Pull the selector valve handle outward (see below). 3. Close the valve (clockwise) on the pump (see below). PN: 21032799 R1.6...
  • Page 15 RS26/RS30 Condux Tesmec 4. Open the Ball Valve (in line with flow) as shown below. 5. Operate the pump handle until the pressure on the gauge reads approximately 450 PSI. NOTE: Use caution when the brake begins to release, as the arbor bar will begin to rotate.
  • Page 16 RS26/RS30 Condux Tesmec 6. Disengage drive side pin by removing keeper pin and pulling out the drive pin. (see below) 7. Remove bearing retainer pin and lift hinged keeper to fully open position on both ends of the arbor bar. (see below) 8.
  • Page 17 RS26/RS30 Condux Tesmec 9. Remove bearing, shaft collar, and lifting bracket as shown below. 10. Install Arbor Bar through the reel hole ensuring drive pins engage drive holes (see below). PN: 21032799 R1.6...
  • Page 18 RS26/RS30 Condux Tesmec 11. Replace lifting bracket, shaft collar, and bearing. 12. Once the arbor bar has been secured to the reel, lift the reel utilizing the lifting brackets and install onto reel stand. (see below) 13. Close bearing keepers and secure with retaining pins.

  • Page 19: Reel Stand Manual Brake Instruction

    RS26/RS30 Condux Tesmec Reel Stand Manual Brake Instruction 1. Keep arbor bar and reel in same position as when using hydraulic drive. 2. Pull out the drive pin on the hydraulic drive side and lock it in the disengaged position.
  • Page 20 RS26/RS30 Condux Tesmec 6. When not using the manual disc brake, disengage it from the arbor bar and pin it in the disengaged position using the pin through the hole in the saddle. (and reengage the hydraulic drive pin). PN: 21032799 R1.6...

  • Page 21: Instructions For Removal And Installation Of Arbor Bar Bearings On Rs26 And Rs30

    RS26/RS30 Condux Tesmec Instructions for Removal and Installation of Arbor Bar Bearings on RS26 and RS30 Bearing Removal on Drive End of Arbor Bar 1. Loosen setscrews. 2. For eccentric locking collar bearing only: Use a hammer or mallet with a punch in the blind hole on the locking collar to rotate the locking collar *opposite the direction of normal bar rotation*.
  • Page 22 RS26/RS30 Condux Tesmec 2. Position the bearing. a. For setscrew bearing: Outside end of the bearing should be approximately even with the end of the arbor bar bearing surface. b. For eccentric locking collar bearing: i. If bar bearing surface has thin groove: align end face of bearing with groove.

  • Page 23: Non-Drive End

    RS26/RS30 Condux Tesmec iii. Use a hammer or mallet with a punch in the blind hole on the locking collar to further rotate the locking collar *in the direction of bar rotation*. iv. Tighten locking collar setscrews onto arbor bar bearing surface.

  • Page 24: Bearing Installation For 3" Arbor Bar (For Use With Rs26 Only)

    RS26/RS30 Condux Tesmec Bearing Installation for 3" Arbor Bar (for use with RS26 only) Drive End 1. Install bearing sleeve (21034242) onto arbor bar using bolt and nut. 2. Slide bearing onto sleeve—setscrew/locking collar side first. 3. Position the bearing.

  • Page 25: Non-Drive End

    RS26/RS30 Condux Tesmec ii. Once fully seated against bearing, rotate locking collar by hand *in the direction of bar rotation* to start the cam action to bind the collar against the bar. iii. Use a hammer or mallet with a punch in the blind hole on the locking collar to further rotate the locking collar *in the direction of bar rotation*.
  • Page 26 Condux Tesmec, Inc. P.O. Box 668 • 145 Kingswood Drive Mankato, MN 56002-0668, USA Phone: 1(507) 387-8069 • 1(888) 980-1209 © Copyright 2023, Condux Tesmec, Inc. Fax: 1(507) 387-3855 Printed in USA www.conduxtesmec.com Literature Part Number: 21032799 email: info@conduxtesmec.com Revision Number: 1.6...
