Sprayers Plus 105Ex Installation Instructions Manual page 3

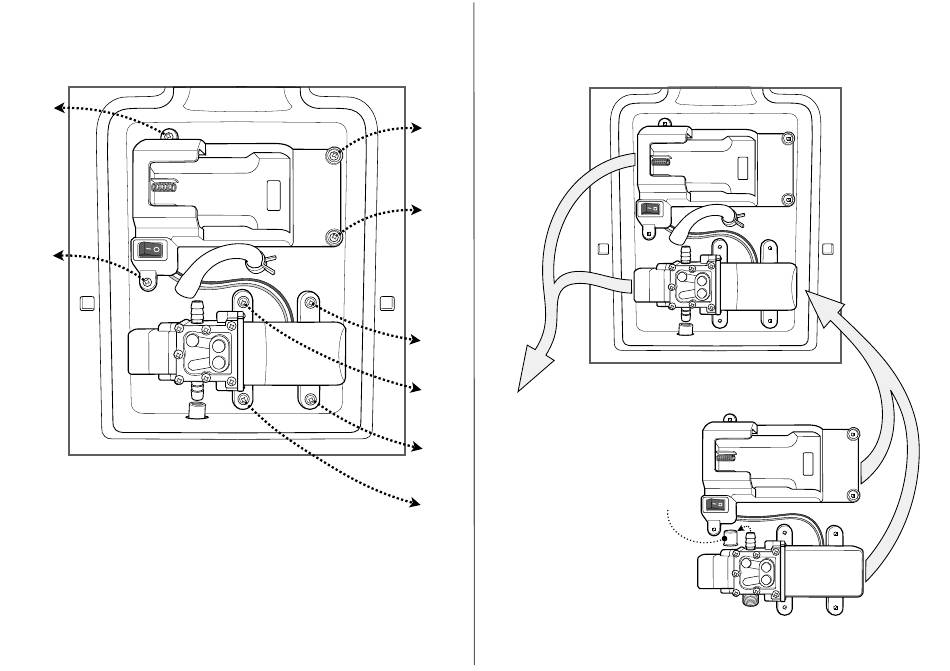

STEP-2: REMOVE DESIGNATED SCREWS
After the hoses are disconnected from the existing pump:
•
Undo and remove the 4 screws of the charging dock.
•
Undo and remove the 4 screws of the pump module.
STEP-3: SWAP PUMP ASSEMBLY
•
Remove the existing charging
dock and the pump module.
•
Place the new charging dock
and the new pump module into
the chamber.
Make sure the cap on the input
pipe (of the pump) is removed.
Note: it is easier to connect
the hoses before screwing the
pump module onto the sprayer.
Follow the instructions in the
next page.
