Summary of Contents for Sprayers Plus 105Ex
- Page 1 20V PUMP 8006 ( #K INSTALLATION INSTRUCTIONS web: www.sprayers-plus.com email: info@sprayers-plus.com...
- Page 2 Empty the tank, open the white plastic door at the back (of the The pump connects to the hose through a new method (with a 105Ex Sprayer), remove the black plastic cover to access the plastic nut and a plastic insert which are included in this package).

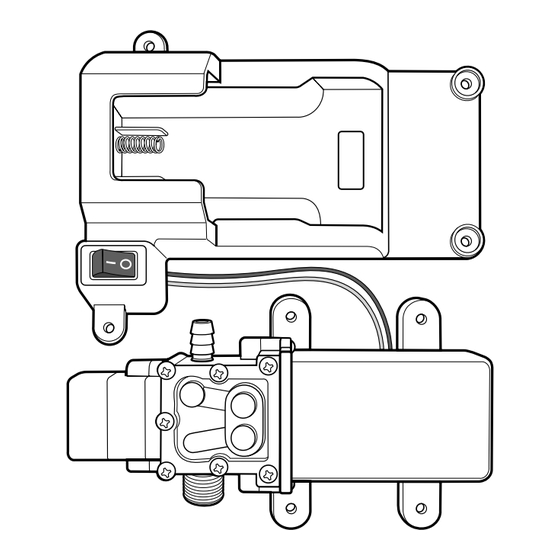

- Page 3 STEP-2: REMOVE DESIGNATED SCREWS STEP-3: SWAP PUMP ASSEMBLY • Remove the existing charging dock and the pump module. • Place the new charging dock and the new pump module into the chamber. Make sure the cap on the input pipe (of the pump) is removed. After the hoses are disconnected from the existing pump: •...
- Page 4 STEP-4: CONNECT OUTPUT HOSE Connecting the Output Hose to the Pump 1) Slide the plastic nut through the hose. 2) Push the plastic insert into the hose. Input Hose Output Hose 4) Insert the hose into 3) The plastic insert 5) Slide the plastic nut the output pipe of the need to be pushed in...
- Page 5 STEP-5: CONNECT INPUT HOSE STEP-6: FASTEN PUMP ASSEMBLY Connect the Input Hose to the input pipe of the new Pump Module and secure it using the hose clamp from the previous pump. NOTE: After the hoses are connected from the new pump: Before having everything screwed onto the chamber, you •...
-
Page 6: Warranty Information
Warranty Registration Please visit: www.sprayers-plus.com/warranty Sprayers Plus shall honor this warranty, free of charge, if any part or component shows defect in MATERIAL OR WORKMANSHIP, after final analysis at the factory. This Warranty shall be null This Warranty shall exclude and void in case of: •...
