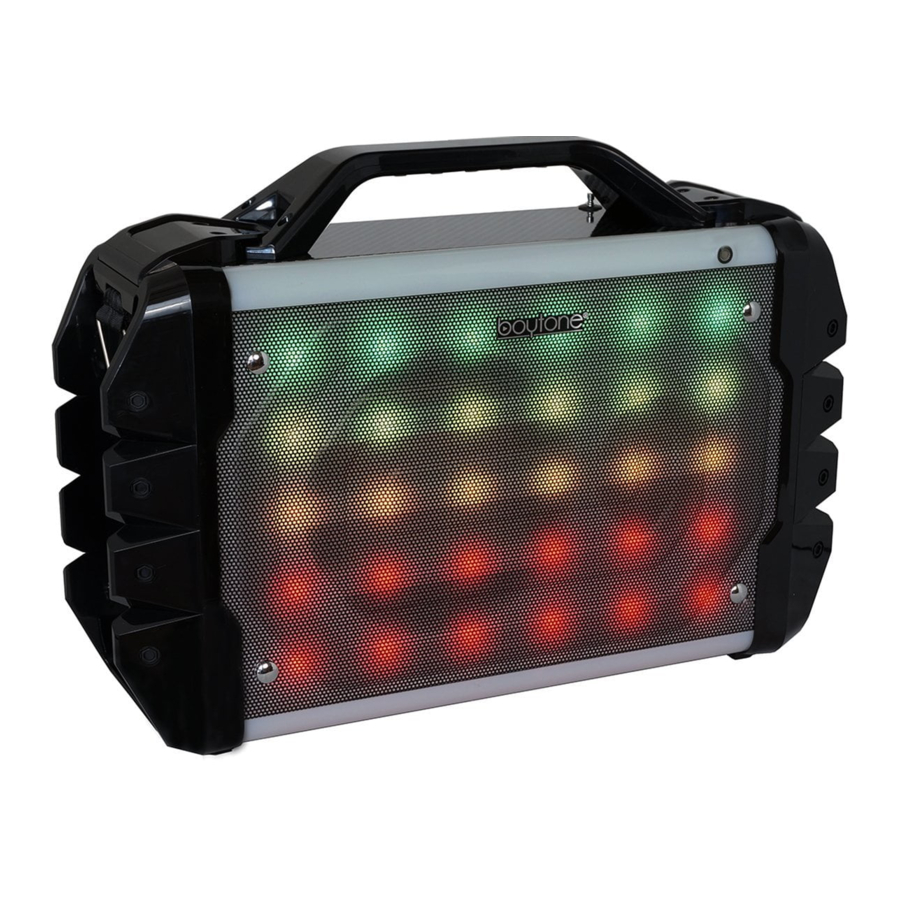

boytone BT-52M - Speaker Manual

Table of Contents

Contents

1 Introduction
2 Product features
3 Instructions
4 Functional operation instructions
- 4.1 Panel description
- 4.2 The Remote Instructions
5 Technical parameters
6 Package Contents
7 Documents / Resources
- 7.1 Download manual

Introduction

Thank you for choosing our company's professional active audio products, the speaker is specifically design and produce for exercise, fitness, dance, opera, music, shopping guide, which are widely used in schools, shopping malls, indoor and outdoor activities. The sound is clear and in good quality, the entire outward appearance, designs succinctly naturally. It has many advantages such as long working time, stable performance, and convenient operation and so on, which is a good partner of your work and life.

burn hazard Inflammable and explosive area:
In flammable and explosive areas, do not use the speaker, and comply with the relevant warning instructions, so as not to cause explosion or fire.

Inflammable and explosive areas include:
Gas station
The fuel area (such as: the deck of the ship under the cabin).
Transportation and storage facilities for flammable or chemical products.
Area with explosion danger signs.
Area with "turning off the two-way wireless device" sign.

Product features

Use imported high-power amplifier chip and advanced circuit design technology.
Use strong magnetic high performance frequency horn, sound loud and clear, covering a wide range of transmission.
External audio sound excellent, strong sense of sound level.

Instructions

Play music u disk, TF card, regulating host the volume knob on the volume is adjusted to a proper sound effect, pay attention to avoid the maximum in volume for a long time, so that people feel upset and acceleration components of aging.
Don't put the speaker in a damp, high temperature, oil and other harsh environments, avoid direct exposure of sunlight and rain.
Don't put the speaker close to the bare fire, to avoid dangerous.
Don't put the volume of liquid in the speaker.
Equipment suitable for use in non-tropical climate conditions.
Equipment suitable for the use of 2000 meters above sea level and the following areas.

Functional operation instructions

Panel description

Digital display window
Echo volume knob
Power switch.
Charge LED: when charging, the light is red
DC input: take connection DC 9V 1A
Microphone input port
Line in input port
Microphone Volume Knob
Treble Volume
USB interface: insert USB.
TF card interface: insert TF card
Volume knob
Pre/Next: When you play the USB and TF card, short press to choose Pre/Next music, long press to manual operation forwarder sequence adjustment, when AUX input without function.
Play/Pause: when play USB and TF card, short press to play/pause the FM, short press is mute, long press is automatically search channel and store, when at AUX state is mute.
Mic first button.
Record/Play: Short press to enter record state, resort press play recording, long press this button you will delete the recording.
Mode: AUX input, BT, USB,TF card, FM,changing-over.
LED switch: short press it shows 0, long press shows different style of LED
Number button: choose the music quickly.

The Remote Instructions

Stand-By
Stop
Mute
Mode shift
Recycle
EQ: select EQ modes to Normal/Bass/Pop/Jazz Etc.
Previous Song/Radio Channel
Next Song /Radio Channel
Pause/Play
Volume Decrease
Volume Decrease
Number Keys 0-9: press the number combination to quick select the song number or radio channel number to play.
Karaoke priority: Press this button, the Mic LED will be light, it marked enterimnto Micpriority closed.
Record/Playback: Press this button to enter the record state, press again to play the recording.
AUX line Mode.
FM Mode
USB/TF shift
Bluetooth Mode
FM trimming decrease
FM trimming increase
