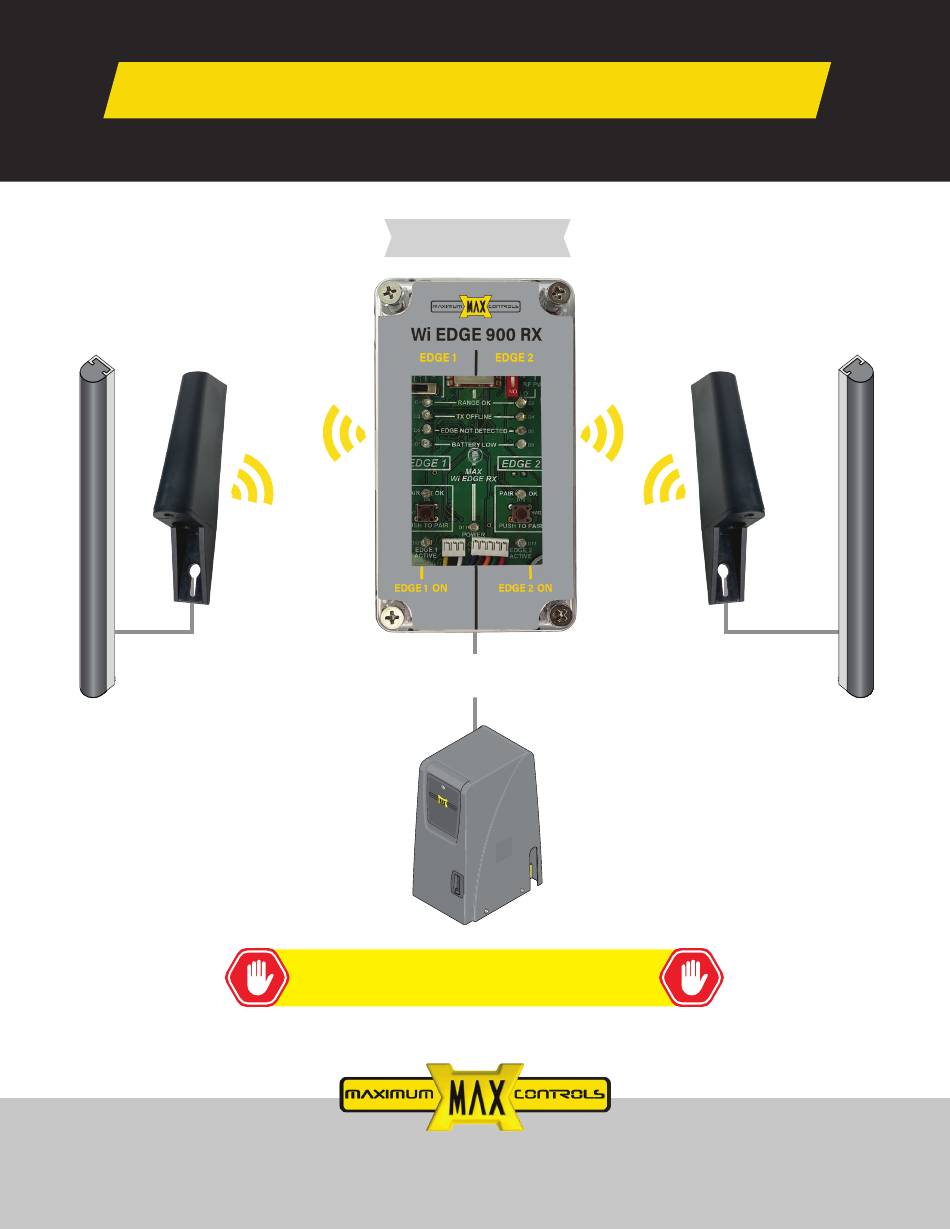

MAX WIRELESS EDGE 900
RESIDENTIAL / COMMERCIAL / INDUSTRIAL APPLICATION
Max Wi Tx
Edge 1
Max-WETX
10K Opening
Edge
(Sold Separately)
10530 Lawson River Ave. Fountain Valley CA 92708 • www.MAX.US.com
QUICK INSTALLATION GUIDE
200 FT RANGE

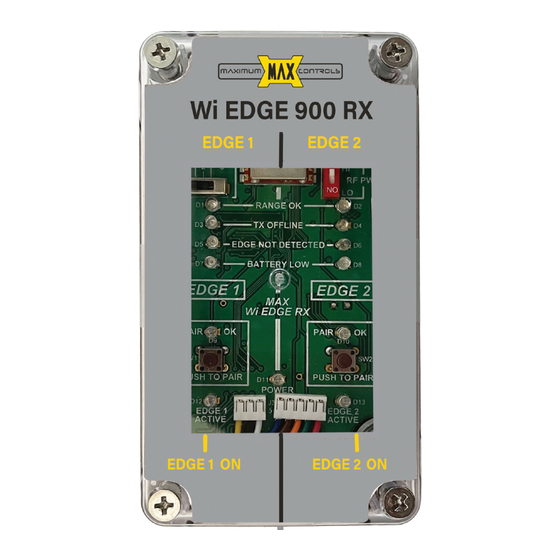

Max Wi Edge Receiver
Max-WERX
MAX Wi Edge Kit
Works exclusively with Max Gate Operators
ONLINE
Maximum Controls LLC • 949.699.0220
COMM
LINK
CELL
LINK
POWER
Max Wi Tx
Edge 2
Max-WETX
10K Closing
Edge
(Sold Separately)
Advertisement
Related Manuals for Maximum Controls MAX WIRELESS EDGE 900
Summary of Contents for Maximum Controls MAX WIRELESS EDGE 900
- Page 1 QUICK INSTALLATION GUIDE MAX WIRELESS EDGE 900 RESIDENTIAL / COMMERCIAL / INDUSTRIAL APPLICATION 200 FT RANGE Max Wi Tx Max Wi Tx Max Wi Edge Receiver Edge 1 Edge 2 Max-WERX Max-WETX Max-WETX 10K Opening 10K Closing Edge Edge (Sold Separately)
- Page 2 2.25” d x 1”w x 7.125” h 1.625” d x 2.5”w x 4.5” h Weight 0.3 lbs 0.8 lbs Battery life Approximately 2 years * Only use the specified battery type listed above. (ENERGIZER L91 Ultimate Lithium) MAX WIRELESS EDGE 900...
- Page 3 PAIR OK LED (EDGE 1) PAIR BUTTON WITH TX EDGE 2 PAIR BUTTON WITH TX EDGE 1 LED ON WHEN TX EDGE 1 LED ON WHEN TX EDGE 2 IS TRIGGERED IS TRIGGERED POWER LED MAX WI EDGE RECEIVER MAX WIRELESS EDGE 900...
- Page 4 Wi Edge Receiver can be installed facing bracket right or left direction depending on gate (provided) configuration Align the hole of Wi Edge Receiver bracket with the hole of the slider back bracket and secure it using screw provided MAX WIRELESS EDGE 900...
- Page 5 Install Wi Tx Edge on gate so it is in line-of-site with Wi Edge Rx NOTE Latest Matrix 3 boards are compatible with Max Wireless Edge 900; prior boards without the yellow sticker require factory programming. MAX WIRELESS EDGE 900...
- Page 6 Check if the RF Channels of Wi Edge Rx matches RF pairing has failed. channels of Wi Edge Tx (see page 7). Ensure Wi Tx Edge 1 is within range of Wi Receiver. For additional info check troubleshooting page. MAX WIRELESS EDGE 900...
- Page 7 Check if the RF Channels of Wi Edge Rx matches RF pairing has failed. channels of Wi Edge Tx (see page 7). Ensure Wi Tx Edge 2 is within range of Wi Receiver. For additional info check troubleshooting page. MAX WIRELESS EDGE 900...
- Page 8 Wi Edge Rx & Tx 1 and 2 Wi Edge Rx & Tx 1 and 2 on RF CHANNEL 1 on RF CHANNEL 2 refer to next page for instruction refer to next page for instruction MAX WIRELESS EDGE 900...
-
Page 9: Rf Channel Selection
920 MHz 925 MHz 915 MHz JUMPER 3 - 4 JUMPER 2- 3 Power Cycle both Wi Edge Tx 1 & 2 by removing and reinstalling batteries Pair Wi Edge Rx with Tx 1 & 2 MAX WIRELESS EDGE 900... - Page 10 Check if the RF Channels of Wi Edge Rx matches RF channels of Wi Edge Tx (Refer to RF Channels Selection page). For additional info check troubleshooting page. Repeat steps 5 and 6 to PAIR Wi Tx Edge 1 to Wi Edge Rx MAX WIRELESS EDGE 900...
-
Page 11: Optional Feature
12VDC OUTPUT 12VDC OUT SELECT RF POWER OUTPUT (HI / LO) 1 2 3 4 ON WI TX EDGE 1 OR 2 RF PWR NO JUMPER Pwr LO (Min) Pwr HI (Max) JUMPER 3 - 4 MAX WIRELESS EDGE 900... -
Page 12: Troubleshooting
1 (or 2) Low battery condition “BATTERY LOW” detected on Wi Tx Edge 1 (or LED is ON Replace batteries on Wi Tx Edge 1 (or 2) 2) (Battery Voltage less than for Edge 1 (or 2) 2.7V) MAX WIRELESS EDGE 900... - Page 13 Tx Edge 1 or 2 (see p 7) LED is OFF LED Blinking indicate pairing intermittently for 2) Lower RF power on Wi Edge Rx and Tx Edge 1 mode Edge 1 (or 2) or 2 (see p 8) MAX WIRELESS EDGE 900...
- Page 14 NOTES MAX WIRELESS EDGE 900...
- Page 15 QUICK INSTALLATION GUIDE MAX WIRELESS EDGE 900 RESIDENTIAL / COMMERCIAL / INDUSTRIAL APPLICATION Max Wi Tx Max Wi Tx Max Wi Edge Receiver Edge 1 Edge 2 Max-WERX Max-WETX Max-WETX 10K Opening 10K Closing Edge Edge (Sold Separately) (Sold Separately)
