OPERATING INSTRUCTIONS

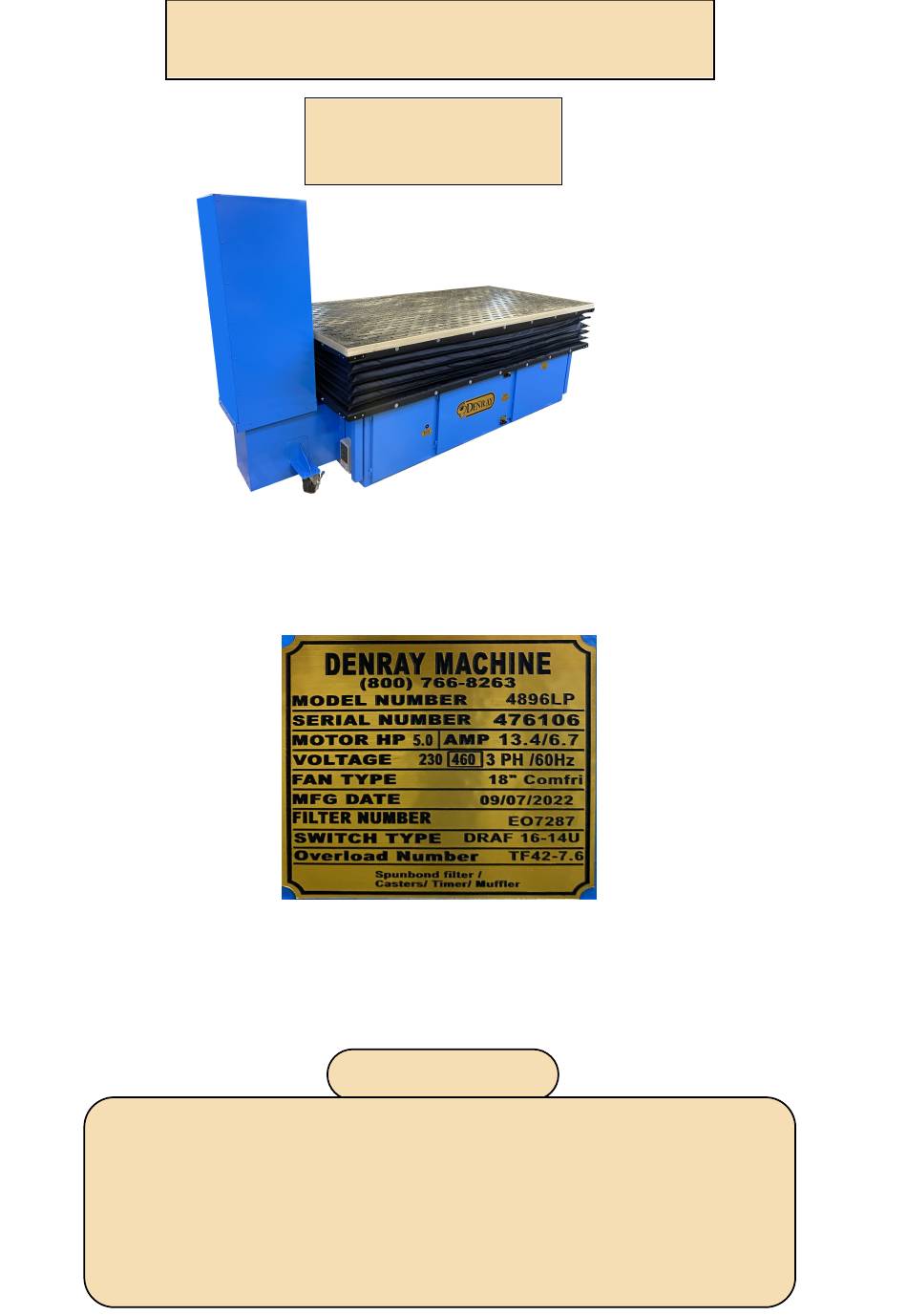

To find YOUR tables pertinent information please locate the table sticker on your table.
* * Please note the image above is a "generic" table sticker for visual purposes only! The table sticker
on your machine reflects how it left the manufacturer and does not reflect any after-market changes
made by previous owners. If you have questions please call Denray Machine at (800) 766-8263.
Denray's machines are covered with a 12-month warranty. The warranty covers replacement parts,
except for the filters and wooden tabletop (if applicable). The only way Denray will cover the labor is the
work must be done by Denray at Denray's facility. The shipping must be provided by the customer (owner
of the machine) both ways. You may contact the dealer you purchased the machine from and discuss
with them the possibility of their assistance in helping to solve the problem in your facility. Denray
assumes or accepts no responsibility more than the cost of the machine. In the case of repair, Denray will
determine either to fix or replace the product. Denray reserves the right to modify or change the design of
this and any model of their machine, without changing or updating any previous manufactured machine.
The warranty will not cover any damage done by fire or any other act of nature or if abuse or improper
maintenance was or was not performed.
4896LP
WARRANTY
Advertisement
Table of Contents
Related Manuals for Denray 4896LP
Summary of Contents for Denray 4896LP
- Page 1 Denray’s machines are covered with a 12-month warranty. The warranty covers replacement parts, except for the filters and wooden tabletop (if applicable). The only way Denray will cover the labor is the work must be done by Denray at Denray’s facility. The shipping must be provided by the customer (owner of the machine) both ways.
- Page 2 Never Allow Any Unauthorized or Untrained Person To Operate This Machine Lockout and tagout any time maintenance is performed on this machine WARNING NEVER GRIND OR SAND ANY ALUMINUM OR MAGNESIUM, OR ANY SPARK CREATING PRODUCT ON THIS MACHINE Filters are the main need of maintenance, the cleaner the filters are kept the better the machine will perform.
- Page 3 Air Tank View (Generic) Incoming airline 90-120 psi Drain Moisture from tank Label text Air Tank daily, and provide clean dry air from factory compressed air 150 PSI Pressure relief valve, 1/4" NPT Male, if you have air leaking from the tank area, this is the 1st place to check.
- Page 4 115/220 Volt 1 phase incoming power from junction box MOTOR MAG. STARTER Start Button Overload dial just above motor amps Stop button 9 6 9 5 9 8 9 7 set on Auto MOTOR Wires Through Hole into next Box Out Going Power Box on outside of To Magnetic Starter...
-
Page 5: Timer Settings
115 Volt 1 Timer incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR... - Page 6 115 Volt 2 Timers incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
- Page 7 230 Volt 3 phase incoming power from junction box MOTOR MAG. STARTER Start Button Overload dial just above motor amps Stop button 9 8 9 7 9 6 9 5 set on Auto MOTOR Wires Through Hole into next Box Out Going Power To Box on outside of Magnetic Starter...
-
Page 8: Push Button
230 Small incoming power from junction box Timer Kit power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR... -
Page 9: Push Buttons
230 Large incoming power from junction box Timer Kit power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR... - Page 10 460 Volt 3 phase incoming power from junction box MOTOR MAG. STARTER Start Button Overload dial just above motor amps Stop button 9 6 9 5 9 8 9 7 set on Auto MOTOR Wires Through Hole into next Box Out Going Power To Box on outside of Magnetic Starter...
- Page 11 460 Small incoming power from junction box Timer Kit power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
- Page 12 460 Large incoming power from junction box Timer Kit power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
- Page 13 CHECK FAN ROTATION When the fan is going the wrong direction you can loose up to 50% of the suction.
- Page 14 IF FAN IS ROTATING BACKWARDS WARNING DISCONNECT ALL POWER BEFORE SERVICING TO CHECK THE MOTOR ROTATION. OPEN MOTOR DOOR AND SEE IF THE FAN IS ROTATING THE SAME DIRECTION AS THE ARROW ON THE BACK OF THE MOTOR. IF IT IS GOING THE OPPOSITE DIRECTION OF THE ARROW SWITCH L1 AND L2 ON THE TERMINAL BLOCK black black...
- Page 15 Set a small timer kit to these settings TIMER SETTINGS TIMER SETTINGS T1 TIMER ON T1 TIMER ON Set to 10 SEC Set to 10 SEC Time the pulse Time the pulse is on We use 2 seconds is on We use 2 seconds Set to 20% Set to 20% T2 TIMER OFF...
-
Page 16: Lifting System
Lifting system The lifting system Instruction Manual information can be found on the following page. If there is any trouble with the unit, they can give you the best technical support. We use their product because of the quality of the product and good support after the sale. The lifting system is a closed sealed unit, the hoses must never be removed for any reason unless the unit is replaced. -
Page 18: Troubleshooting
That activates the starter. Make sure every wire is secured on starter if Motor runs when center still no results call Denray for further assistance post is held in, but not by the switches If center post is held in... - Page 19 TROUBLE SHOOTING All the below solutions are meant to be done only by a qualified technician Machines with timers Check fuses:: Check wiring between mag starter and timer. Any loose connection, Timer not working secure the connection Green light on timer See above does not work Bad timer needs replacement...
- Page 20 TROUBLE SHOOTING All the below solutions are meant to be done only by a qualified technician Fan rotation backwards, on three phase,switch Fan making a loud roar wires on L1 and L2 Fan running backwards will produce 2/3rds less Lack of proper suction suction check fan rotation Verify Correct Fan Direction on your Machine All fans are factory balanced from fan company,...
