OPERATING INSTRUCTIONS

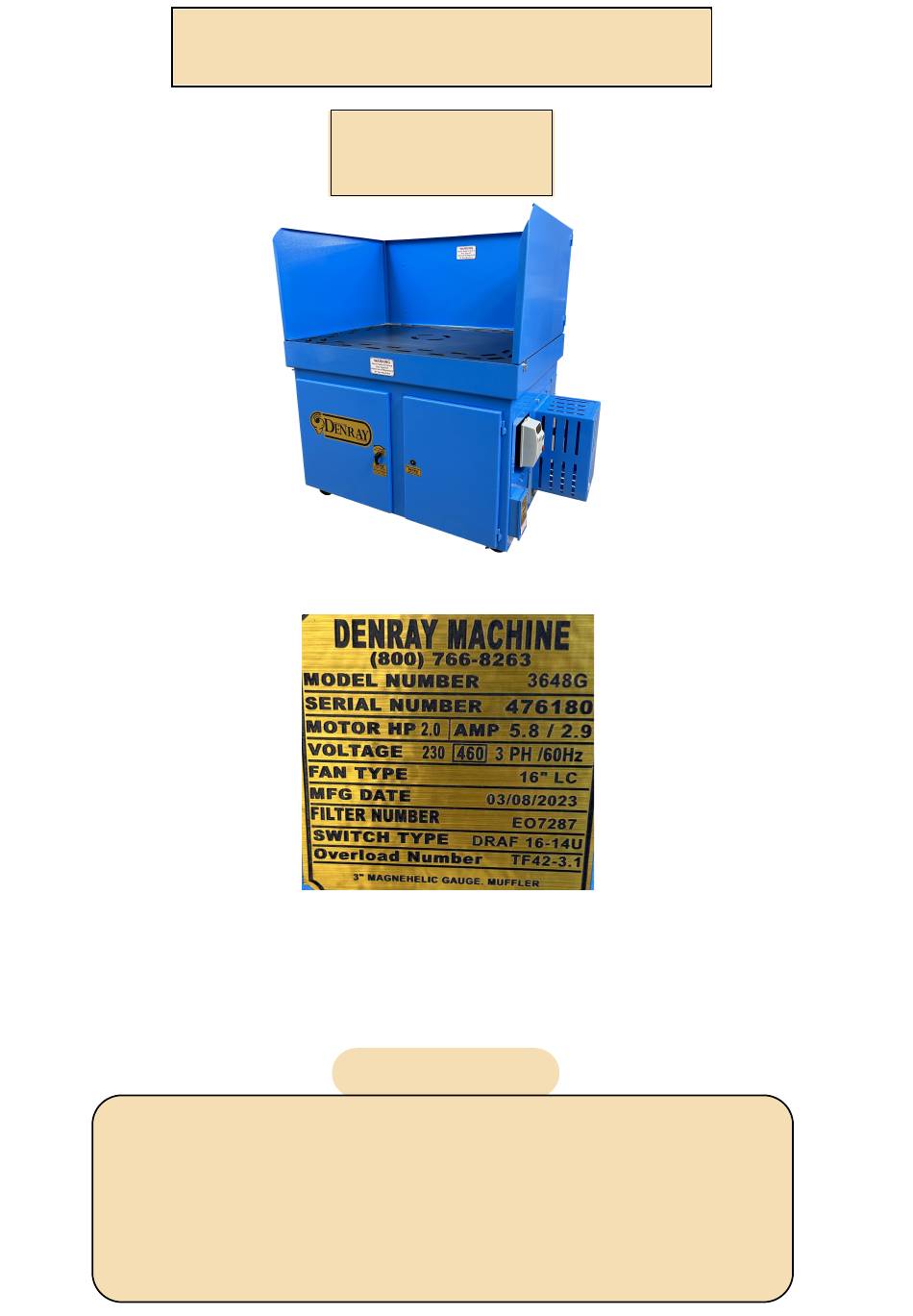

To find YOUR tables pertinent information please locate the table sticker on your table.
* * Please note the image above is a "generic" table sticker for visual purposes only! The table sticker
on your machine reflects how it left the manufacturer and does not reflect any after-market changes
made by previous owners. If you have questions please call Denray Machine at (800) 766-8263.
This Machine is covered with a 12 month warranty. The warranty covers replacement parts, except filters
and wooden top (if applicable). The only way Denray will cover the labor is the work must be done by
Denray at Denray's Facility. The shipping must be provided by the customer (owner of the machine) both
ways. You may contact the dealer you purchased the machine from, and discuss with them, the
possibility of their assistance in helping to solve the problem in your facility. Denray assumes or accepts
no responsibility more than the cost of the machine. In the case of repair Denray will determine either to
fix or replace the product. Denray reserves the right to modify or change the design of this and any model
of their machines, without changing or updating any previous manufactured machine.
The warranty will not cover any damage done by fire or any other act of nature or if abuse or improper
maintenance was or was not performed.
3648G
WARRANTY

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3648G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Denray 3648G

  • Page 1 This Machine is covered with a 12 month warranty. The warranty covers replacement parts, except filters and wooden top (if applicable). The only way Denray will cover the labor is the work must be done by Denray at Denray's Facility. The shipping must be provided by the customer (owner of the machine) both ways.
  • Page 2 Never Allow Any Unauthorized or Untrained Person To Operate This Machine Lockout and tagout any time maintenance is performed on this machine WARNING NEVER GRIND OR SAND ANY ALUMINUM OR MAGNESIUM, OR ANY SPARK CREATING PRODUCT ON THIS MACHINE Filters are the main need of maintenance, the cleaner the filters are kept the better the machine will perform.
  • Page 3 Air Tank View (Generic) Incoming airline 90-120 psi Drain Moisture from tank Label text Air Tank daily, and provide clean dry air from factory compressed air 150 PSI Pressure relief valve, 1/4" NPT Male, if you have air leaking from the tank area, this is the 1st place to check.
  • Page 4: Incoming Power

    115/220 Volt 1 phase Push Button clean only incoming power from junction box The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 5: Timer Settings

    115/220 Volt 1 Timer incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 6: Push Buttons

    115/220 Volt 2 Timers incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 7 230 Volt 3 phase push Button clean only incoming power from junction box The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 8 230 Volt 3 phase 1 Timer incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 9 230 Volt 3 phase 2 Timers incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 10 460 Volt 3 phase push Button clean only incoming power from junction box The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 11 460 Volt 3 phase 1 Timer incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 12 460 Volt 3 phase 2 Timers incoming power from junction box power wire to Transformer The clear Hose only carry about 5 PSI The push button drains the air from the hose causing the valve to pulse thus cleaning the filters. No Electrical power needed or incoming air needed, air comes from the air tank MOTOR...
  • Page 13: Troubleshooting

    That activates the starter. Make sure every wire is secured on starter if Motor runs when center still no results call Denray for further assistance post is held in, but not by the switches If center post is held in...
  • Page 14 TROUBLE SHOOTING All the below solutions are meant to be done only by a qualified technician Machines with timers Check fuses:: Check wiring between mag starter and timer. Any loose connection, Timer not working secure the connection Green light on timer See above does not work Bad timer needs replacement...
  • Page 15 TROUBLE SHOOTING All the below solutions are meant to be done only by a qualified technician Fan rotation backwards, on three phase,switch Fan making a loud roar wires on L1 and L2 Fan running backwards will produce 2/3rds less Lack of proper suction suction check fan rotation Verify Correct Fan Direction on your Machine All fans are factory balanced from fan company,...
