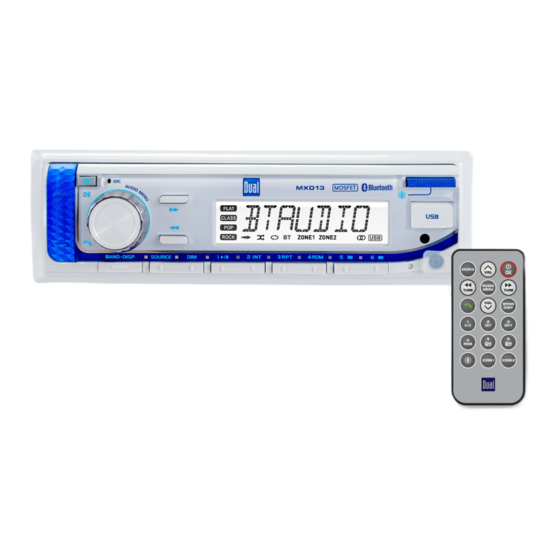

- Page 10 MXD13 INSTALLATION/OWNER'S MANUAL Marine AM/FM Receiver with Bluetooth...
-
Page 11: Installation
INSTALLATION MXD13 Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. Getting Started •Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. -
Page 12: Wiring Diagram
INSTALLATION MXD13 Wiring Diagram 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp AGC fuse located beside the Heat Sink... -
Page 13: Operation
OPERATION MXD13 Control Locations Power Auxiliary Input Preset 1 / Play/Pause Microphone Reset Dimmer Preset 6 / Folder Up Volume / Audio Source Preset 5 / Folder Down Tune / Track Up Band/Display Tune / Track Down Preset 4 / Random Bluetooth Talk Voice Assist Preset 3 / Repeat... -
Page 14: General Operation
OPERATION MXD13 General Operation Power On/Off Press the button to turn the unit on. Press again to turn the unit off. Press SOURCE to select between Radio, USB, Auxiliary Changing Modes Input and Bluetooth. Sources of operation are shown in the display. -
Page 15: Am/Fm Tuner Operation
OPERATION MXD13 AM/FM Tuner Operation Seek Tuning Press and hold TUNE or TUNE for two seconds to auto seek to the previous or next strong station. Press TUNE or TUNE momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold TUNE or TUNE for three seconds... -
Page 16: Usb Operation
OPERATION MXD13 USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. -
Page 17: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “Dual Media Player”. The Bluetooth passcode is "1234”. Note: If passcode "1234" does not pair your device to the receiver, use passcode "0000". -
Page 18: Voice Activation
OPERATION MXD13 Voice Activation Your receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button! Bluetooth should be paired between your smartphone and the receiver. -
Page 19: Specifications
OPERATION MXD13 Specifications Tuning range: 87.5MHz-107.9MHz FM Tuner Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz Tuning range: 530kHz-1710kHz AM Tuner Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz Speaker output impedance: 4~8 ohms General Line output voltage: 1.2 Volts RMS Dimensions:... -
Page 20: Troubleshooting
OPERATION MXD13 Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Check connections at... -
Page 21: Limited Two-Year Warranty
Dual dealer and used in the U.S.A. • Call us toll-free at 1-866-382-5476 • E-mail us at cs@dualav.com... -
Page 22: Fcc Compliance
OPERATION MXD13 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 23 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2024 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA1223-V01...
