INSTRUCTION MANUAL

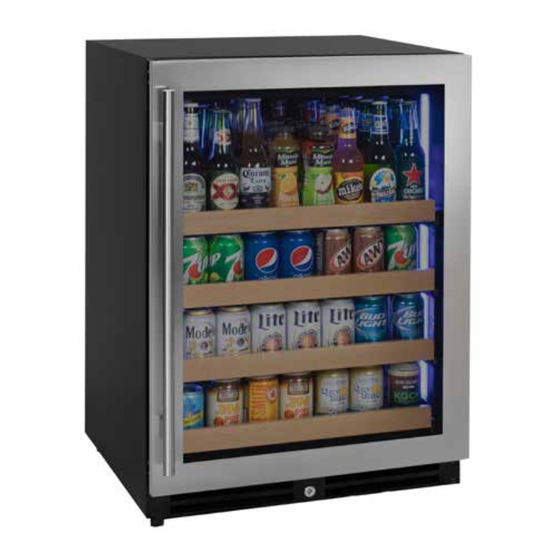

BUILT-IN BEVERAGE CENTER
MODEL: VSBC24L
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1.888.980.4809
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allavino VSBC24L
Summary of Contents for Allavino VSBC24L
- Page 1 BUILT-IN BEVERAGE CENTER MODEL: VSBC24L BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126 www.allavino.com...
-
Page 2: Table Of Contents
Safety Tips ..........................Installation Instructions ..........................Handle Installation ..........................Operation Instructions ..........................Setting Temperature ....................................................Light Settings Induction of opening the ..........................door Racking Configuration ..........................Care and Maintenance ..........................Troubleshooting ..........................Technical Specifications ..........................Warranty Information ..........................www.allavino.com 1.888.980.4809... -
Page 3: Diagram And Description
Diagram and Description 1. Control Panel 2. Sliding Shelves 3. Front Ventilation Base 4. Door Hinge 5. Adjustable Feet 6. Door Handle 7. Lock www.allavino.com 1.888.980.4809... -
Page 4: Safety Tips
However, if you must use an extension cord, it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes. www.allavino.com 1.888.980.4809... -
Page 5: Installation Instructions
• After plugging the appliance into a wall outlet, allow the unit to cool down for 3 to 4 hours before placing beverages in the appliance. www.allavino.com 1.888.980.4809... -
Page 6: Handle Installation
For example, placing your unit in extreme cold or hot conditions may cause the interior temperatures to fluctuate. Your Allavino Beverage Center includes an operating panel on the front of the unit. The operating panel includes several features to operate and control the temperature of the beverage center including: Power –... -
Page 7: Setting Temperature
Setting Temperature This Allavino Beverage Center has a temperature range of 32 to 64 degrees Fahrenheit. You can set the temperature as you desire by touching the + or - button. When you touch the buttons for the first time, the LED readout will show the original temperature set at the manufacturing facility. -
Page 8: Light Settings
Light Settings The Allavino beverage center has 9 different color options and 5 different brightness levels to choose from. Color Options: C1=Red, C2=Orange, C3=Yellow, C4=Green, C5=Cyan, C6=Blue, C7=Purple, C8=White, and C9=Rotate All Colors Light Brightness: b1=20%, b2=40%, b3=60%, b4=80%, and b5=100% Factory default setting: Color: C9=All color rotation;... -
Page 9: Care And Maintenance
The Allavino Beverage Center has 3 shelves that can hold up to 42 cans each and a bottom shelf that can hold up to 28 cans for a total storage capacity of 154 12 oz. cans. The top shelf can hold up to 56 standard beer bottles for a total capacity of 42 bottles and 112 cans. -
Page 10: Troubleshooting
Contraction and expansion of the inside walls may cause popping and crackling noises. The beverage center is not on a level surface. The door will not close properly The unit is not on a level surface. The gasket is dirty. The shelves are out of position. www.allavino.com 1.888.980.4809... -
Page 11: Technical Specifications
112 cans and 42 standard beer bottles Dimensions 33.9” H x 23.4” W x 23.6” D (25.6“ w/ handle) Weight 136.8 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 1.30A Operating Temperature 32°F - 64°F Ambient Temperature 32°F – 100°F www.allavino.com 1.888.980.4809... -
Page 12: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual.
