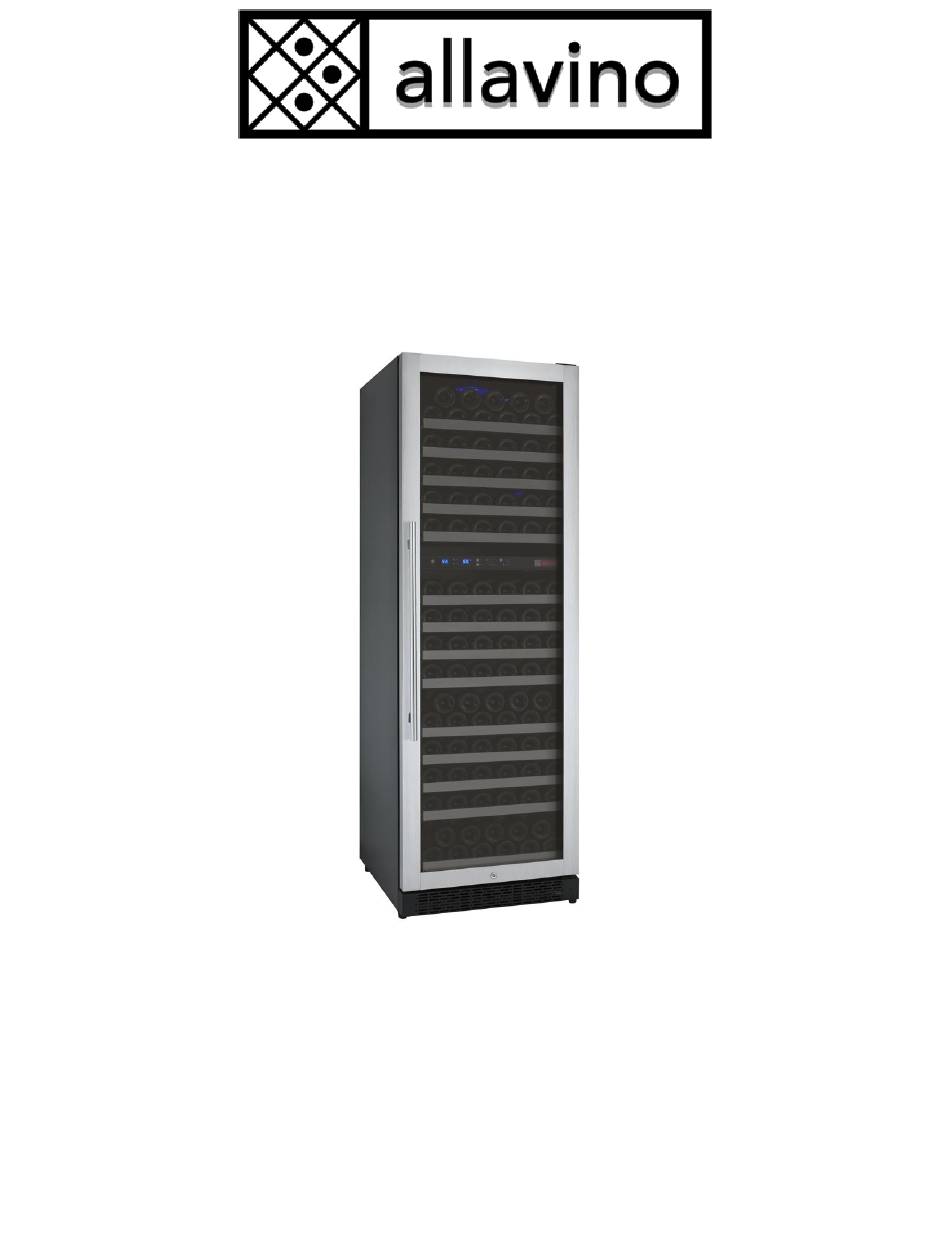

INSTRUCTION MANUAL

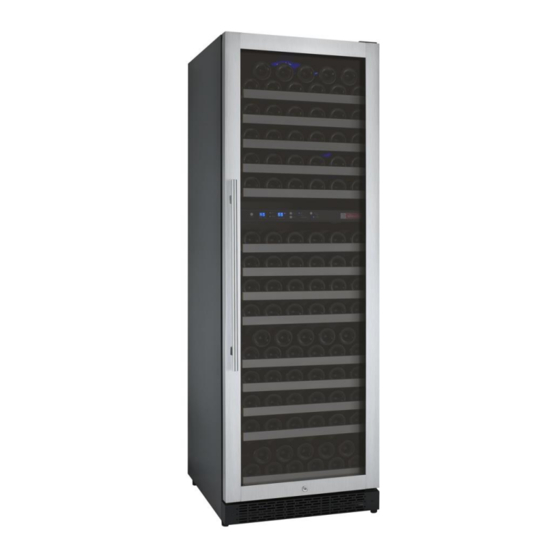

BUILT-IN WINE COOLER
MODEL：VSWR172-2
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1
1-888-980-4809
Advertisement
Table of Contents
Related Manuals for Allavino FlexCount Series
Summary of Contents for Allavino FlexCount Series
- Page 1 BUILT-IN WINE COOLER MODEL：VSWR172-2 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126 www.allavino.com...
-
Page 2: Table Of Contents
Safety Tips ..........................Installation Instructions ..........................Handle Installation ..........................Anchoring to the Wall ..........................Operation Instructions ..........................Setting Temperature ..........................Racking Configuration ..........................Care and Maintenance ..........................Troubleshooting …………………………………………………………………………………………………………………………… Technical Specifications ..........................10-12 Energy Guide ..........................Warranty Information ..........................www.allavino.com 1-888-980-4809... -
Page 3: Diagram And Description
Diagram and Description 1. Sliding Shelves 2. Control Panel 3. Front Ventilation Base 4. Door Hinge 5. Adjustable Feet 6. Door Handle 7. Security Lock www.allavino.com 1-888-980-4809... -
Page 4: Safety Tips
California Proposition 65 Warning: This product contains a chemical or chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Failure to heed these safety warnings may result in extensive product damage, serious personal injury, or death. www.allavino.com 1-888-980-4809... -
Page 5: Installation Instructions
Step 1: Remove the box containing the handle and screws from the wine cellar. Step 2: Pull out a bit of the rubber gasket from the back side of the holes. Step 3: Insert the screws through the holes and connect with the handle. www.allavino.com 1-888-980-4809... -
Page 6: Anchoring To The Wall
Tighten the straps until snug. Do not overtighten. CAUTION: This product is not intended to be a substitute for proper supervision. Manufacturer assumes no liability for improper installation or excessive loads placed on screws, brackets, or straps. Straps should be periodically adjusted, tested, and replaced. www.allavino.com 1-888-980-4809... -
Page 7: Operation Instructions
To prevent mold growth, leave the door open slightly, blocking it open if necessary. Setting Temperature This Allavino Wine Cellar has a wide enough temperature range to store both red and white wine, depending on your preference. Different varietals of wine require different temperature settings. Red wine is generally stored between 50 and 65 degrees Fahrenheit, while white wines are stored between 40 and 50 degrees Fahrenheit. -
Page 8: Racking Configuration
The Allavino Wine Cellar has 12 shelves that can hold up to 11 bottles each and 2 shelves that can hold up to 20 bottles each for a maximum bottle capacity of 172 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles. -
Page 9: Troubleshooting
The wine cellar is not on a level surface. The door will not close properly The wine cellar is not on a level surface. The gasket is dirty. The shelves are out of position. www.allavino.com 1-888-980-4809... -
Page 10: Technical Specifications
71-1/2" H x 23-1/2" W x 27" D (28-3/4" w/ handle) Weight 304.2 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 2.3 A Operating Temperature Upper Zone: 40°F - 55°F Lower Zone: 55°F - 65°F Maximum Ambient Temperature 90°F www.allavino.com 1-888-980-4809... - Page 11 1-888-980-4809...
- Page 12 1-888-980-4809...
-
Page 13: Energy Guide
1-888-980-4809... -
Page 14: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual.
