Summary of Contents for Asus Pro A620M-C-CSM

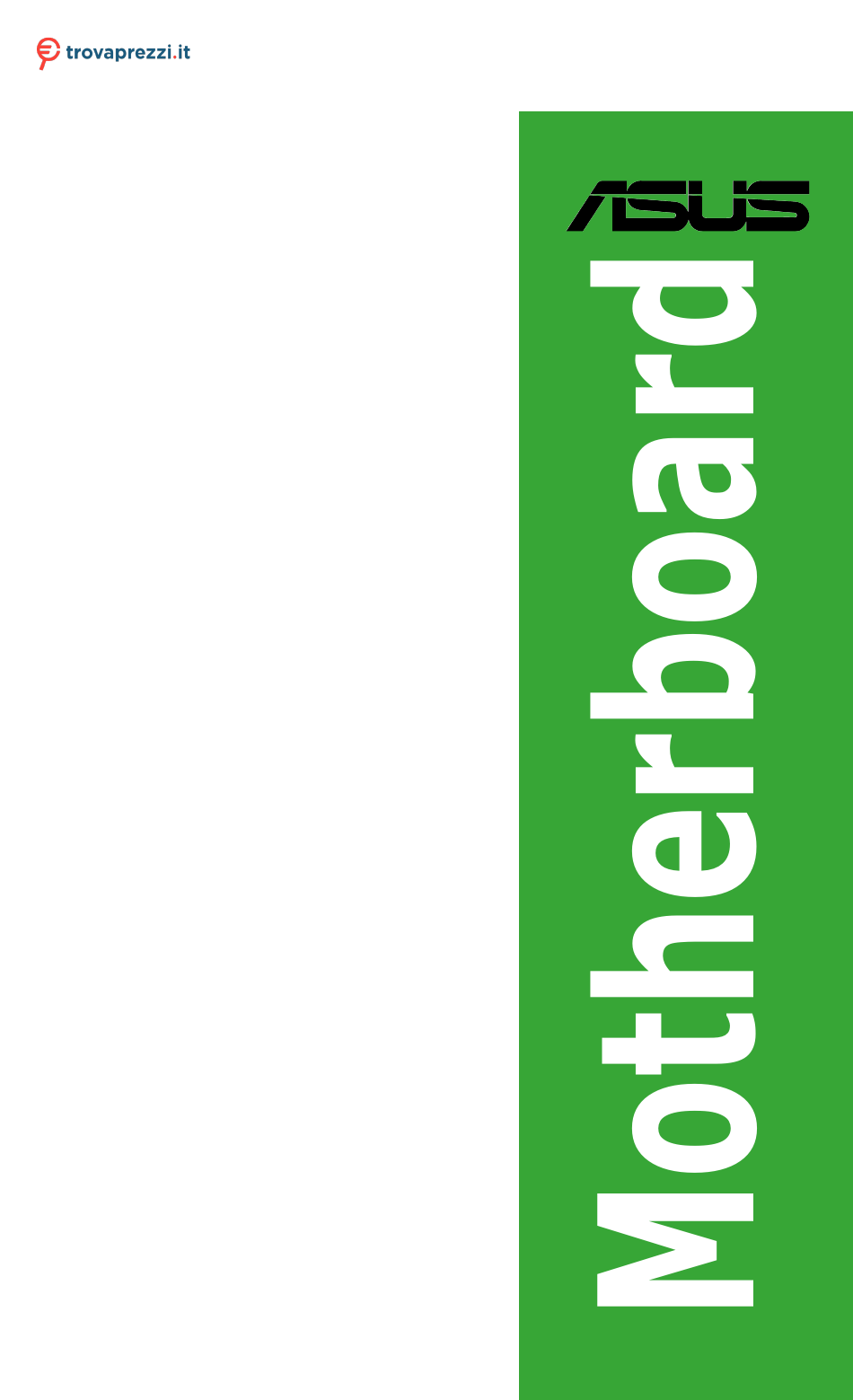

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus PRO A620M- C-CSM o cerca il tuo prodotto tra le migliori offerte di Schede Madri Pro A620M-C...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
BIOS and RAID Support BIOS Setup program ..................2-1 BIOS menu screen..................2-2 Event Log ...................... 2-3 Exit menu ...................... 2-4 RAID configurations ..................2-5 Appendix Notices ........................A-1 Warranty ........................A-5 ASUS contact information ..................A-7 Service and Support ....................A-7... -
Page 4: Safety Information
Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. -
Page 5: About This Guide
Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. -
Page 6: Package Contents
Pro A620M-C specifications summary AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to www.asus.com for CPU support list. Chipset AMD A620 Chipset 2 x DIMM slots, Max. 96GB, DDR5 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) - Page 7 * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. 1 x Realtek 1Gb Ethernet Ethernet ASUS LANGuard Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C ®...
- Page 8 Form Factor 9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm ) • Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. • For more information on downloading and installing drivers and utilities for your...
-
Page 9: Chapter 1: Product Introduction
Chapter 1: Product Introduction Product Introduction Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. -
Page 10: Motherboard Overview
Motherboard overview 22.4cm(8.8in) DIGI HDMI ATX_12V +VRM CPU_FAN SOCKET AM5 KBMS_USB_1_5 USB_12 _U32G1_4 U32G2_C6 256Mb LAN_U32G2_7 BIOS 2280 2260 2242 AUDIO PCIEX1_1 PCIE SATA Super 4.0 X4 Ethernet PCIEX16 A620 PCIE SATA 4.0 X4 SMBUS PCIEX1_2 COM_DEBUG 1083 2280 2260 2242 BATTERY Audio... - Page 11 Additional PCIe bifurcation and M.2 settings for RAID function are also supported when a Hyper M.2 x16 series card is installed. • For full details on the PCIe bifurcation, you may visit the support site at https://www.asus.com/support/FAQ/1037507/. • The Hyper M.2 x16 series card is sold separately. •...
- Page 12 6. M.2 slots (Key M) The M.2 slots allow you to install M.2 devices such as M.2 SSD modules. AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) The M.2 SSD module is purchased separately.
- Page 13 Plug the power cord and turn ON the computer. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data. DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or placing a jumper cap will cause system boot failure! If the steps above do not help, remove the onboard button cell battery and short the two pins again to clear the CMOS RTC RAM data.
- Page 14 17. Speaker header SPEAKER The 4-pin header is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings. 18. SPI TPM header PIN 1 This header supports a Trusted Platform Module (TPM) system with a Serial Peripheral Interface (SPI), allowing you to securely store keys, digital certificates, passwords and data.
- Page 15 1.2.2 Rear panel connectors Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices. Serial port connector (COM). This port connects a modem, or other devices that conform with serial specification. PS/2 Keyboard/Mouse combo port. This port is for a PS/2 keyboard or mouse. USB 2.0 ports.
- Page 16 DisplayPort. This port is for a DisplayPort-compatible device. DVI-D port. This port is for any DVI-D compatible device. DVI-D can not be converted to output from RGB Signal to CRT and is not compatible with DVI-I. USB 3.2 Gen 1 (up to 5Gbps) port. This 9-pin Universal Serial Bus (USB) port connects to a USB 3.2 Gen 1 device.
-
Page 17: Central Processing Unit (Cpu)
CPU into the socket to prevent bending the connectors on the socket and damaging the CPU. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU Apply the Thermal Interface Material to the CPU cooling system and CPU before you install the cooling system, if necessary. -
Page 18: System Memory
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Recommended memory configurations DIMM_A... - Page 19 Installing a DIMM To remove a DIMM Pro A620M-C 1-11...
- Page 20 1-12 Chapter 1: Product Introduction...
-
Page 21: Chapter 2: Bios And Raid Support
Provides automatic update failure detection and recovery • Reduces maintenance frequency and costs The system will automatically activate ASUS Self-Recovering BIOS after reboot from the BIOS update failure. BIOS Setup program Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program. -
Page 22: Bios Menu Screen
The BIOS Setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard. •... -
Page 23: Event Log
Event Log You can access Event Log from the Tool menu. A built-in event log enables easier troubleshooting by capturing useful system information, including: Event Category Description Event Log BIOS updated from xxxx to xxxx Update status, latest version and BIOS Updates update time BIOS update successful... -
Page 24: Exit Menu
Exit menu The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. Load Optimized Defaults This option allows you to load the default values for each of the parameters on the Setup menus. -
Page 25: Raid Configurations
For more information on configuring your RAID sets, please refer to the RAID Configuration Guide which you can find at https://www.asus.com/support, or by scanning the code. RAID definitions Volume provides the ability to link-together storage from one or several disks, regardless of the size of the space on those disks. - Page 26 Chapter 2: BIOS and RAID Support...
-
Page 27: Appendix
Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 28 France sorting and recycling information À DÉPOSER À DÉPOSER EN MAGASIN EN DÉCHÈTERIE Cet appareil et ses accessoires se recyclent Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil ! Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s).
- Page 29 ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.
- Page 30 Français AsusTek Computer Inc. déclare par la présente que cet appareil est conforme aux critères essentiels et autres clauses pertinentes des directives concernées. La déclaration de conformité de l’UE peut être téléchargée à partir du site Internet suivant : www.asus.com/support.
-
Page 31: Warranty
• ASUS offers a voluntary manufacturer’s Commercial Guarantee. • ASUS dragovoljno nudi komercijalno proizvođačko jamstvo. • ASUS reserves the right to interpret the provisions of the ASUS • ASUS zadržava prava na tumačenje odredbi ASUS komercijalnog Commercial Guarantee. jamstva. •... - Page 32 • ASUS tilbyr som produsent en frivillig kommersiell garanti. • Bảo hành thương mại này của ASUS được cung cấp độc lập và ngoài • ASUS forbeholder seg retten til å tolke bestemmelsene i ASUS sin Bảo đảm pháp lý theo luật định và không có cách nào ảnh hưởng đến kommersielle garanti.
-
Page 33: Asus Contact Information
Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112 ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,... - Page 34 Appendix...
