Summary of Contents for AEA Technology Analyst 140-525

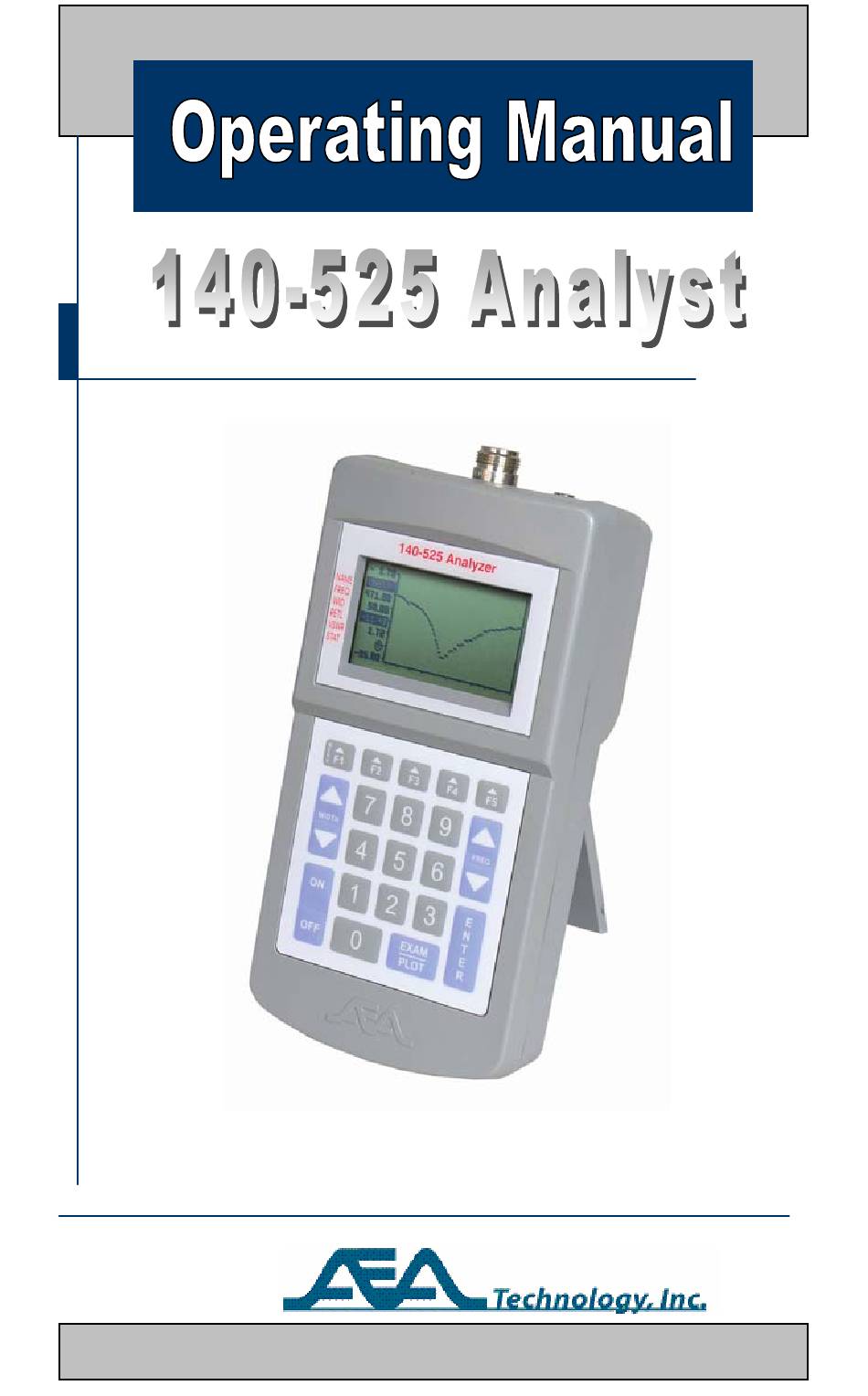

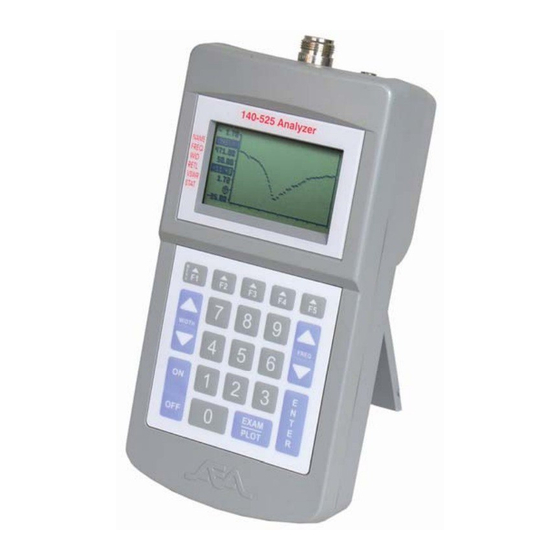

- Page 1 SWR & Return Loss Meter 135-525 MHz Analyzer...
-
Page 2: Proprietary Information
Proprietary Information © 2000-2010 by AEA Technology, Inc. All rights reserved. This document and all software or firmware designed by AEA Technology, Inc. is copyrighted and may not be copied or altered in any way nor may it be marketed, sold or distributed without the expressed written consent of AEA Technology, Inc. - Page 6 Section 1 – Introduction ____________________________________________________________________ Specifications • Frequency Range …. 135MHz to 525 MHz • Default Frequency Step Size ……….. 10KHz • Frequency Resolution 10KHz increments • Display Width ………. 0 to 500MHz • Impedance …………. 50 Ohms • Antenna Connector .. N Type •...
- Page 23 Operating Manual – 140-525 ANALYST Baud Rate Menu 9600 19200 The BAUD menu allows you to select either 9600 or 19200 baud for serial I/O. If you have a slow PC or loaded TSR’s, or you are running software from a DOS window, it may necessary to use the slower baud rate.
-
Page 29: Battery Replacement
The chart below shows the approximate operating time for each type of battery used. Also refer to AEA Technology’s application note “AN150 Using Batteries in AEA Technology Instruments” for more information on each battery type. -
Page 32: Limited Warranty
Remedies for any breach of warranty, either express or implied, are limited to repair, replacement, or return of the instrument, at the option of AEA Technology, Inc. Any warranty is valid for the original purchaser only. All warranties of performance are disclaimed. -
Page 33: Troubleshooting Guide
Section 7 – Troubleshooting Guide _____________________________________________________ SECTION 7 Troubleshooting Guide Symptom Possible Causes Solutions Dim or no display 1. Low batteries 2. Corroded battery Replace/recharge contacts the batteries or 3. Contrast loss use external AC adapter. 2. Clean battery contacts. 3. - Page 34 Operating Manual – 140-525 ANALYST _____________________________________________________ 140-525 Analyst Troubleshooting Guide (continued) Symptom Possible Causes Solutions Readings remain 1. Loose or broken N 1. Tighten the N flat with antenna connector on antenna connector to the connected cable. Analyst’s N 2. Damaged N connector connector or center pin check for broken...
- Page 35 If you need troubleshooting assistance or an RMA number to return the instrument for repair or calibration, please contact us: Tel: 1-800-258-7805 or +1-760-931-8979, Fax: +1-760-931-8969 Email: techsupport@aeatechnology.com, Web: www.aeatechnology.com Address: AEA Technology, Inc. 5933 Sea Lion Pl, Ste 112 Carlsbad, CA 92010 _____________________________________________________...
- Page 39 5933 Sea Lion Pl, Ste 112, Carlsbad, CA 92010 Tel: 1-800-258-7805 or +1-760-931-8979, Fax +1-760-931-8969 www.aeatechnology.com...
