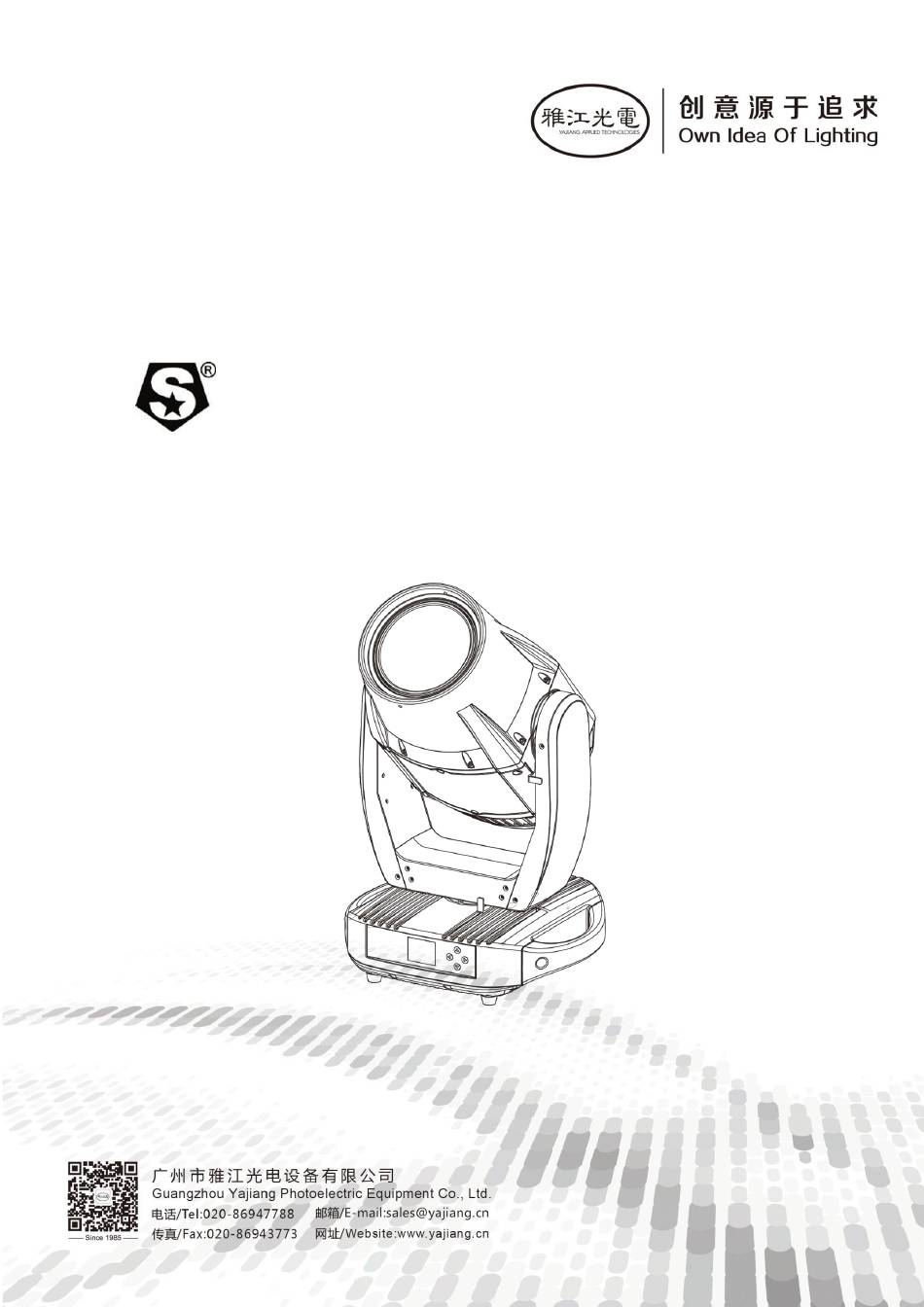

- Page 1 NEPTUNE 550 HYBRID USER MANUAL NEPTUNE 550 HYBRID SS9472 MODEL: SS9472SCM...
-
Page 2: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS9472SCM LED colors 440W LED Angle 3° - 30° Power 560W Control Protocol DMX/RDM/ARTNET/sACN/WEB server/W-DMX（Optional） Voltage Range AC100~240V,50/60Hz Input Current 110V/5A,220V/2.5A Protection IP65 Operation Temperature -20℃~45℃ Dimensions 416x356x670mm Weight 34kg... -
Page 3: Safety Notes
1.2 Safety Notes IMPORTANT This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes ... - Page 4 Keep the product well away from flammable materials Keep all combustible materials (e.g. fabric, wood, paper) at least 10m (40 in.) away from the product. Ensure that there is free and unobstructed airflow around the product. Provide a minimum clearance of 150 mm (6 in.) around fans and air vents.
-
Page 5: Truss Installation
2 INSTALLATION 2.1 MOUNTING Truss installation Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from the product. For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. -
Page 6: Power Connections
2.3 POWER CONNECTIONS This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. AC Plug Connection Wire (U.S. Wire(Europe) Screw Color AC Live Black Brown Yellow/Brass AC Neutral White Blue Silver AC Ground... -
Page 7: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION LEFT：Used to access the menu or to return a previous menu option; RIGHT：Used to select and store the current menu or confirm the current function value or option within a menu; ... - Page 8 OFF (Default) Select OFF blackout without delay BLACKOUT Select ON Blackout delay 3s DIM4 (Default) DIM3 Dimming curves OFF (fast) to DIM4 DIMMER DIM2 (slow)； DIM1 1200Hz(Default) Sets the PWM frequency 2400Hz LED PWM 4000Hz 6000Hz 25000Hz SAVE (Default) Hold after loss of DMX signal DMX ERROR BLACK Blackout after loss of DMX signal...
- Page 9 ONLY XLRDMX ONLY XLR is wire only XLRDMX FIRST XLR FIRST is wire first SIGNAL ONLY WDMX ONLY WDMX is wireless only WDMX FIRST WDMX FIRS is wireless first WDMX TO XLRDMX WDMX TO DMX is wireless to wired EDIT 0-255 TILT 0-255...
- Page 10 LED use time TEMPERATURE LED temperature VERSION Software versions NETWORK Check network parameter 0x388Axxxxxxxx Check fixture's ID LABEL NEPTUNE 550 HYBRID Check fixture's LABEL MEMORY IC Memory IC ANGLESENSOR Angle Sensor PAN SENSOR Pan Sensor PAN ENCODER Pan Encoder PAN DRIVEIC...
- Page 11 SERVICE ±127 Pan position fine adjustment TILT ±127 Tilt position fine adjustment CMY-C ±127 CMY-C position fine adjustment CMY-M ±127 CMY-M position fine adjustment **** CMY-Y ±127 CMY-Y position fine adjustment COLOR ±127 Color position fine adjustment ROTA.GOBO ±127 ROTA.GOBO position fine adjustment GOBO.ROTA ±127...
-
Page 12: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL BASIC STANDARD Extend Value Function （22CH) （26CH) (30CH) CH.1 CH.1 CH.1 000-255 PAN 0-540° CH.2 CH.2 000-255 PAN FINE CH.2 CH.3 CH.3 000-255 TILT 0-270° CH.4 CH.4 000-255 TILT FINE CH.3 CH.5 CH.5 000-255 PT Speed... - Page 13 032-039 COLOR 4 040-047 COLOR 5 048-055 COLOR 6 056-063 COLOR 7 064-191 COLOR WHEEL1 0-360° 192-222 COLOR WHEEL POSITIVE RAINBOW EFFECT(SPEED 100%->1) 223-224 STOP 225-255 COLOR WHEEL REVERSE RAINBOW EFFECT(SPEED 1->100%) CH.12 000-255 COLOR WHELL FINE ROTATING GOBO 000-010 ROTATING WHITE 011-018 ROTATING GOBO 1...
- Page 14 011-018 FIXED GOBO 1 019-026 FIXED GOBO 2 027-034 FIXED GOBO 3 035-042 FIXED GOBO 4 043-050 FIXED GOBO 5 051-058 FIXED GOBO 6 059-066 FIXED GOBO 7 FIXED GOBO 1 SHAKE (SPEED 1 —> 100%) 067-074 FIXED GOBO 2 SHAKE (SPEED 1 —> 100%) 075-082 FIXED GOBO 3 SHAKE (SPEED 1 —>...
- Page 15 13-39 5 METER 40-66 7 METER 67-93 9 METER 94-120 11 METER 121-147 13 METER 148-174 15 METER 175-201 17 METER 202-228 19 METER 229-255 21 METER CH.26 0-255 AUTO FOCUS FINE CH.20 CH.23 CH.27 0-255 DIMMER CH.24 CH.28 0-255 DIMMER FINE STROBE NO FUNCTION...
- Page 16 211-220 XY RESET 221-230 COLOR SYSTEM RESET 231-240 FOCUS\ZOOM RESET 241-255 FRAMING RESET...
