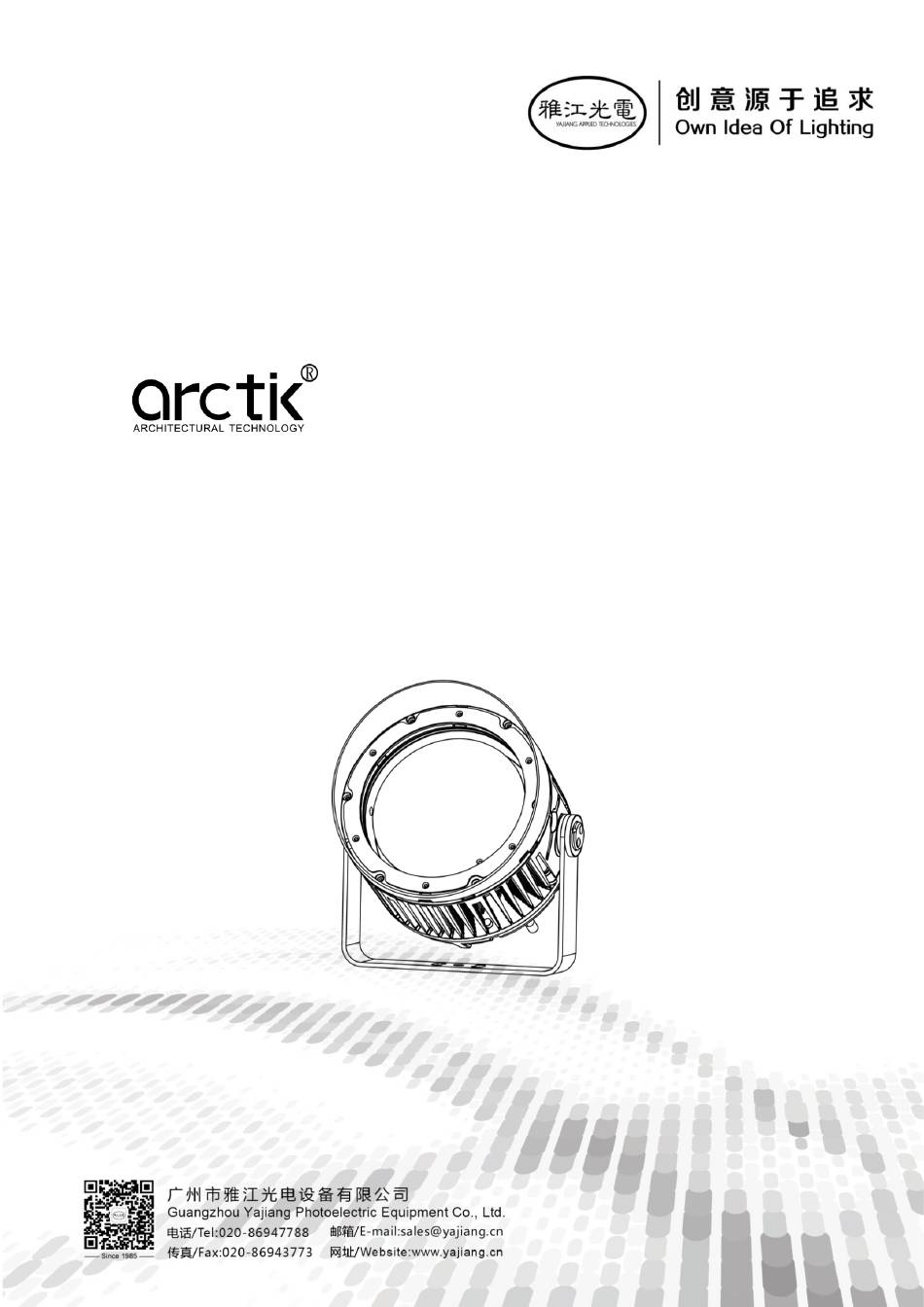

- Page 1 PIXI PRO USER MANUAL PIXI PRO AM1441 MODEL: AM1441XCT/XAT/XWT/XNT/XLT...
- Page 2 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type AM1441XCT/XAT/XWT/XNT/XLT Power 120W Voltage Range AC100~240V,50/60Hz Protection IP67 Operation Temperature -20℃~45℃ Dimensions 284x250x283mm Weight 8.4kg DIMENSIONS...
- Page 3 1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes ...
- Page 4 2 INSTALLATION 2.1 MOUNTING HANGING ． ． ． ． ． ． ． You could place the light on the floor. Please make sure the surface is plane and the reliability of the floor is sufficient. Bolt a rigging clamp securely to the mounting yoke. The bolts used must be M12, grade 8.8 steel minimum, and fastened with a self-locking nut.
- Page 5 2.3 Data network requirements Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. ...
- Page 6 3 USING A DMX512 CONTROLLER 3.1 DMX CONTROL Note: This product has seven DMX512 channel configurations：ARC1,ARC1+D,ARC2,ARC2+D, SOLID, ARC FULL,SPECIAL2. DMX Modes SOLID ARC1 ARC1+D ARC2 ARC2+D CHANNEL VALUE FUNCTION 0-255 ALL LED DIMMER DIMMER 0-255 GREEN GREEN 0-255 BLUE GREEN BLUE GREEN WHITE/AMBER/...
- Page 7 115-130 5000-5600K Linear transition 5600K 130-145 5600-6000K Linear transition 6000K 145-160 6000-6500K Linear transition 6500K 160-175 6500-7000K Linear transition 7000K 175-190 7000-8000K Linear transition 8000K 190-205 8000-10000K Linear transition 205-255 10000K NO FUNCTION 10-255 1-25Hz CONTROL（EXECUTE AFTER 3 SECONDS） 000-010 NO FUNCTION 011-100 RESERVED...
- Page 8 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION 11-15 RESERVE Loving Amber 0.407 0.321 COLOR 1 16-20 Light Salmon 0.499 0.321 COLOR 2 21-25 Scarlet 0.561 0.296 COLOR 3 26-30 L164 Flame Red 0.659 0.302 31-35 RESERVE Easy White 0.389 0.344 36-40...
