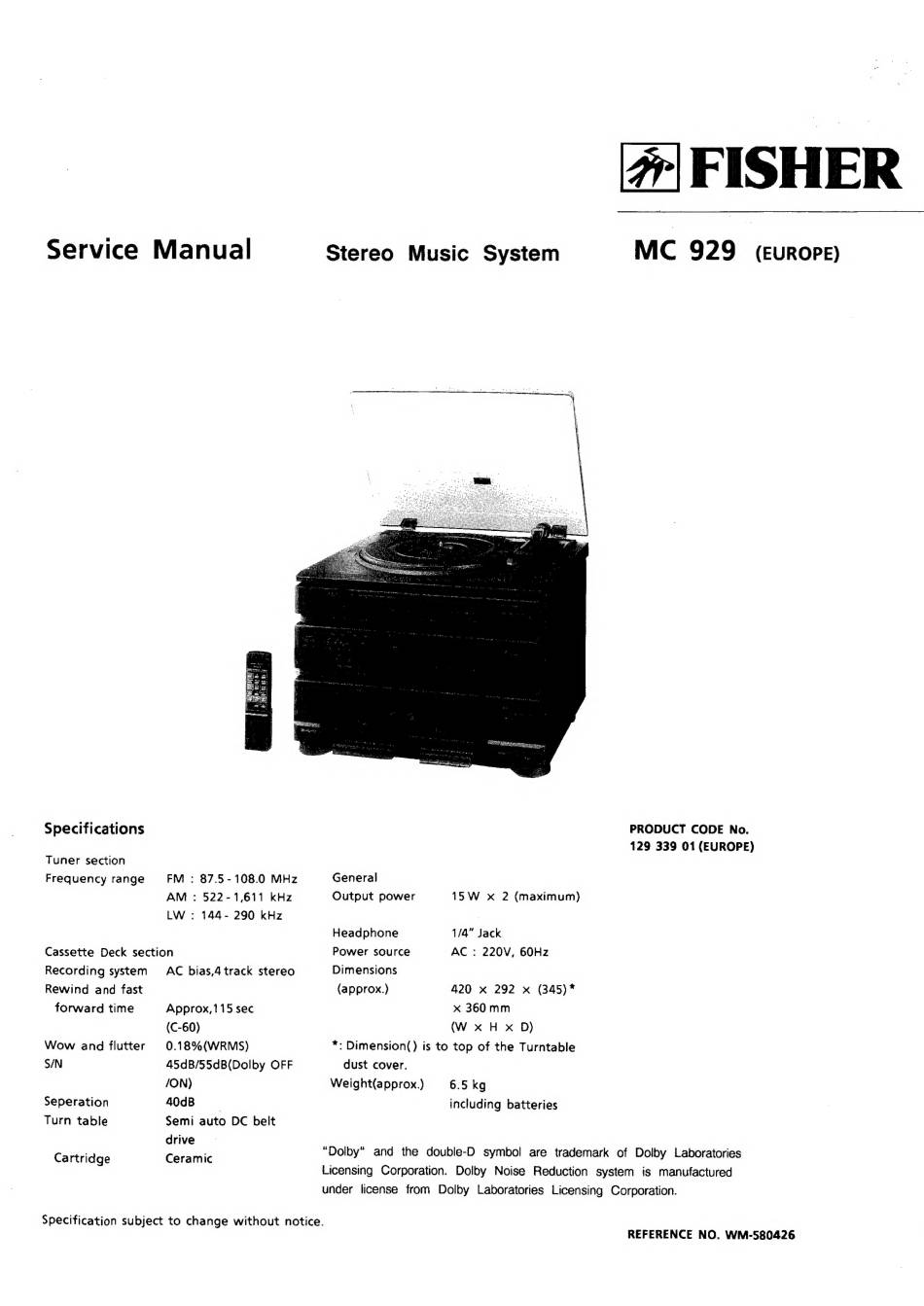

Fisher MC 929 Service Manual

Service Manual
Specifications
Tuner section
Frequency range FM: 87.5-108.0 MHz
AM : 522-1,611 kHz
LW : 144- 290 kHz
Cassette Deck section
Recording system AC bias,4 track stereo
Rewind and fast
forward time Approx,115 sec
(C-60)
Wow and flutter 0.18% (WRMS)
S/N 45dB/55dB(Dolby OFF
JON)
Seperation 40dB |
Turn table Semi auto DC belt
drive
Cartridge Ceramic
FISHER

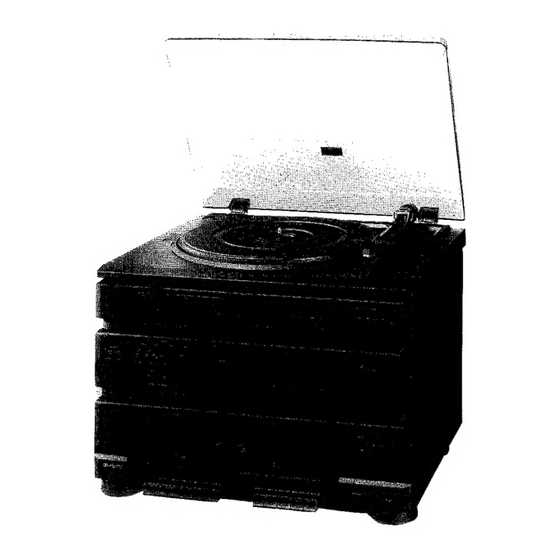

Stereo Music System MC 929 (euROPE)
General
Output power
Headphone
Power source
Dimensions
(approx.)
PRODUCT CODE No.
129 339 01 (EUROPE)
1SW x 2 (maximum)
1/4" Jack
AC : 220V, 60Hz
420 x 292 x (345)*
x 360 mm
(Wx H x D)
*: Dimension() is to top of the Turntable
dust cover.
Weight(approx.)
6.5 kg
including batteries
"Dolby" and the double-D symbol are trademark of Dolby Laboratories
Licensing Corporation. Dolby Noise Reduction system is manufactured
under license from Dolby Laboratories Licensing Corporation.
Specification subject to change without notice.
REFERENCE NO. WM-580426
