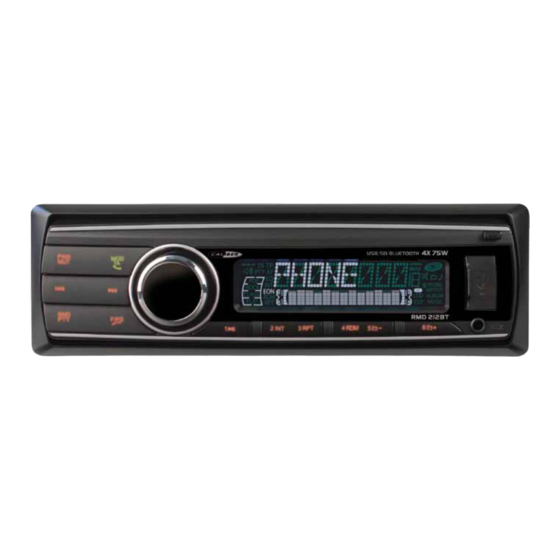

Summary of Contents for Caliber RMD 212BT
-
Page 2: Table Of Contents
Contents Warnings Before Installation...........3-5 Before You Install...............6 Installation (DIN Front Mount).............7 Installation (Vehicle's Brackets)..........8 Wiring Connections...............9 Control of the Unit..............10 Bluetooth Operation..............11 Basic Operation..............1 Radio Operation..............13 RDS Operation..............14 USB/SD Operation..............15 Simple Troubleshooting Guide..........16 Specifications................16 Welcome! Thank you for purchasing this high-technology car stereo with USB, SD/MMC control. -
Page 3: Warnings Before Installation
Warnings Before Installation Important Warnings to Take Note of BEFORE Com- mencing Installation Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take The Time To Read The Installation Notes Carefully. To Validate The Warranty Please Ensure That The Unit Is Installed By A Professional, VAT Registered Car Au- dio Installation Company. - Page 4 Warnings Before Installation and the speakers. Check the condition of your speakers care- fully- connecting this unit to old or degraded speakers may re- sult in a fault which will damage the audio IC and invalidate the warranty. • If this unit is installed in a vehicle that does not have an ACC (accessory) position on the ignition switch, the red lead of the unit should be connected to a terminal coupled with ignition switch ON/Off operations.
- Page 5 Warnings Before Installation for details on connecting the power amp and other units, then make the connections correctly. • Do not block any vents or heater panels. Blocking them will cause heat to build up and may result in fire. •...
-
Page 6: Before You Install
Before You Install Automotive audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed. -
Page 7: Installation (Din Front Mount)
Installation WARNING! Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. NOTE: Mark the polarity of the existing speaker wires before disconnecting battery. NOTE: Remove the two transport screws from the top of the unit before installing. -
Page 8: Installation (Vehicle's Brackets)
Installation NOTE: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket. -
Page 9: Wiring Connections
Wiring Connections Make sure that you have a good chassis ground. Good ground connections will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehi- cle's metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection. -
Page 10: Control Of The Unit
Controls of the Unit 1. Power on / off / Mute 11. Number / Introduction . Mode Select / TA / Answer Button 1. Number 3 / Repeat 3. Sound Select / Volume +/- 13. Number 4 / Random 4. -
Page 11: Bluetooth Operation
Bluetooth Operation 1. Pairing “ANSWER” button is pressed. Rotate Press and hold the BAND/ID3/TEL the volume knob during ringing or button until the word “BT PAIR” blinks conversation to adjust the respective on the display waiting for the blue- volume level. tooth device to connect. -
Page 12: Basic Operation
Basic Operation 1. Tuning the unit On / Off the front & rear speakers. When “F=R” Press POWER button to turn the unit is shown on the screen, it indicates on. Press again to turn the unit off. that the fader is 0. 2. -
Page 13: Radio Operation
Radio Operation 1. Choose Radio Band B. Scan Saved Stations Press the BND Button anytime to ac- Press the F/PS button once to per- cess the radio function. form the scanning functions. In FM The unit comes with five bands- three mode, press the F/PS button and FM Bands (FM1, FM, and FM3) and the stations in that FM band will... -
Page 14: Rds Operation
RDS Operation 1. AF-ALTERNATIVE FREQUENCY 4. MASK DPI - MASK ALL Press and hold the volume button so Press the sound select button for that the unit will choose the strongest seconds, the display will show TA FM signal for the selected station, so SEEK. -
Page 15: Usb/Sd Operation
USB/SD Operation 1. Play MP3 / WMA from USB/SD is operating. Press “3 RPT” button to cancel. Plug the USB or SD card into the USB/SD port. The MP3 and WMA files in the USB or SD card will be 8. -
Page 16: Simple Troubleshooting Guide
Simple Troubleshooting Guide PROBLEM CAUSE/SOLUTION Check wiring connections. Check and make sure the fuse is not No Power blown. Replace with the proper rating/size fuse. Press the RESET Button . Some errors occur in the LCD or nothing functions when buttons are pressed.
