SPECIFICATIONS

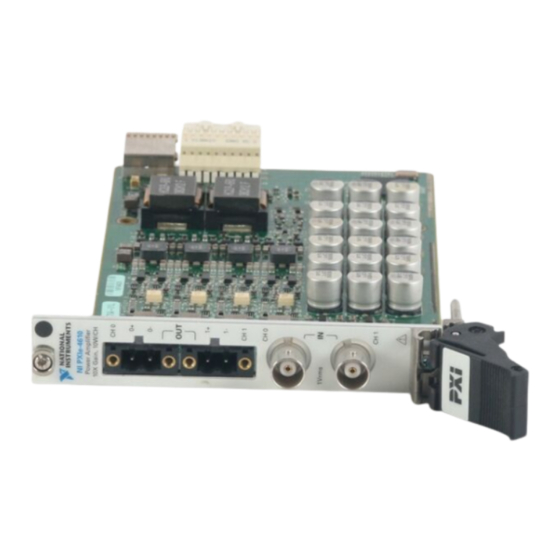

NI PXIe-4610
Power Amplifier
This document lists specifications for the NI PXIe-4610 Power Amplifier. These specifications
are typical at 25 ºC unless otherwise stated. The operating range for the NI PXIe-4610 is 0 ºC to
55 ºC. All accuracies listed are valid for up to two years from the time the device was externally
calibrated. All specifications are subject to change without notice. Visit
the most current specifications and product documentation.
Caution
product. The inputs and outputs of this device are not protected for electromagnetic
interference. As a result, this device may experience performance degradation when
connected cables are routed in an environment with electromagnetic interference. To
limit radiated emissions and to ensure that this device functions within specifications
in its operational electromagnetic environment, take precautions when designing,
selecting, and installing measurement cables.
Power Amplifier
Number of power amplifier channels ............... 2
Input Characteristics
Input configuration ........................................... Differential
Input coupling................................................... AC
Signal Range
V
pk
±1.414
Electromagnetic interference can adversely affect the accuracy of this
Input Full-Scale Range
V
rms
1.0
ni.com/manuals
dBV
0.0
for
Advertisement
Table of Contents
Related Manuals for National Instruments PXIe-4610
Summary of Contents for National Instruments PXIe-4610
- Page 1 This document lists specifications for the NI PXIe-4610 Power Amplifier. These specifications are typical at 25 ºC unless otherwise stated. The operating range for the NI PXIe-4610 is 0 ºC to 55 ºC. All accuracies listed are valid for up to two years from the time the device was externally calibrated.
-
Page 2: Input Impedance
Input Frequency (Hz) Input Impedance Input Terminals Input Impedance Between positive input (+) and chassis ground 10 kΩ || 100 pF Between negative input (-) and chassis ground 10 kΩ || 100 pF 2 | ni.com | NI PXIe-4610 Specifications... -
Page 3: Overvoltage Protection
Output configuration......... Differential Output coupling ..........DC Signal Range Output Voltage Full-Scale Range ±14.14 Output voltage slew rate ........±15 V/μs Output Current Drive ±2.235 1.581 Output current slew rate ........±0.5 A/μs NI PXIe-4610 Specifications | © National Instruments | 3... -
Page 4: Output Impedance
Protection Output Terminals Short-Circuit Duration Overvoltage (V Positive output (+) to chassis Indefinite ±42.4 ground. Negative output (-) to Indefinite ±42.4 chassis ground. Between positive (+) and Indefinite ±42.4 negative (-) outputs. 4 | ni.com | NI PXIe-4610 Specifications... -
Page 5: Dynamic Characteristics
Offset drift ............50 µV/ºC Dynamic Characteristics Input AC Coupling AC Coupling Cutoff Frequency (Hz) Gain (dB) Typ, 25 °C ±5 °C Max, 0 °C to 55 °C -0.1 3.78 -3.0 1.13 NI PXIe-4610 Specifications | © National Instruments | 5... - Page 6 Figure 2. Magnitude Response of AC Coupling Circuit (1 Hz to 1 kHz) 1000 Input Frequency (Hz) Figure 3. Phase Response of AC Coupling Circuit (1 Hz to 1kHz) –20 1000 Input Frequency (Hz) 6 | ni.com | NI PXIe-4610 Specifications...
- Page 7 4 Ω 0.030 0.035 Flatness peak-to-peak, relative to 1 kHz. † Non-inductive load. Figure 4. Low-Frequency Flatness (20 Hz to 1 kHz) 0.001 0.000 –0.001 –0.002 –0.003 –0.004 1000 Input Frequency (Hz) NI PXIe-4610 Specifications | © National Instruments | 7...
- Page 8 0.020 0.000 –0.020 –0.040 –0.060 –0.080 8 Ω + 0.10 μH 8 Ω + 1.00 μH –0.100 8 Ω + 10.0 μH 8 Ω + 100 μH –0.120 1000 10000 Input Frequency (Hz) 8 | ni.com | NI PXIe-4610 Specifications...
-
Page 9: Output Noise
Typ, 25 °C ±5 °C Max, 0 °C to 55 °C Evaluation BW = 20 Hz to 20 kHz. Signal source impedance ≤50 Ω. Output Noise Density Spectral noise density........142 nV/ , 1 kHz NI PXIe-4610 Specifications | © National Instruments | 9... - Page 10 Acquisition: 10 RMS averages of 88,000 samples acquired at 88 kS/s using a 7-term Blackman-Harris window. Figure 8. FFT of -1.0 dBFS, 1 kHz, No Load –20 –40 –60 –80 –100 –120 –140 –160 10000 20000 30000 40000 Frequency (Hz) 10 | ni.com | NI PXIe-4610 Specifications...
- Page 11 30000 40000 Frequency (Hz) Figure 10. FFT of -4.4 dBFS, 1 kHz, 4 Ω Load, 9 W –20 –40 –60 –80 –100 –120 –140 –160 10000 20000 30000 40000 Frequency (Hz) NI PXIe-4610 Specifications | © National Instruments | 11...
- Page 12 Figure 11. Output Total Harmonic Distortion (THD) –60 No Load, –1.0 dBFS 8 Ω Load, –1.0 dBFS –70 4 Ω Load, –4.4 dBFS –80 –90 –100 –110 –120 –130 –140 1000 10000 Input Frequency (Hz) 12 | ni.com | NI PXIe-4610 Specifications...
-
Page 13: General Specifications
Do not use the NI PXIe-4610 for connections to signals or for Caution measurements within Categories II, III, or IV. The protection provided by the NI PXIe-4610 can be impaired if it is used Caution in a manner not described in this document. -
Page 14: Operating Environment
Operating ..........5 Hz to 500 Hz, 0.3 g Nonoperating ..........5 Hz to 500 Hz, 2.4 g (Tested in accordance with IEC-60068-2-64. Nonoperating test profile exceeds the requirements of MIL-PRF-28800F, Class 3.) Calibration External calibration interval......2 years Warm-up time ...........15 minutes 14 | ni.com | NI PXIe-4610 Specifications... -
Page 15: Electromagnetic Compatibility
For EMC declarations and certifications, and additional information, refer to Note Online Product Certification section. CE Compliance This product meets the essential requirements of applicable European Directives as follows: • 2006/95/EC; Low-Voltage Directive (safety) • 2004/108/EC; Electromagnetic Compatibility Directive (EMC) NI PXIe-4610 Specifications | © National Instruments | 15... -
Page 16: Online Product Certification
At the end of the product life cycle, all products must be sent to EU Customers a WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/... -
Page 17: Worldwide Support And Services
NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. © 2013 National Instruments. All rights reserved.
