Smart Lock wireless I/F unit(Z-Wave™/BLE) CVBT-ZW01
User Manual Version1.1
1. Introduction
The Smart Lock wireless I/F unit(Z-Wave/BLE) is device that can remotely lock / unlock and
check status the smart lock made by MIWA-LOCK. This product is connected to the smart lock
via Bluetooth low energy (BLE).
This product can be operated in any Z-Wave network with other Z-Wave certified devices from
other manufacturers.
All mains operated nodes within the network will act as repeaters regardless of vendor to
increase reliability of the network.

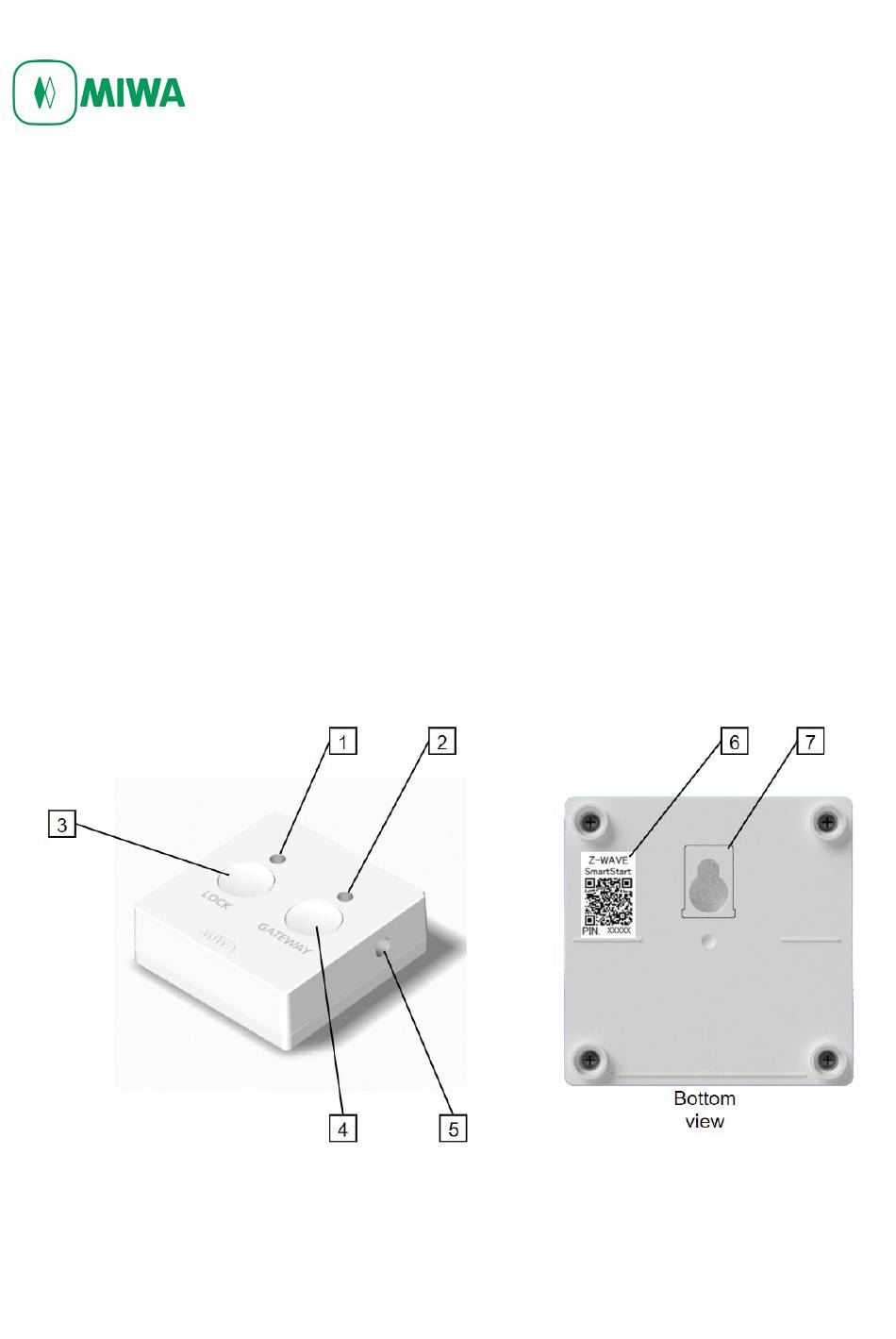

2. Part names and functions
□ 1 LOCK connection status lamp
□ 2 GATEWAY connection status lamp
□ 3 LOCK connection button
1 / 26

Advertisement

loading
Need help?

Need help?

Do you have a question about the CVBT-ZW01 and is the answer not in the manual?

Questions and answers

Related Manuals for MIWA CVBT-ZW01

Summary of Contents for MIWA CVBT-ZW01

  • Page 1 1. Introduction The Smart Lock wireless I/F unit(Z-Wave/BLE) is device that can remotely lock / unlock and check status the smart lock made by MIWA-LOCK. This product is connected to the smart lock via Bluetooth low energy (BLE). This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers.

  • Page 2: Specifications

    External dimensions (Height x Width x Depth): Approx. 23.5mm x 60mm x 60mm * Not including AC adapter Wireless communications: Bluetooth Low Energy, Z-Wave Supported Smart Locks: DTFL2B Card Lock (MIWA LOCK) DTRS Raccess Electric Thumb-Turn (MIWA LOCK) 2 / 26...
  • Page 3 4. Settings After installing this I/F unit, be sure to update the firmware. 4.1. Connecting power source Insert the plug of the supplied AC adapter to the DC Input as far as will go. Connect the AC adapter into an electrical outlet. (The power supply is AC 100V). Two lamps will blink red intermittently.
  • Page 4 4.4. Inclusion For inclusion to Z-Wave network, first set your designated Z-Wave Gateway in inclusion mode. This product supports Z-Wave SmartStart. If the Z-Wave Gateway also supports it, you can install easily by using the QR code on the back of the I/F unit. Use the following method to start searching for Z-Wave gateway.
  • Page 5 5. Z-Wave Specifications 5.1. Supported Command Class Application Command Class  Basic Command Class v2  Door Lock Command Class v4  Door Lock Logging Command Class v1  User Code Command Class v2  Configuration Command Class v4  Notification Command Class v3-8 ...
  • Page 6 5.2. Basic Basic Command Class can be used instead of Door Lock Command Class. In this case, each command is changed such as following: Basic Set -> Door Lock Operation Set Basic Get -> Door Lock Operation Get Basic Report -> Door Lock Operation Report 5.3.
  • Page 7 5.4. Door Lock Logging Event Type: Event Type Description Lock Command: Keypad access code verified lock command Unlock Command: Keypad access code verified unlock command Lock Command: Keypad lock button pressed Lock Command: Keypad access code out of schedule Unlock Command: Keypad access code out of schedule Keypad illegal access code entered Key or latch operation locked (manual) Key or latch operation unlocked (manual)

  • Page 8: Application Status

    5.7. Multilevel Sensor This product is using this command class to get RSSI values of Z-Wave. 5.8. Application Status See Z-Wave documentation. 5.9. Association & Association Group Information Group 1 is the Lifeline group. It can contain up to 5 nodes. The Lifeline group on this lock is used to report the following commands.
  • Page 9 5.13. Manufacturer Specific Manufacturer ID: 0x0435 (MIWA LOCK)  Product Type: 0x0001  Product ID: 0x0001  5.14. Multi Channel Association See Z-Wave documentation. 5.15. Version Z Wave Library Type = 0x03 (ZW_LIB_SLAVE_ENHANCED)  Z Wave Protocol Version = 0x07 (SDK v 7.15) ...

  • Page 10: Power Level

    5.20. Security(S2) See Z-Wave documentation. This product support S2_ACCESS security class. An S2 Security Enabled Controller is required to operate the device. 5.21. Supervision See Z-Wave documentation. 5.22. Transport Service See Z-Wave documentation. 5.23. Powerlevel Powerlevel Command Class can be used under inclusion to test signal strength from the controller and to the device.

  • Page 11: Configuration Parameters

    6. Configuration Parameters Buzzer volume:  This parameter can be changed buzzer volume of connected smart lock. This default setting is different by connected lock unit. Parameter number Size Range Default 0x00 – 0x02 When connected DTFL2B lock: 0x01 When connected DTRS lock: 0x02 Count of incorrect PIN: ...
  • Page 12 Period of invalid PIN entries:  This parameter is set the time of Mischief-prevention state in smart lock. Mischief- prevention means an operation of card / PIN pad is invalid if set number of counts is over. The value indicates the time it takes for Mischief-prevention state to be released. This default setting is different by connected lock unit.
  • Page 13 13 / 26...
  • Page 14 Remote lock-out:  This parameter is read only. Parameter number Size Range Default 0x0000: disabled 0x003C 0x003C: enabled Remote registration:  This parameter is read only. Parameter number Size Range Default 0x0000: disabled 0x003C 0x003C: enabled Remote Reset:  This parameter can be used by Z-Wave to reset lock unit. Use the “Configuration Set Command”...
  • Page 15 Battery of primary lock:  This parameter can be used to get the remaining battery capacities in primary lock unit. e.g.) 6.000 V (6000 -> 0x1770) Parameter number Size Range Default 0x0000 – 0xFFFF 0xFFFF [mV] Battery of secondary lock: ...
  • Page 16 RFID maximum number:  This parameter can be used to get RFID maximum number: Parameter number Size Range Default 0x0000 – 0xFFFF 0x0000 Register RFID address:  This parameter can be used to register RFID address: Parameter number Size Range Default 0x0000 –...
  • Page 17 RFID4 for registration:  This parameter can be used to register RFID on 14th to 18th bytes: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF RFID operation for registration:  This parameter can be used to register RFID operation type: Parameter number Size Range...
  • Page 18 18 / 26...
  • Page 19 RFID1 for getting:  This parameter can be used to get RFID on 2nd to 5th bytes: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF RFID2 for getting:  This parameter can be used to get RFID on 6th to 9th bytes: Parameter number Size Range...
  • Page 20 RFID status:  This parameter can be used to get RFID status: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF 1st byte: Status 0x00: Disable 0x01: Enable 0xFF: Unregistered 2nd byte: RFID length 3rd byte: Fixed value 0x00 4th byte: RFID on 1st byte PIN maximum number: ...
  • Page 21 PIN1 for registration:  This parameter can be used to register PIN on 1st to 4th bytes: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF PIN2 for registration:  This parameter can be used to register PIN on 5th to 8th bytes: Parameter number Size Range...
  • Page 22 PIN operation for registration:  This parameter can be used to register PIN operation type: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF 1st byte: Status 0x00: Disable 0x01: Enable 0xFF: Delete 2nd byte: PIN length 3rd byte: Operation type 0x00: new 0x01: overwrite...
  • Page 23 PIN1 for getting:  This parameter can be used to get PIN on 2nd to 5th bytes: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF PIN2 for getting:  This parameter can be used to get PIN on 6th to 9th bytes: Parameter number Size Range...
  • Page 24 PIN status:  This parameter can be used to get PIN status: Parameter number Size Range Default 0x00000000 – 0x00000000 0xFFFFFFFF 1st byte: Status 0x00: Disable 0x01: Enable 0xFF: Unregistered 2nd byte: PIN length 3rd byte: Fixed value 0x00 4th byte: Fixed value 0x40 24 / 26...

  • Page 25: Notification Parameters

    7. Notification Parameters This Notification parameters are specific for the applications. COMMAND_CLASS_NOTIFICATION (V8) Notification Event State/Event Parameter Description Type value Access 0x00 Notification value for the State idle Control(0x06) state variable to go to idle 0x01 Manual lock operation (Thumb turn, Key, RFID) 0x02 Manual unlock operation 0x03...
